97 Photos
Cat D8L Crawler Dozer
Located
Oakridge, OR
Oakridge, OR
Usage
13,589 hrs
13,589 hrs
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15465758
In yard
No
Features
Enclosed Cab, 138 in Wide Semi-U Blade w/ Single Tilt, Carco 120 Winch, 24 in Single Grouser Track Shoes

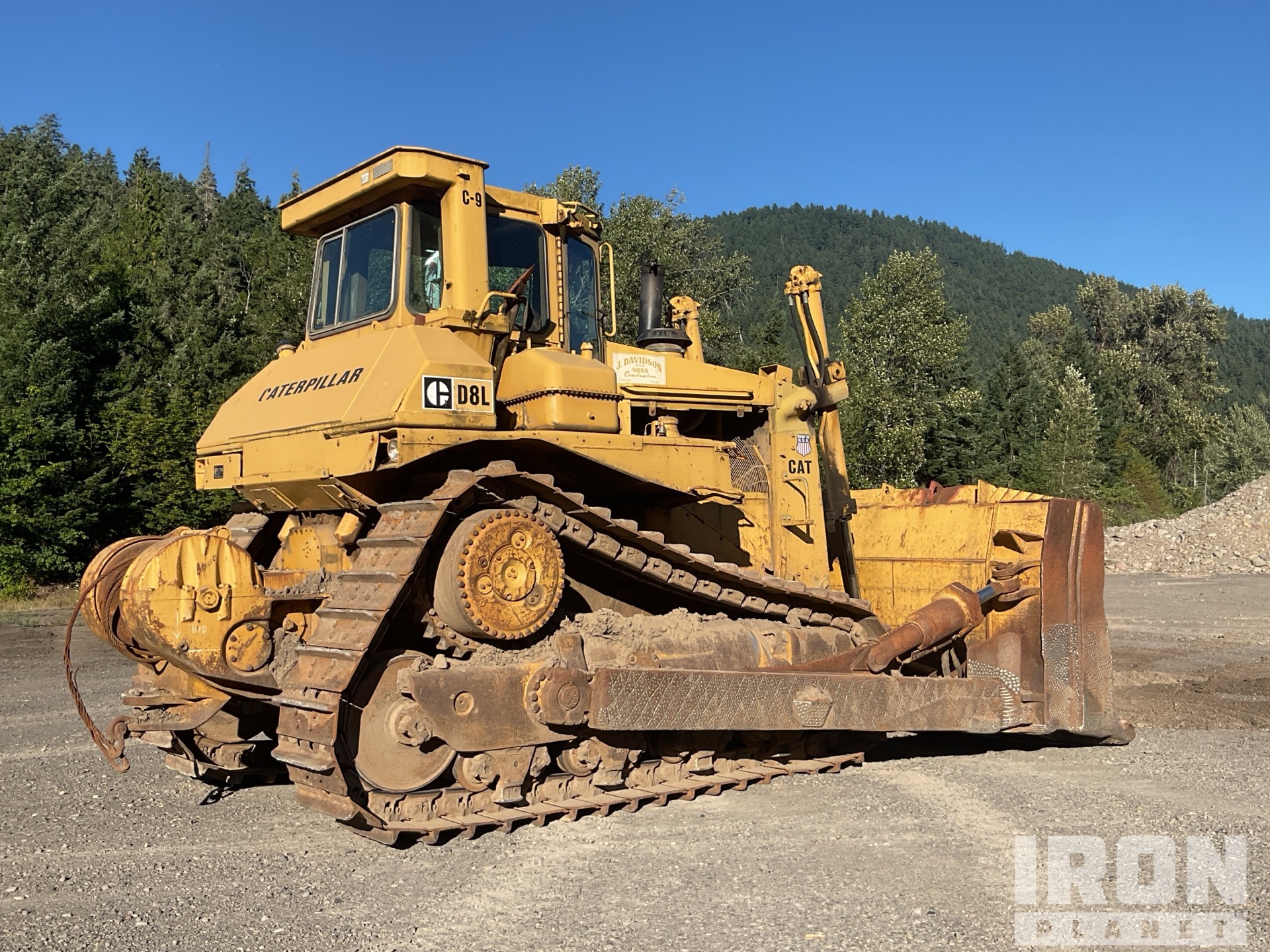

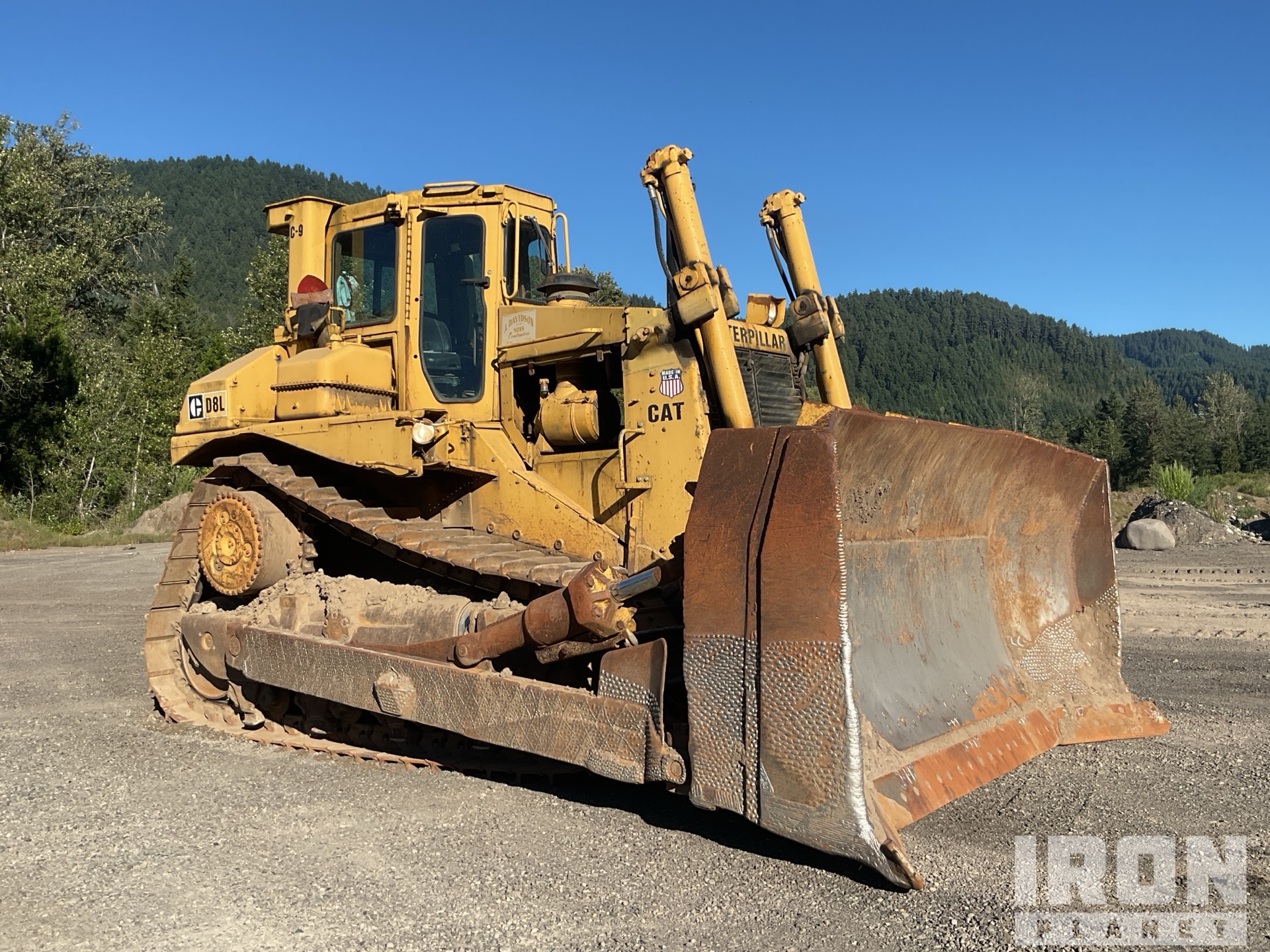

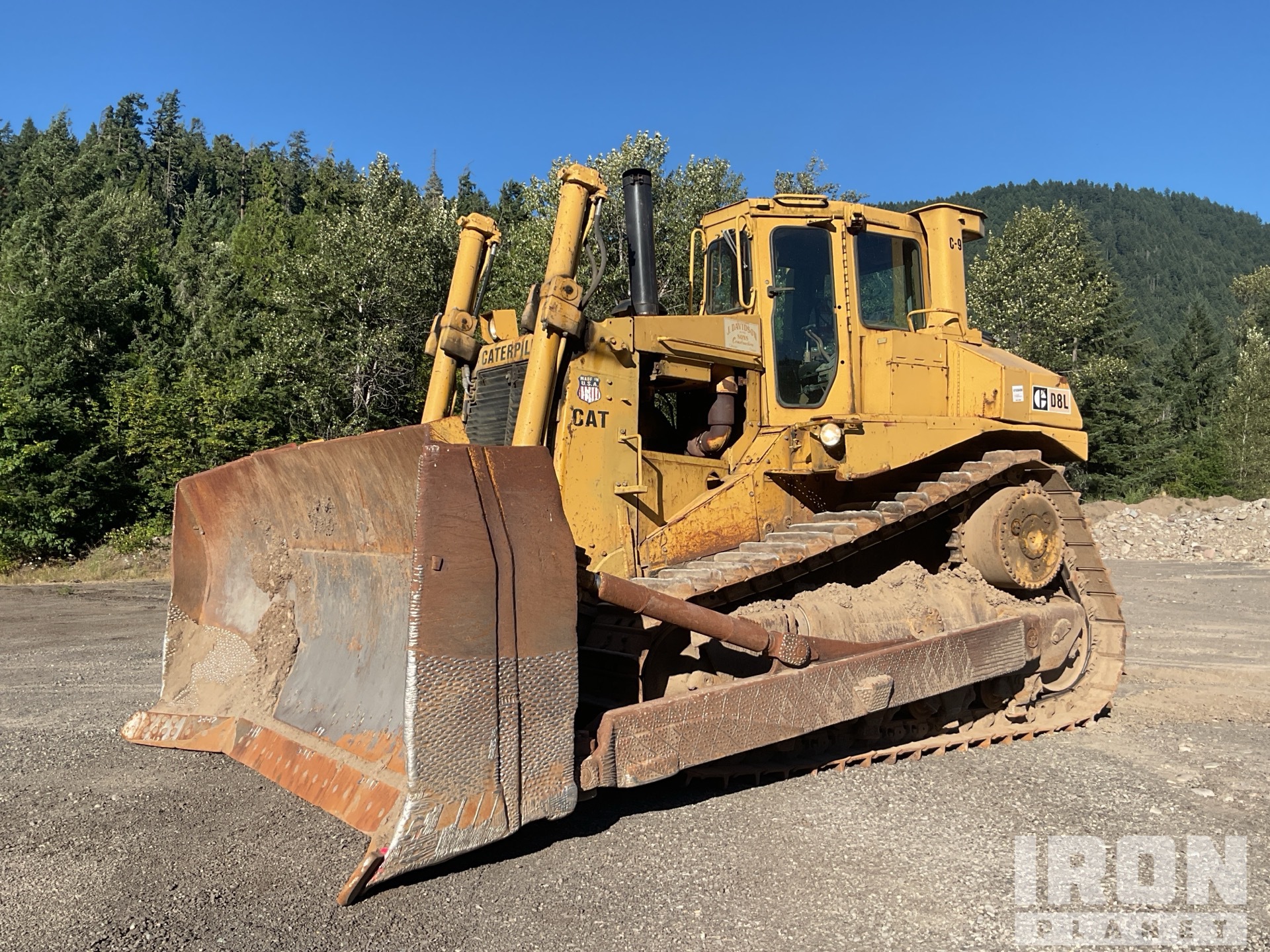

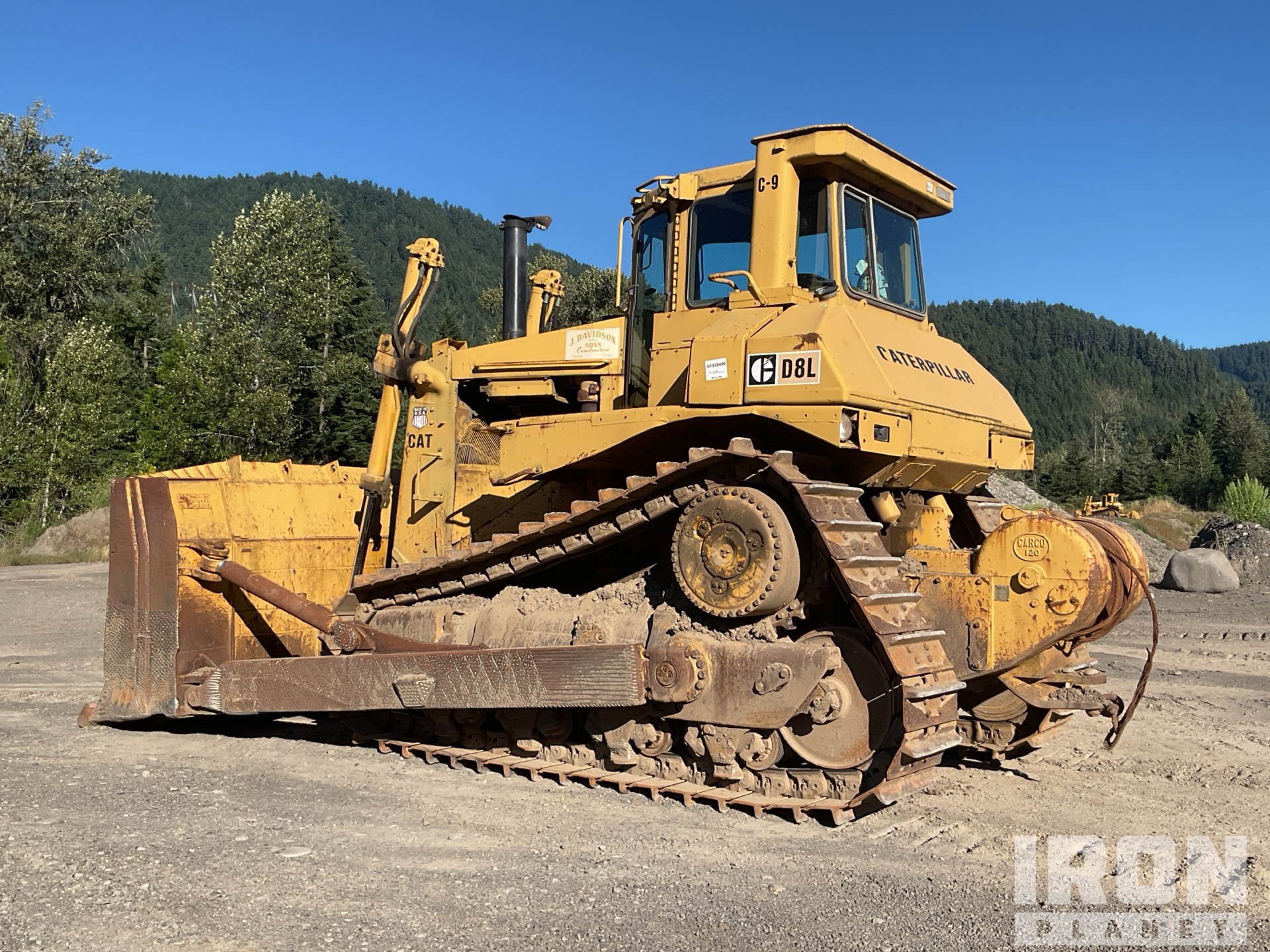

General Appearance
Serial Number / VIN
No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
CE Mark
No CE mark found
Hour Meter / Odometer
13589 hrs, are on the replacement meter and the actual hours on the unit are unknown.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
No visible damage
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Service Brakes
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Some with braid exposure
Blade Lift Cylinders
Seepage on right cylinder
Blade Tilt Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Blade Cutting Edge Condition
Reversible-not turned
Winch
Operational
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Heavy movement, Shims remaining
Tilt Linkage Pins and Bushings
Heavy movement
Blade Trunnions/bushings
Heavy movement
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Specialty
Undercarriage
Pivot Shafts
Equalizer Bar Pivot Points
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
79 mm, Grousers have been previously hardfaced and are worn somewhat irregular.
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Front Idler
Left Rear Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
72 mm, Grousers have been previously hardfaced and are worn somewhat irregular.
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Front Idler
Right Rear Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | transmission | |
|---|---|---|
| date of analysis | Jul 15, 2026 | Jul 15, 2026 |
| Silicon | 3.77 PPM | 6.3 PPM |
| Tin | 0.58 PPM | 0 PPM |
| Silver | 0.15 PPM | 0.03 PPM |
| Aluminum | 2.23 PPM | 0.91 PPM |
| Chromium | 0.49 PPM | 0 PPM |
| Lead | 5.55 PPM | 13.81 PPM |
| Copper | 35.02 PPM | 129.12 PPM |
| Nickel | 1.23 PPM | 0.02 PPM |
| Iron | 110.51 PPM | 19.97 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
