92 Photos

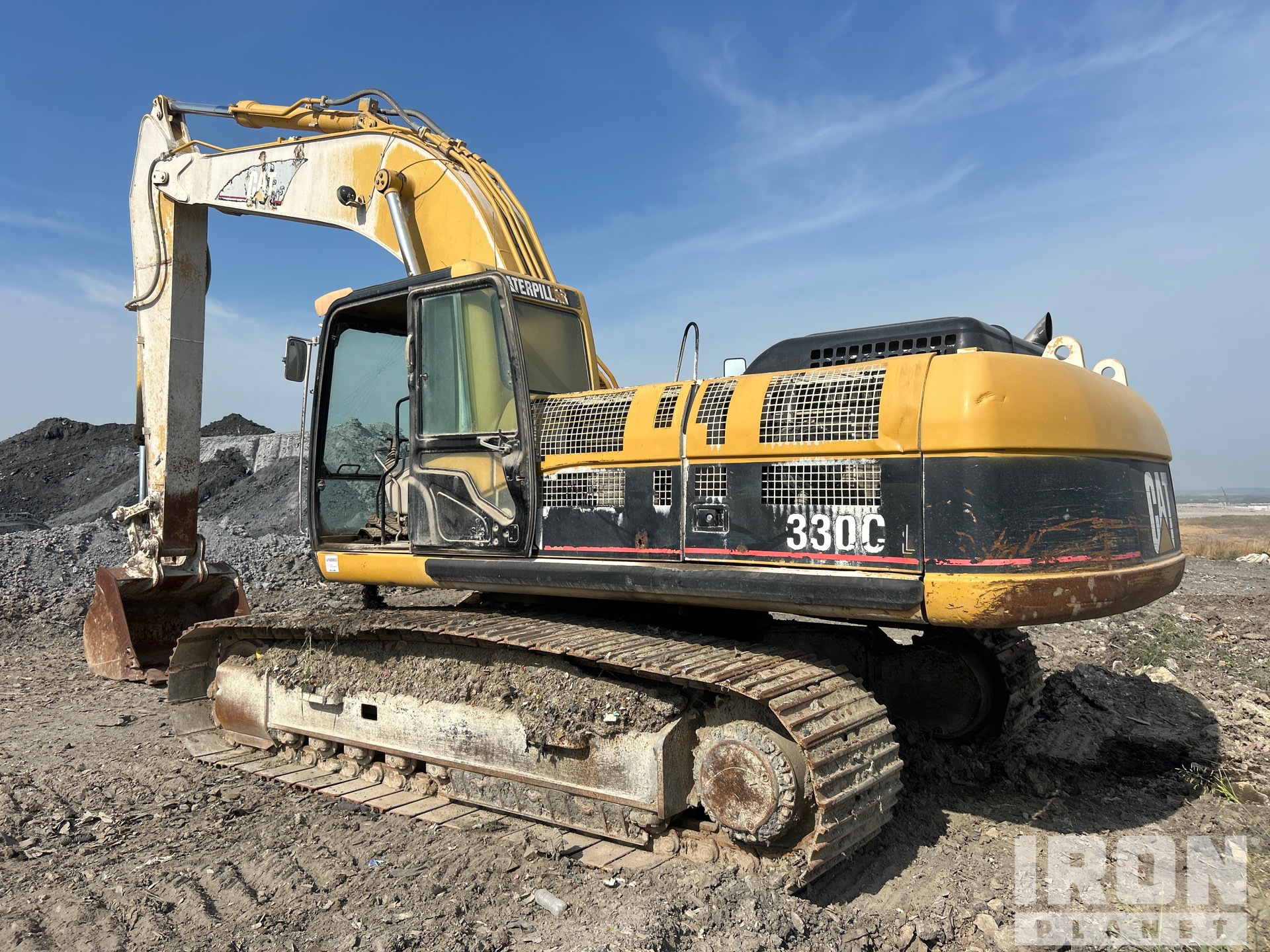

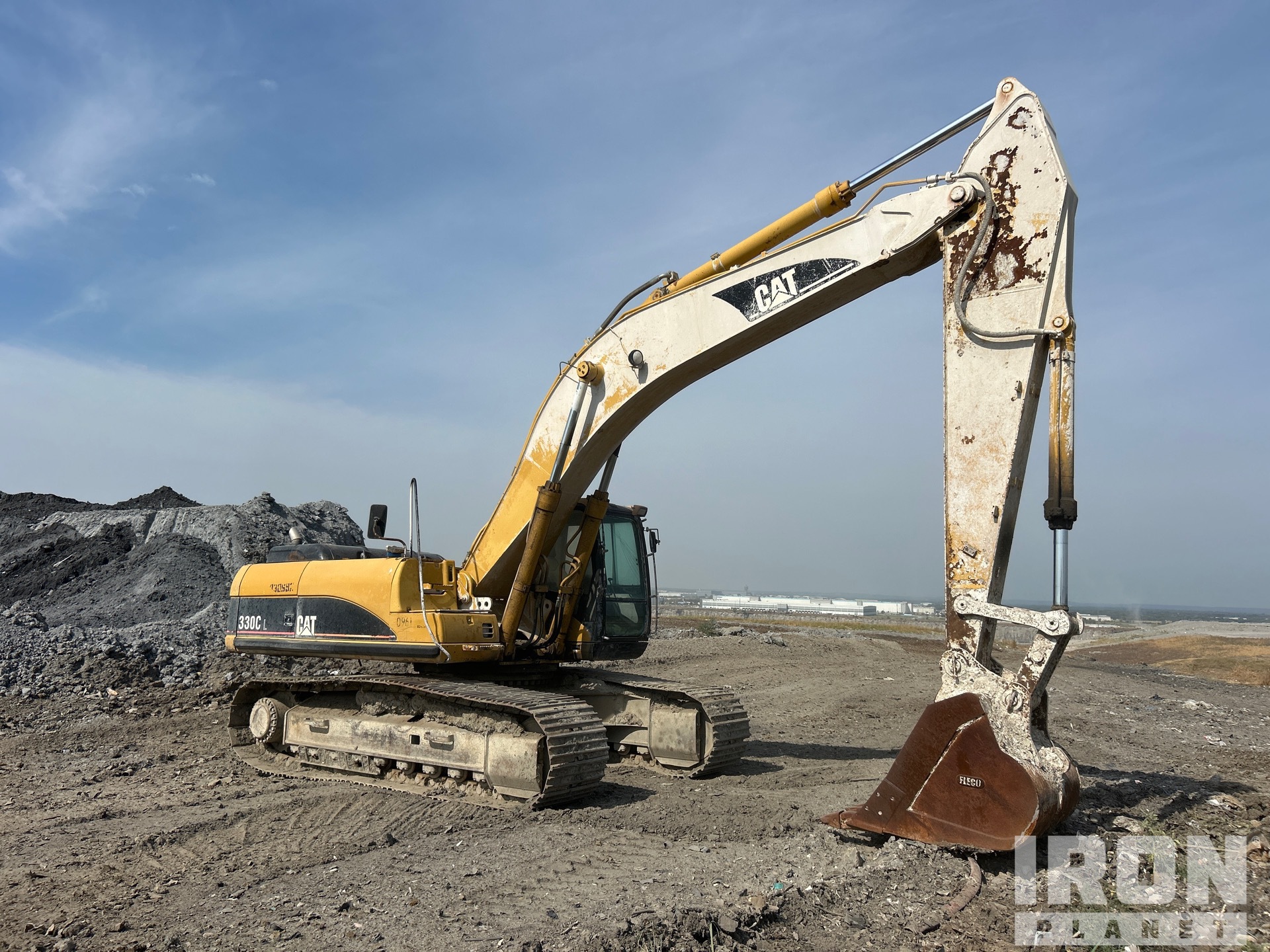

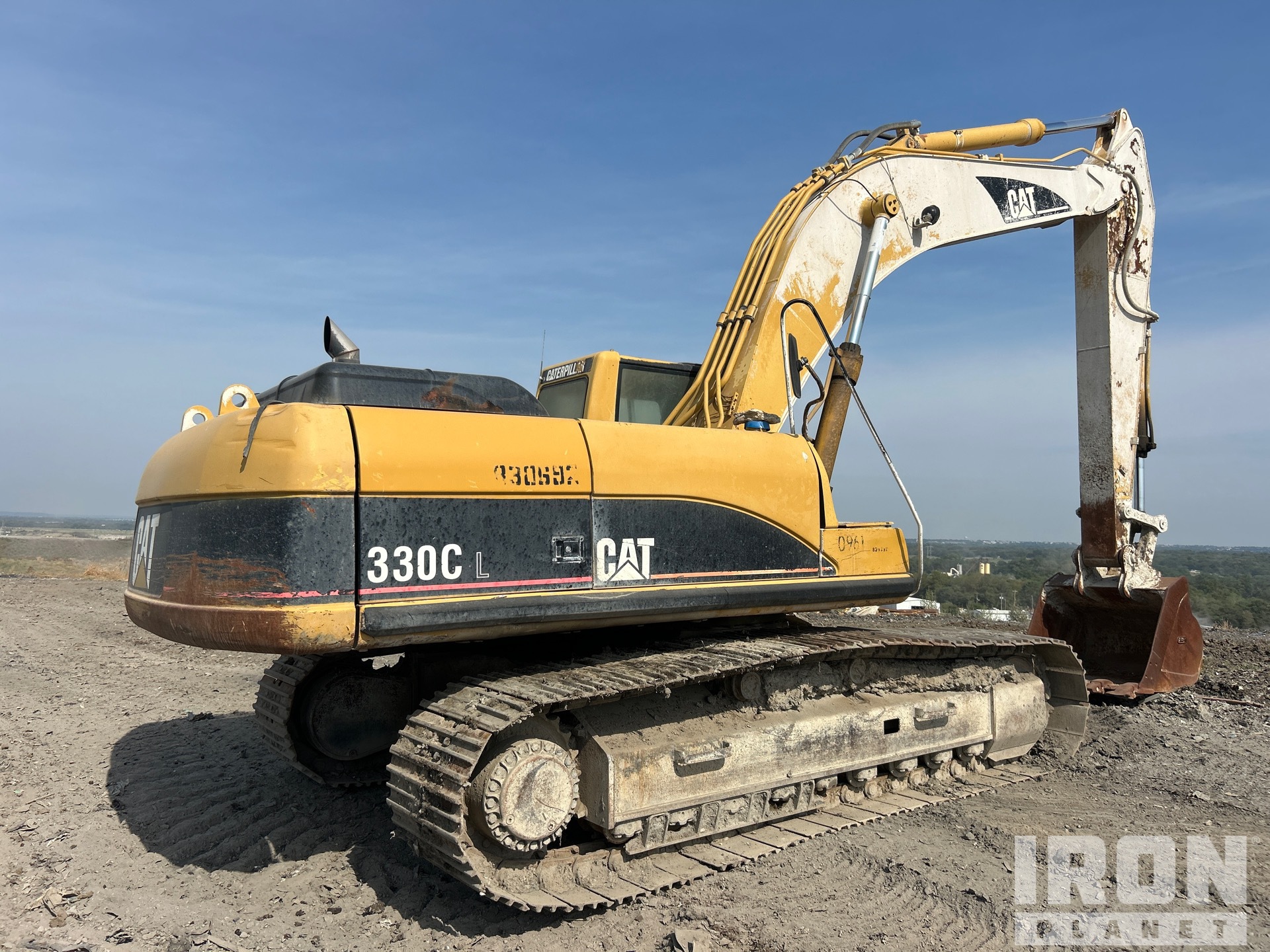

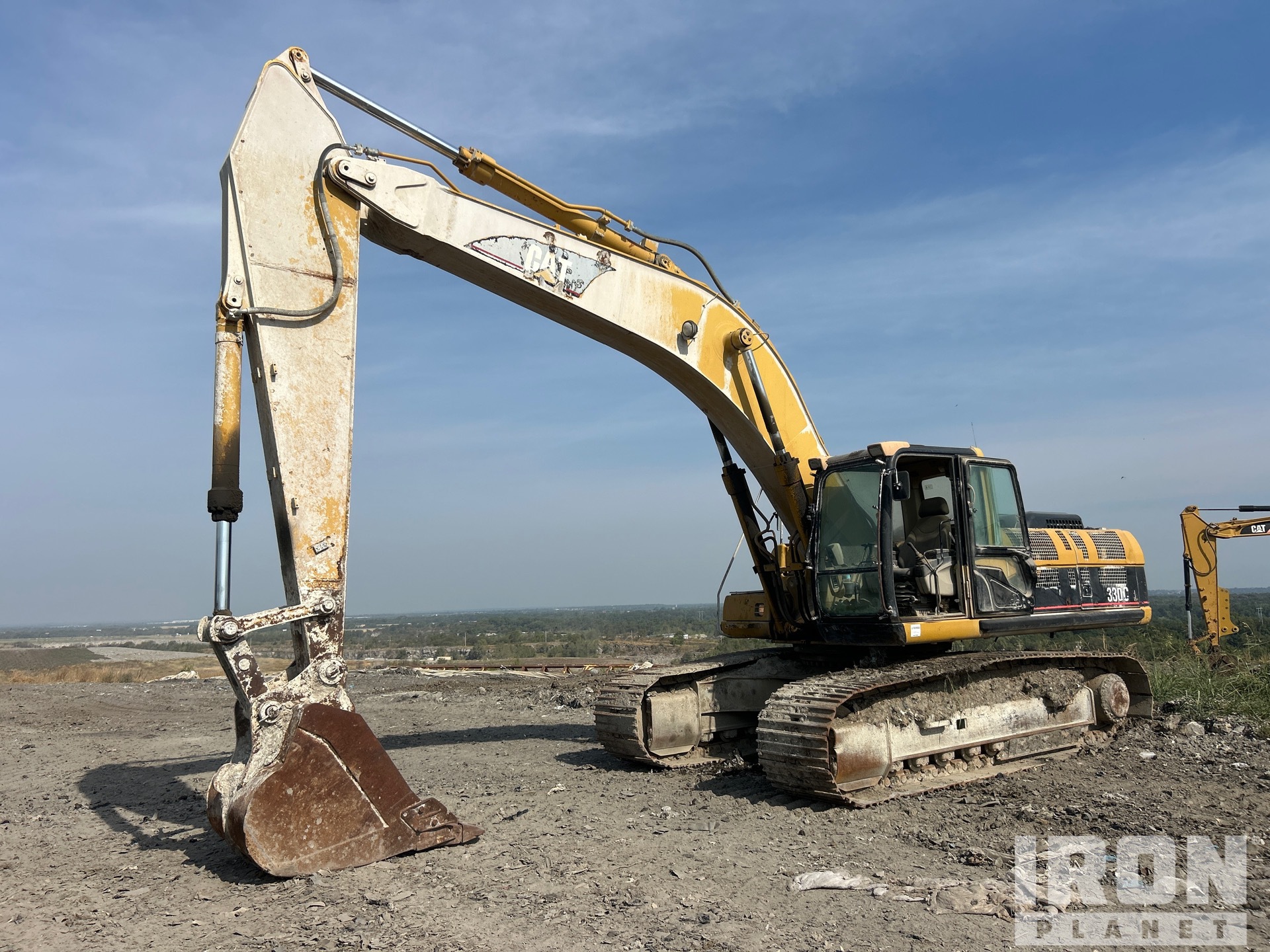

Cat 330C Tracked Excavator
Located
Tulsa, OK
Tulsa, OK
Usage
5,414 hrs
5,414 hrs
Serial number
CAT0330CCCYA00961
CAT0330CCCYA00961
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15752330
In yard
No
Features
Air Conditioner, Straight Travel Pedal, Control Pattern Changer, 12 ft 10 in Stick, 31.5 in Triple Grouser Track Shoes, Rock Guards, 56 in Digging Bucket
General Appearance
Serial Number / VIN
CAT0330CCCYA00961
CE Mark
No CE mark found
Hour Meter / Odometer
5414 hrs, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
19786 prefilled in report.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational, Boom lights are not operational
Safety
Travel Alarm
Operational
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Very loose
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
No oil pressure indicator
Warning Lights
Inoperable
Gauges
All gauges are inoperable
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted. The instrument panel was inoperable.
Engine
Engine
US EPA Label not legible
Emission Label
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Left Drive Motor
Pulled unevenly
Right Drive Motor
Pulled unevenly
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational., The drivetrain was weak. The POC said that the final drives need work, they performed during the inspection.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hydraulic Control Pattern Changer
Not operationally checked
Hoses (Hydraulics)
Swing Motor
Dripping leak, Leak
Hydraulic Center Swivel
Due to the swing motor leak, it was not determined if the center swivel leaked.
Boom Lift Cylinder(s)
Dripping leak on the left cylinder, Dripping leak on the right cylinder, Leaks
Stick Cylinder
Bucket Cylinder
Dripping leak, Leak
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Stick Condition
Boom Base Pin and Bushings
Pin and Bushings Boom to Stick
Pin and Bushings Stick to Bucket
Turntable Bearing
Bottom Covers
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Grouser Height
26 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
25 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Excavator Bucket Condition
Cutting Edge / Teeth / Adapters
Missing one tooth
