2022 Komatsu D71PXI-24 Crawler Dozer
Located
Lake Worth, TX
Lake Worth, TX
Usage
8,693 hrs
8,693 hrs
Serial number
KMT0D137HMA070477
KMT0D137HMA070477
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15043419
In yard
Yes
Features
Enclosed Cab, Air Conditioner, Rear View Camera, Pre-Wired for Grade Control, Requires Diesel Exhaust Fluid, 158 in Wide PAT Blade, 2 Cylinder Multi-Shank Ripper, 30 in Single Grouser Track Shoes

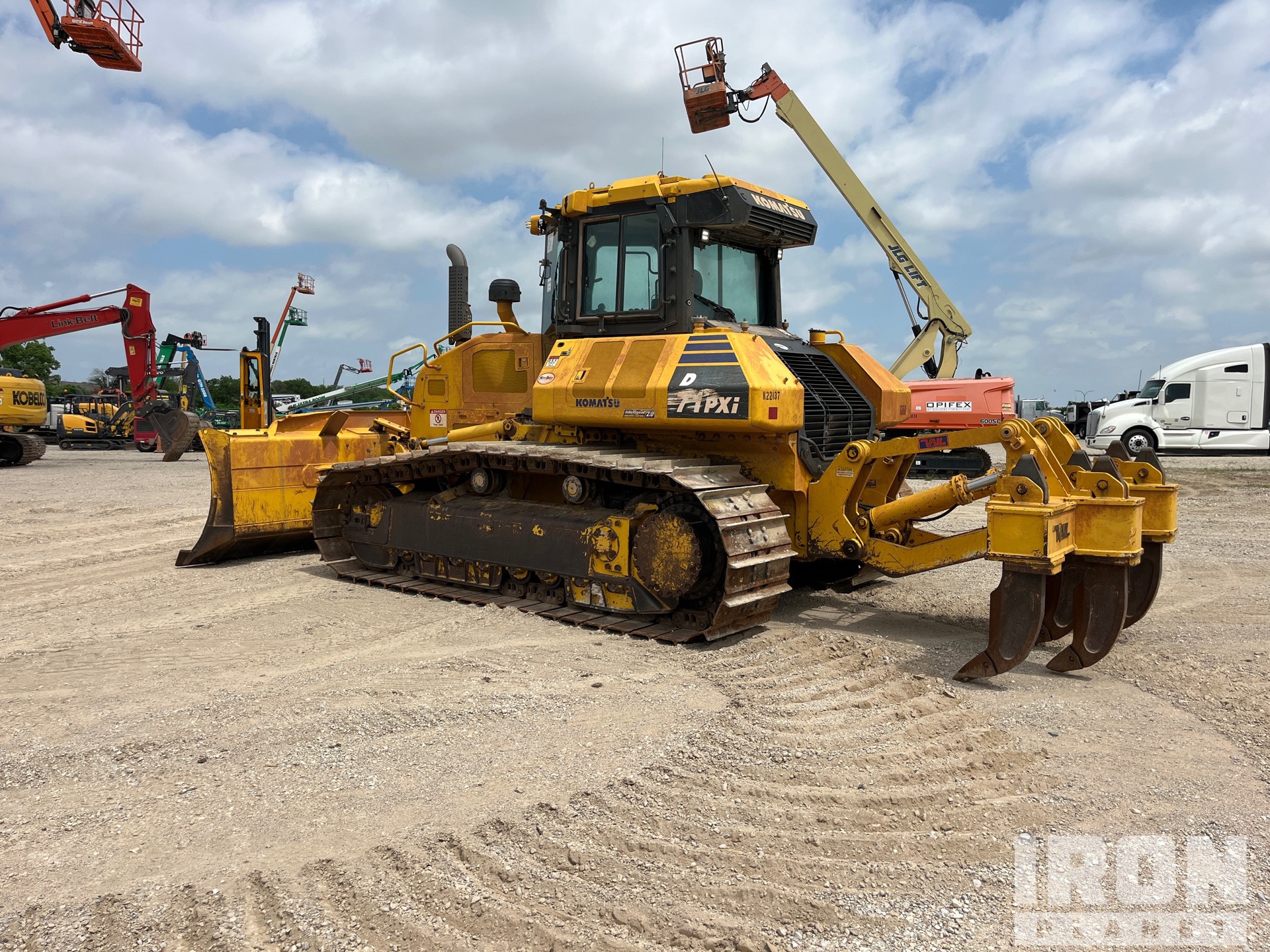

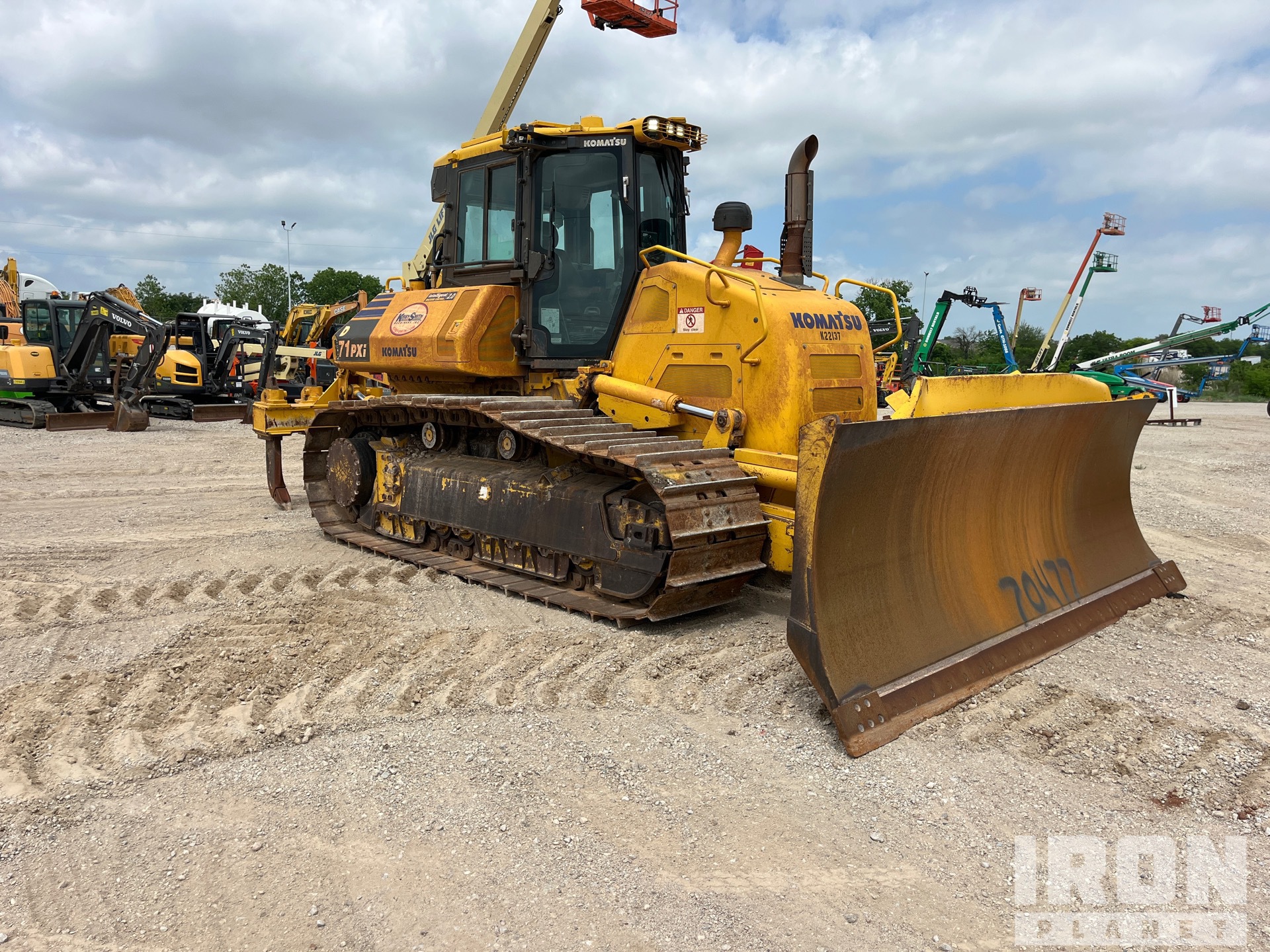

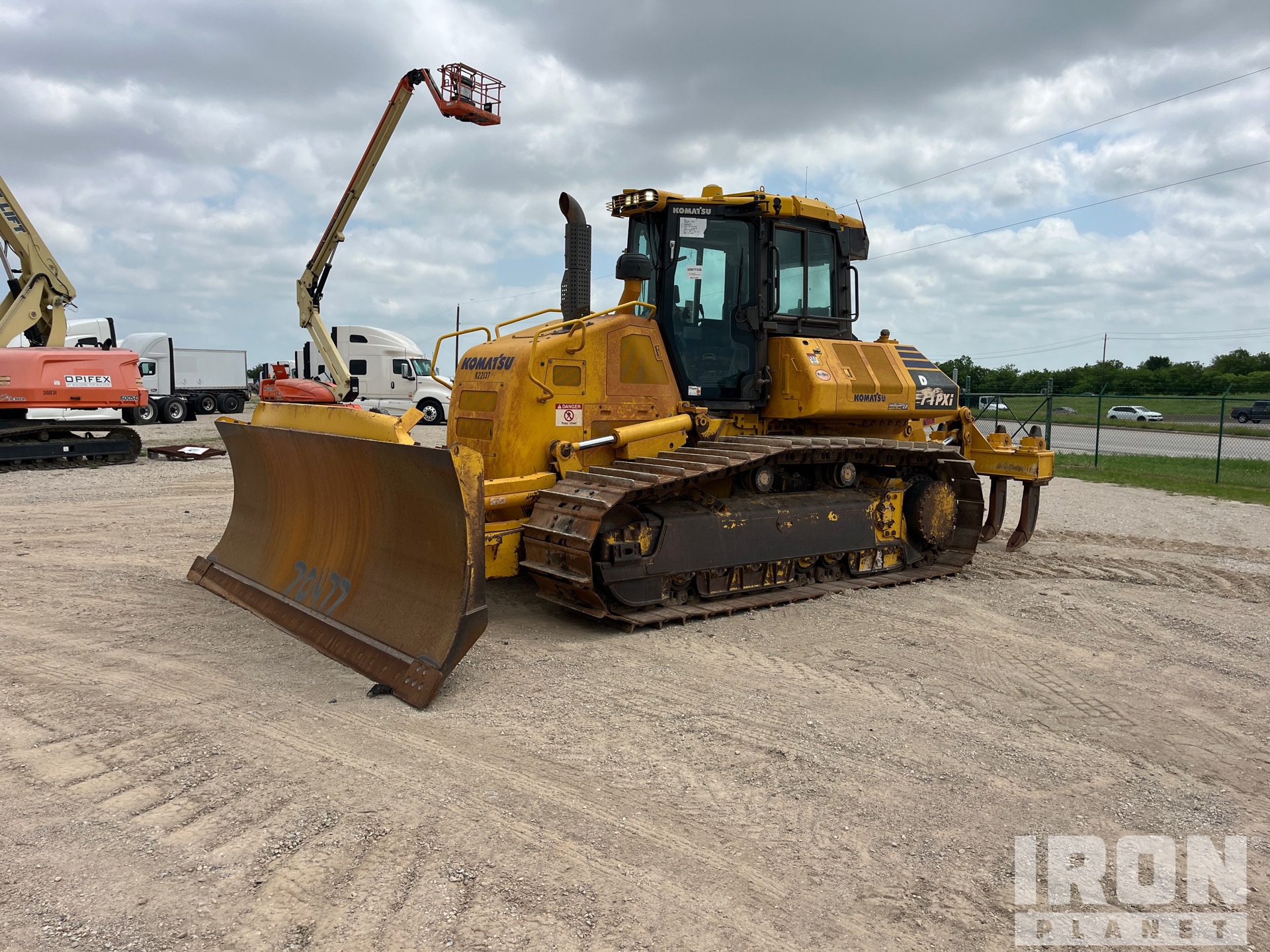

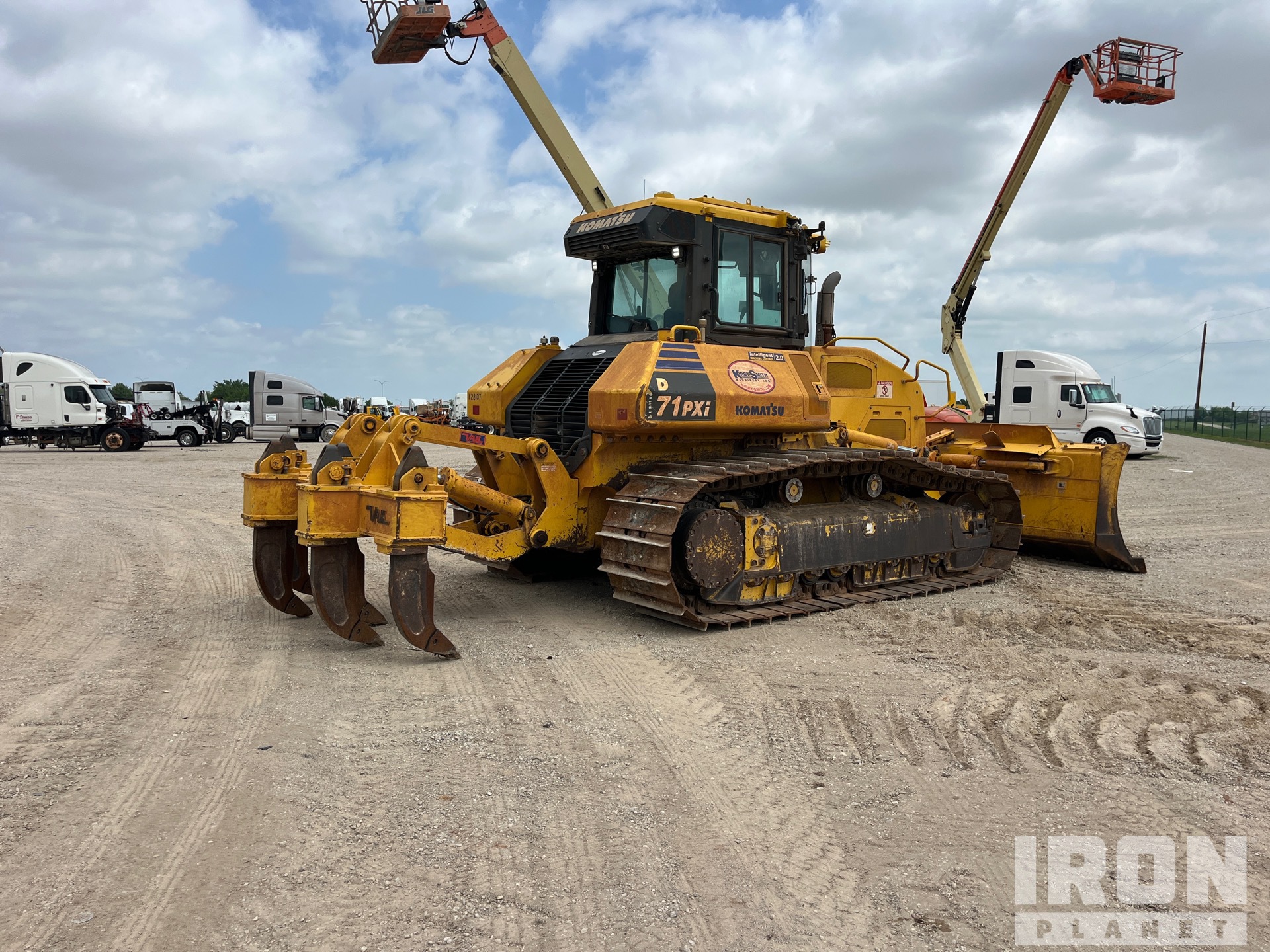

General Appearance
Serial Number / VIN
KMT0D137HMA070477
CE Mark
No CE mark found
Hour Meter / Odometer
8693 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present Requires Diesel Exhaust Fluid
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Service Brakes
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Auxiliary Hydraulic Plumbing
Operational, Rear
Blade Lift Cylinders
Blade Angle Cylinders
Blade Tilt Cylinders
Ripper Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Blade Cutting Edge Condition
Reversible-not turned
Ripper Condition
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Tilt Linkage Pins and Bushings
Angle Linkage Pins and Bushings
Blade Trunnions/bushings
Shims remaining
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Undercarriage
Pivot Shafts
Equalizer Bar Pivot Points
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
59 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Front Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
58 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Front Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Apr 17, 2026 |
| Silicon | 0 PPM |
| Tin | 1.07 PPM |
| Silver | 0.08 PPM |
| Aluminum | 0.88 PPM |
| Chromium | 0.75 PPM |
| Lead | 0.89 PPM |
| Copper | 1.37 PPM |
| Nickel | 0.64 PPM |
| Iron | 22.2 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
