105 Photos
2018 Cat D6N LGP Crawler Dozer
Located
Gonzales, LA
Gonzales, LA
Usage
10,334 hrs
10,334 hrs
Serial number
CAT00D6NLSGG00550
CAT00D6NLSGG00550
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15480753
In yard
No
Features
Enclosed Cab, Air Conditioner, Pre-Wired for Grade Control, Requires Diesel Exhaust Fluid, 156 in Wide PAT Blade, Drawbar, Sweeps, 33 in Single Grouser Track Shoes

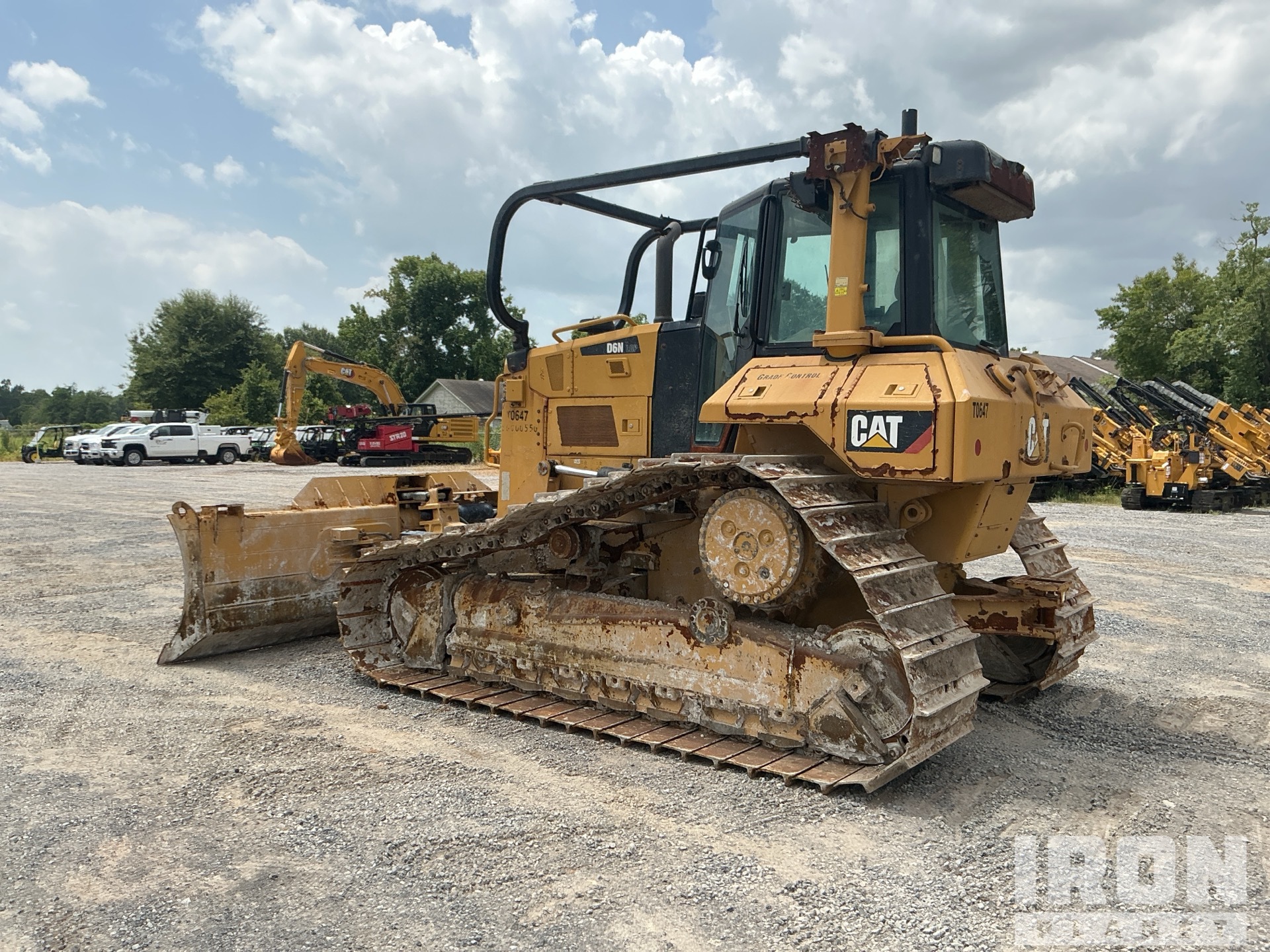

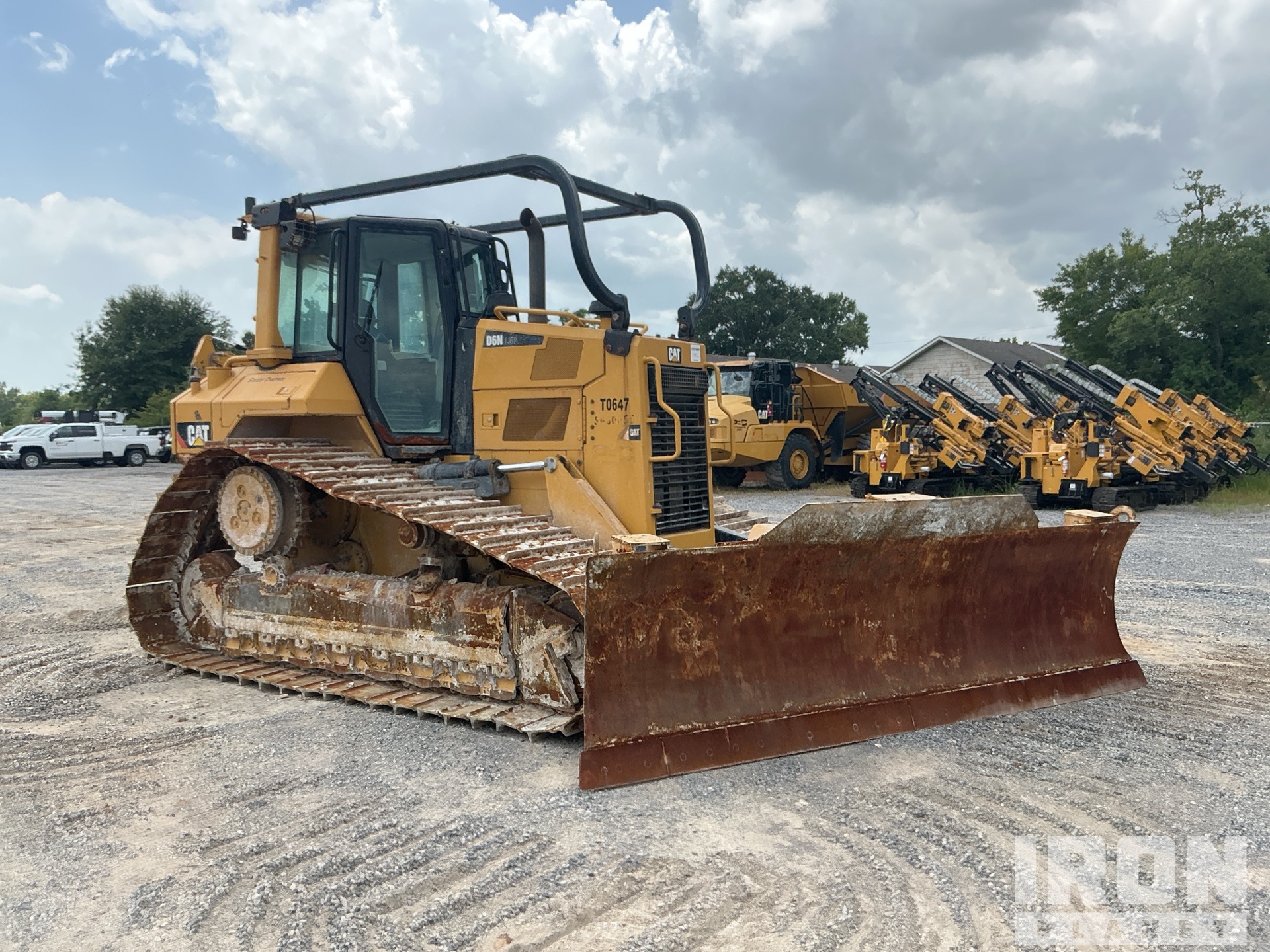

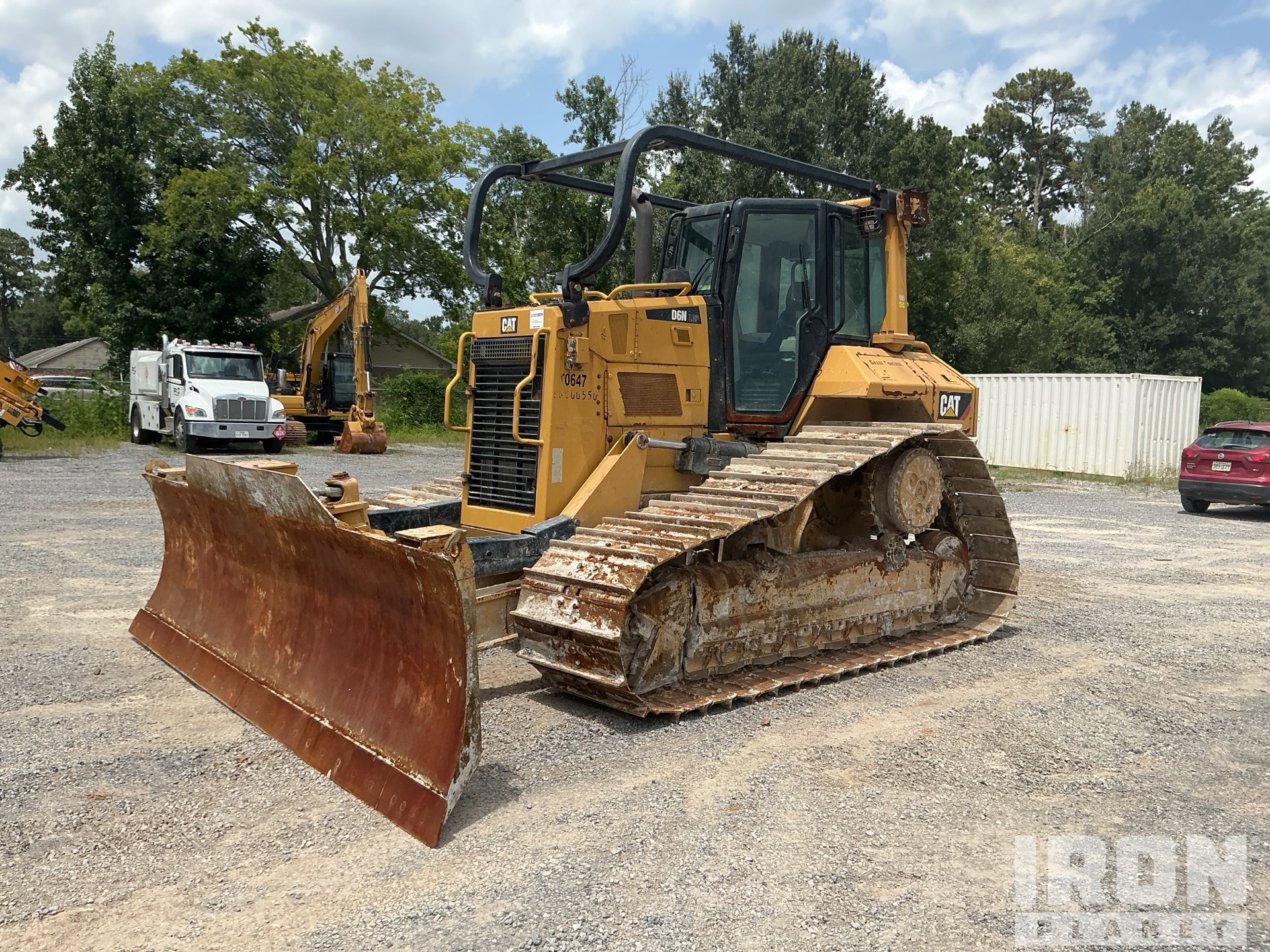

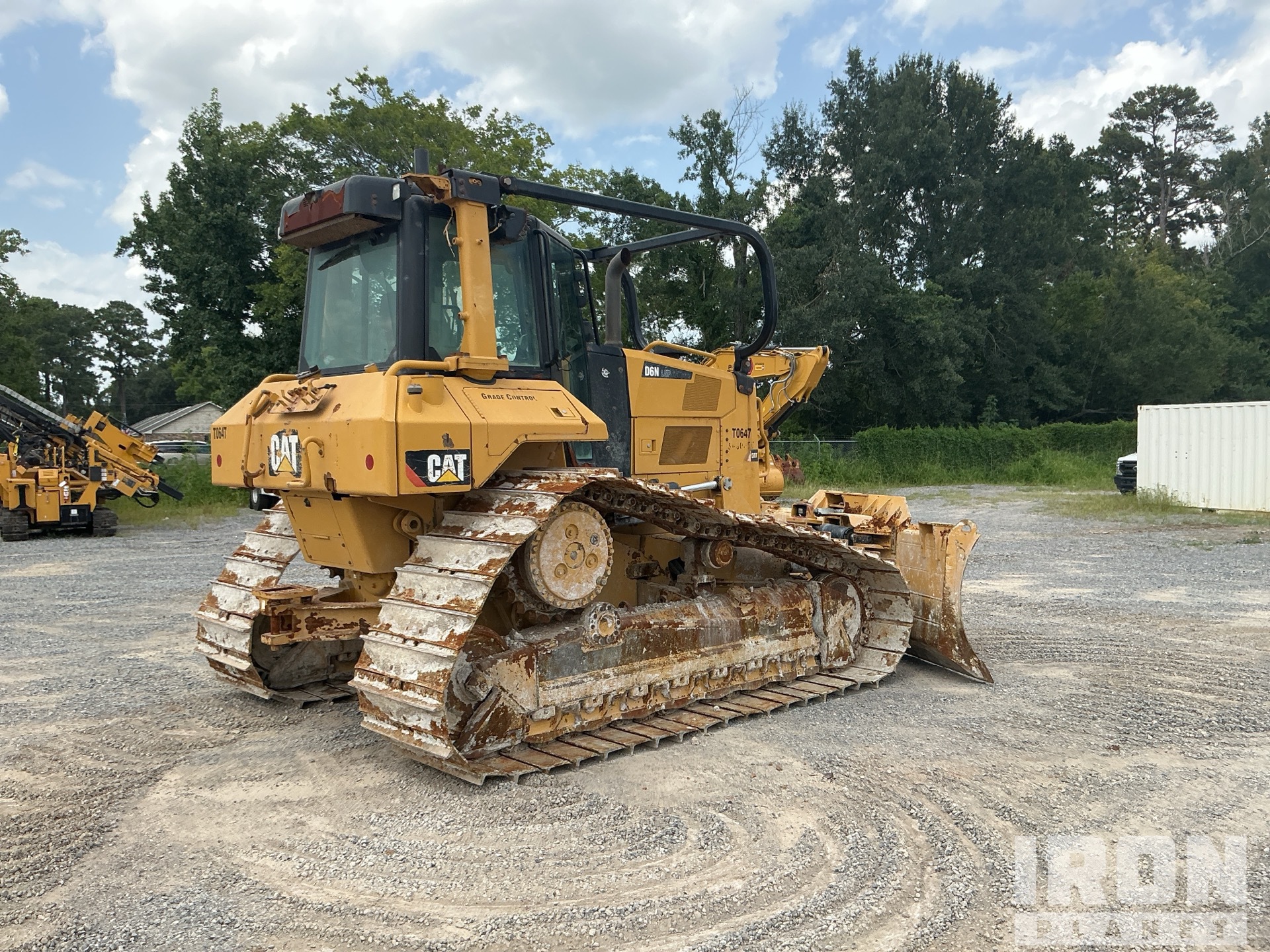

General Appearance
Serial Number / VIN
CAT00D6NLSGG00550
CE Mark
No CE mark found
Hour Meter / Odometer
10334 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Rear top right lights are not operational
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present Requires Diesel Exhaust Fluid
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran. The engine has a ticking noise at idle.
Drivetrain
Transmission
Operational
Service Brakes
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Auxiliary Hydraulic Plumbing
Capped off
Blade Lift Cylinders
Blade Angle Cylinders
Blade Pitch Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Blade Cutting Edge Condition
Reversible-not turned
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Tilt Linkage Pins and Bushings
Angle Linkage Pins and Bushings
Blade Trunnions/bushings
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Undercarriage
Pivot Shafts
Equalizer Bar Pivot Points
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
55 mm
Left Track Links
Left Track Bushings
Bushings have been turned
Left Carrier Rollers
Left Track Rollers
Left Front Idler
Left Rear Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
54 mm
Right Track Links
Right Track Bushings
Bushings have been turned
Right Carrier Rollers
Right Track Rollers
Right Front Idler
Right Rear Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 03, 2026 |
| Silicon | 0.2 PPM |
| Tin | 1.35 PPM |
| Silver | 0 PPM |
| Aluminum | 6.04 PPM |
| Chromium | 0.67 PPM |
| Lead | 0.81 PPM |
| Copper | 3.64 PPM |
| Nickel | 0.44 PPM |
| Iron | 22.89 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
