81 Photos

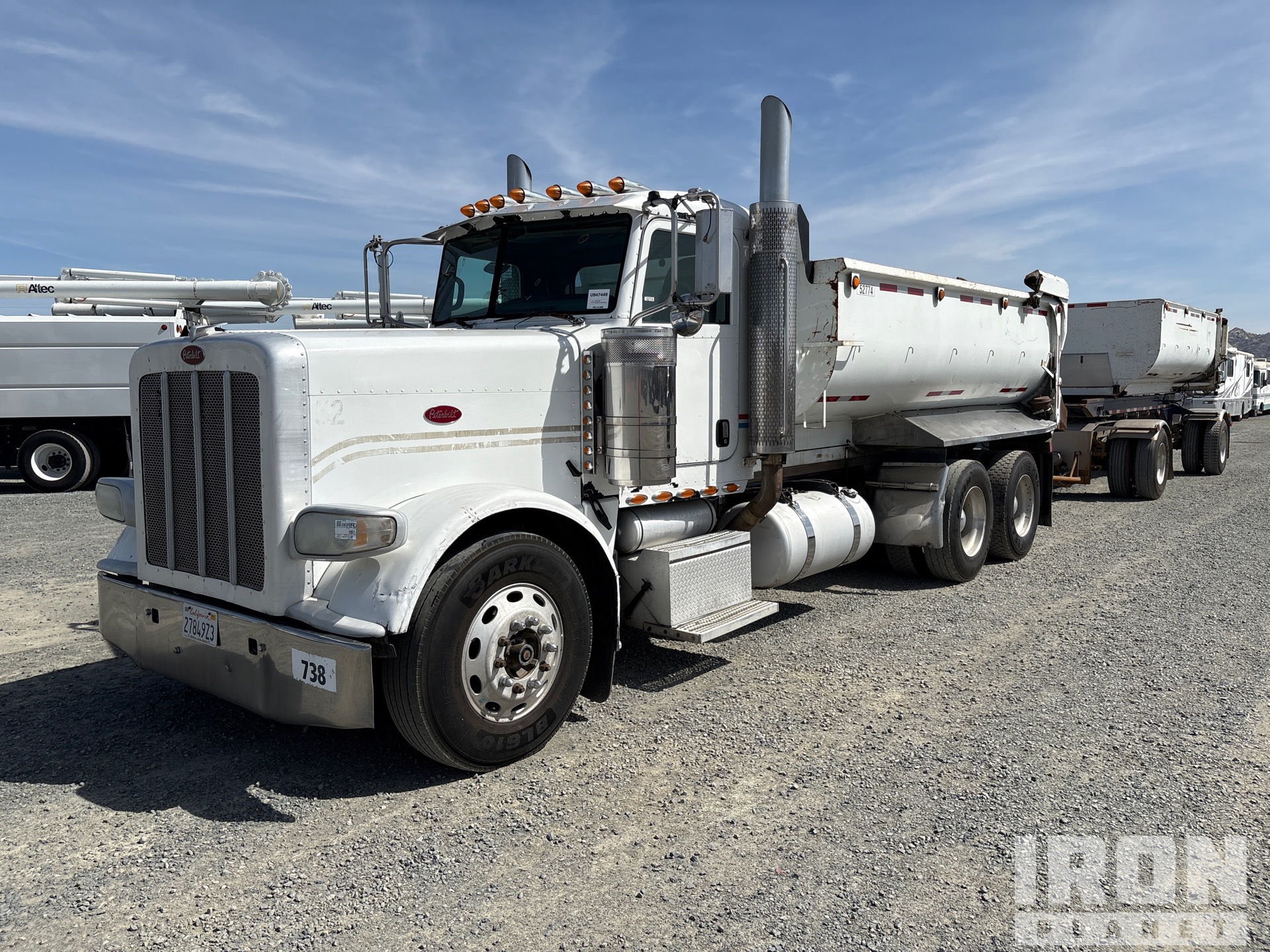

2011 Peterbilt 388 6x4 Transfer Set
Located
Perris, CA
Perris, CA
Usage
610,176 mi
610,176 mi
Serial number
1XPWDU9X2BD125811
1XPWDU9X2BD125811
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14919890
In yard
Yes
Features
Cat 6 Cylinder Diesel Engine, 5157.5 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton Fuller 10-Speed Manual Transmission, 12350 lb Front Axle, 38000 lb Rears, Air Ride Cab, Aluminum Wheels, 11R22.5, Paccar Air Ride Suspension, 232 in Wheelbase, Reliance 15 ft 11 in Long x 3 ft 6 in High Steel Body, Round Bottom, Air High-Lift Tailgate, Pintle Hitch, SOLD WITH - Reliance T/A Transfer Trailer, Trailer S/N- 1REFA5209WC981709, Lunette Ring Hitch, Spring Suspension, Air Brakes, Aluminum Wheels, 11R22.5 Tires

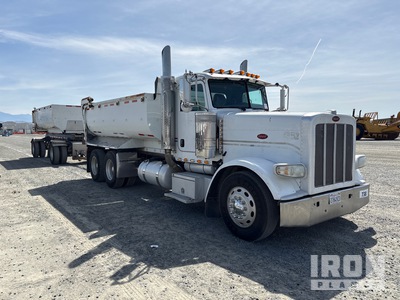

General Appearance
Serial Number / VIN
1XPWDU9X2BD125811
Second Serial Number/VIN Photo
Hour Meter / Odometer
610176 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Bent top left entry step, bent bottom right entry step
Hand Rails
Glass
Chips in glass,, wiper marks on glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 9/32" Aluminum
- Drum
- Drum
- 4/32" Aluminum
Rear Axle
- 5/32" Aluminum
- 5/32" Aluminum
- Drum
- Drum
- 22/32" Aluminum
- 26/32" Aluminum
Rear Axle
- 7/32" Aluminum
- 4/32" Aluminum
- Drum
- Drum
- 13/32" Aluminum
- 4/32" Aluminum
Engine
Emissions Information
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
5157.5 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Torn left seat cover, damaged bottom left seat cushion
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 63 PSI
Warning Lights
Operational, Check engine light stays on, Regen light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages
PTO Control
Not operationally checked
ECM Miles
610177 ECM mi
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Cab Suspension Air Bags
Frame Condition
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Configuration
Bed Body
Tailgate
Tailgate Latch
Air operated
Support Frame
Hinge Points
External Electrical / Air Connections
Pintle Hitch
Operational

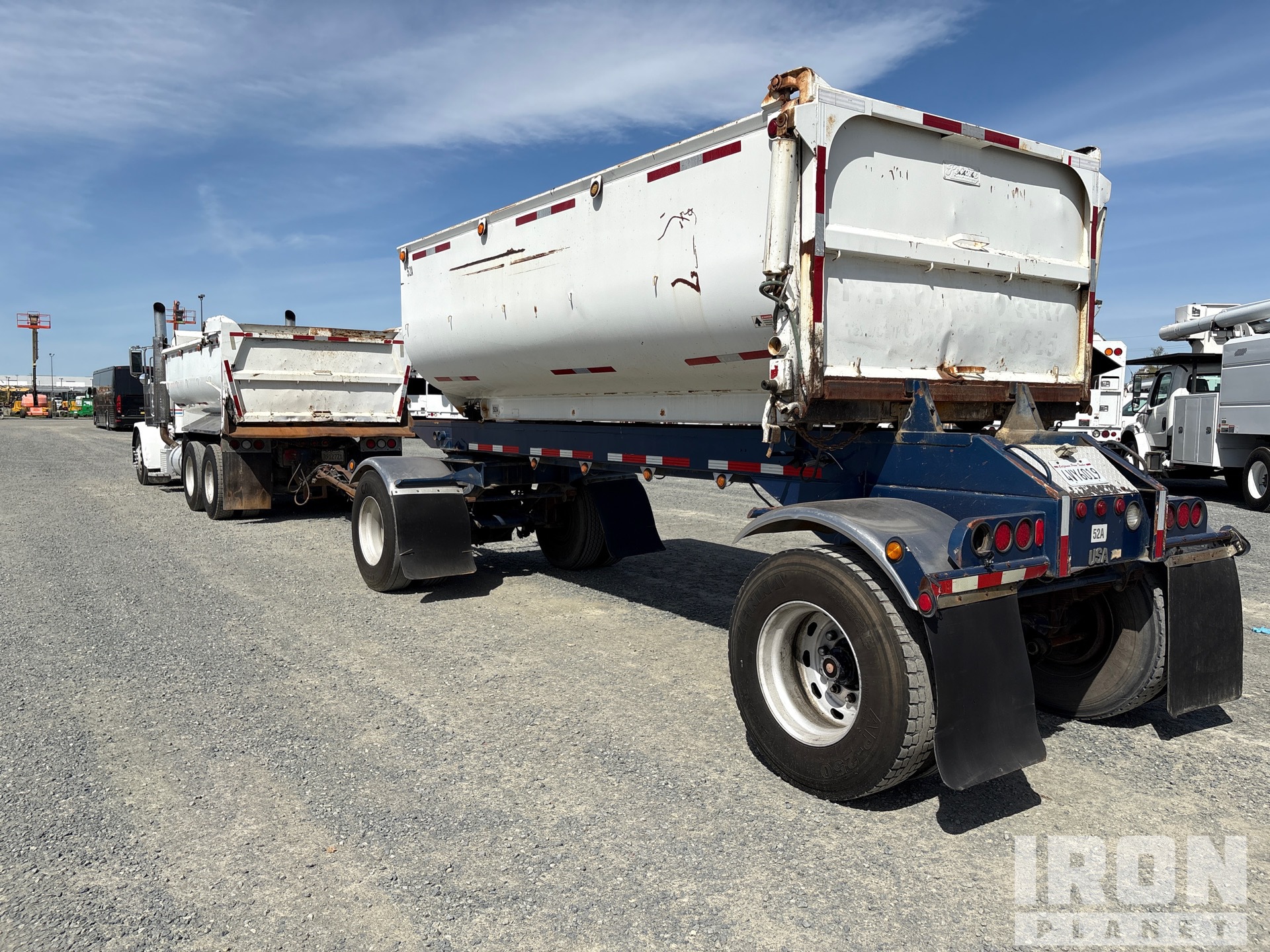

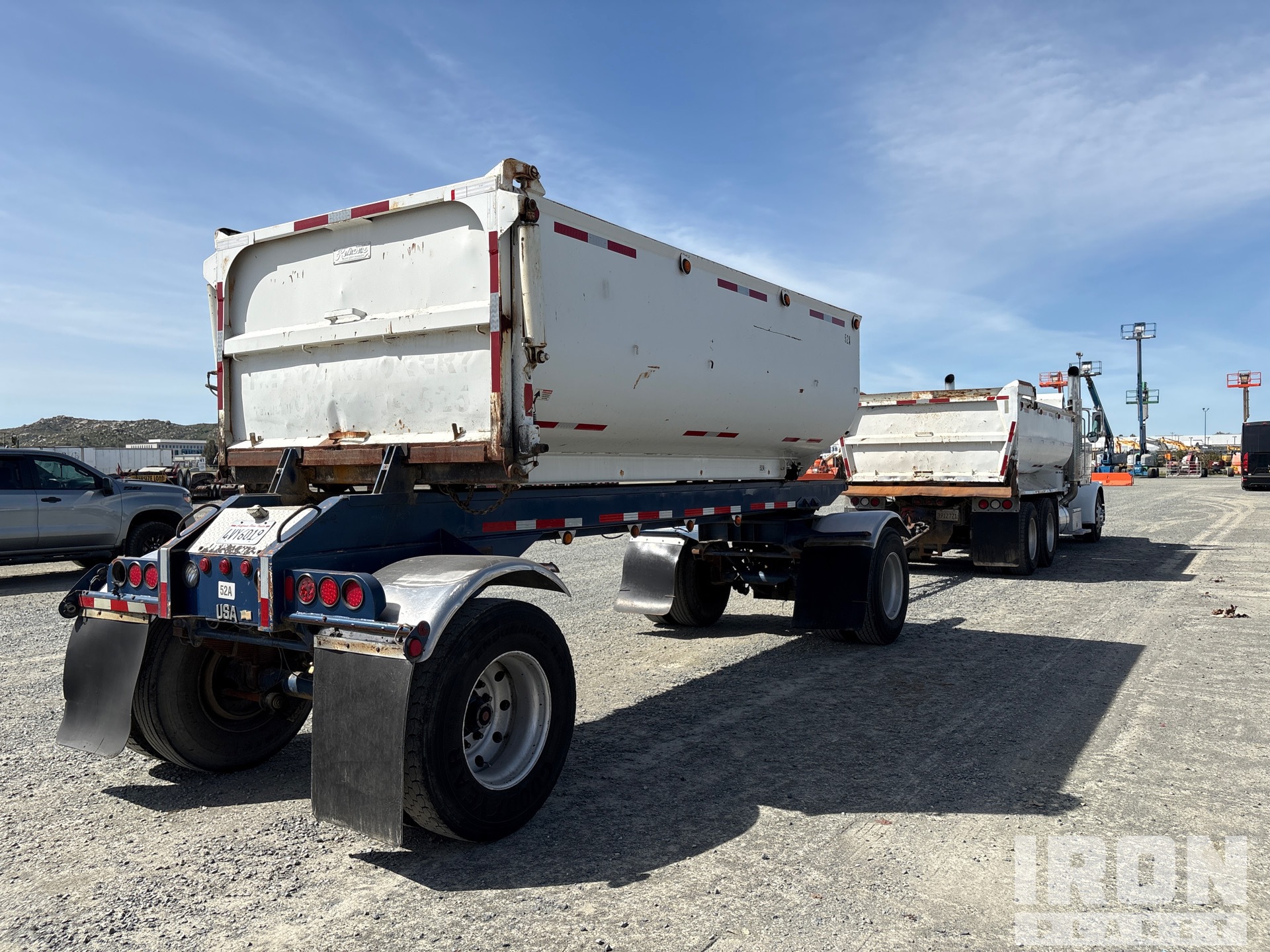

Trailer Details
Trailer S/N Photo
The Serial number does not match as requested. Seller confirmed this is the correct item.
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
| date of analysis | Apr 01, 2026 |
| Silicon | 2.15 PPM |
| Tin | 0.69 PPM |
| Silver | 0.37 PPM |
| Aluminum | 13.42 PPM |
| Chromium | 2.94 PPM |
| Lead | 3.98 PPM |
| Copper | 0.98 PPM |
| Nickel | 1.49 PPM |
| Iron | 30.17 PPM |
