138 Photos

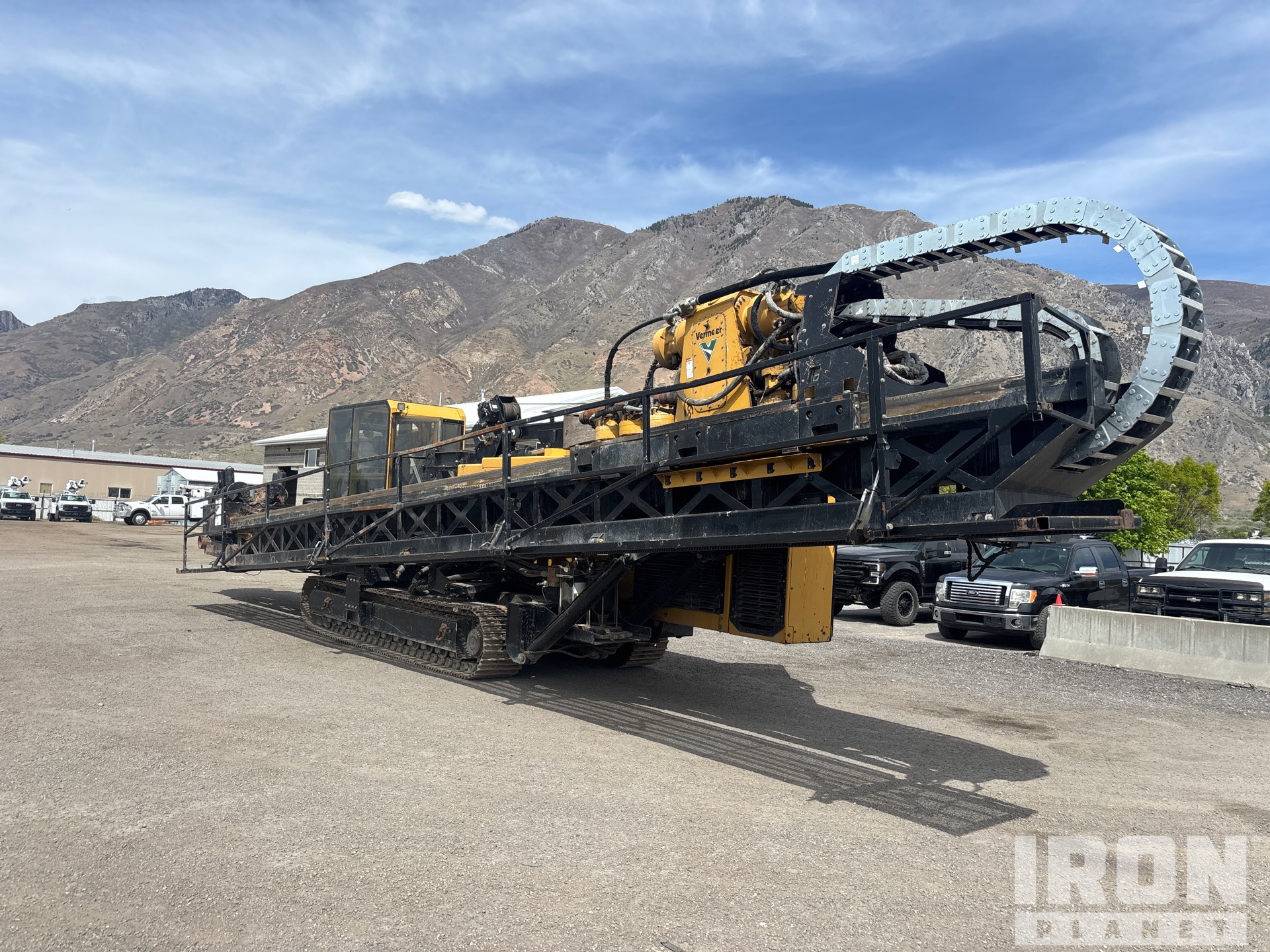

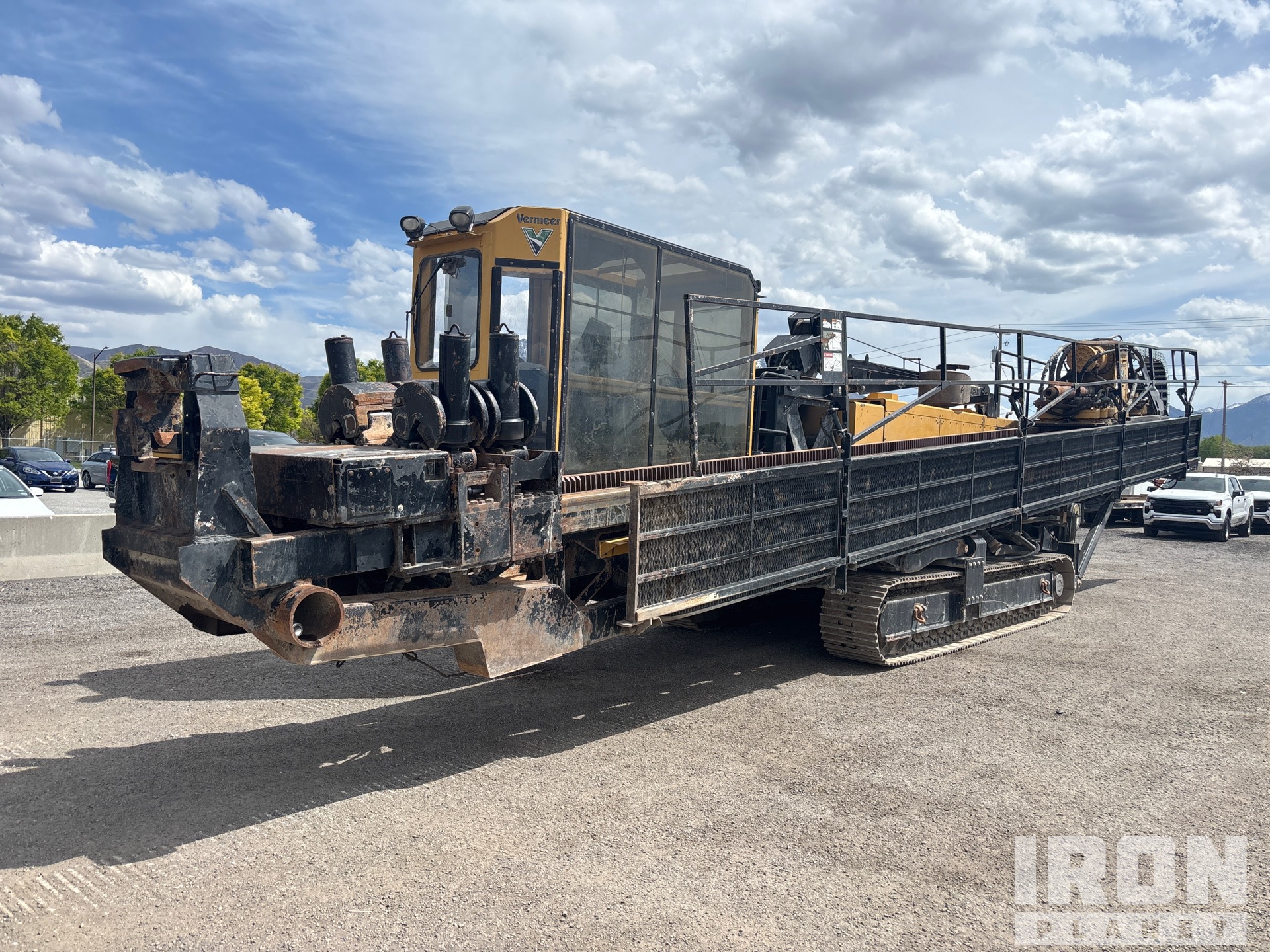

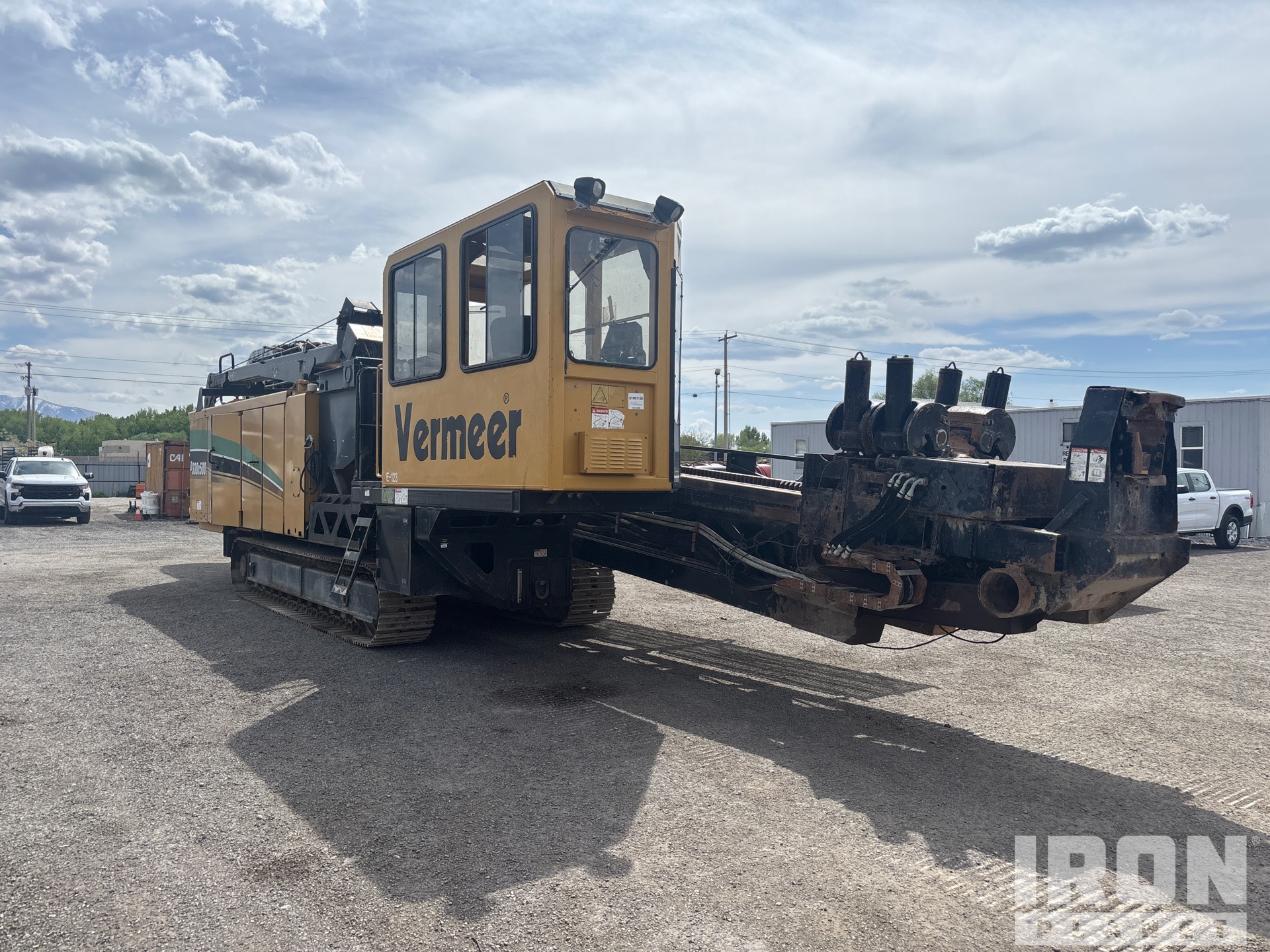

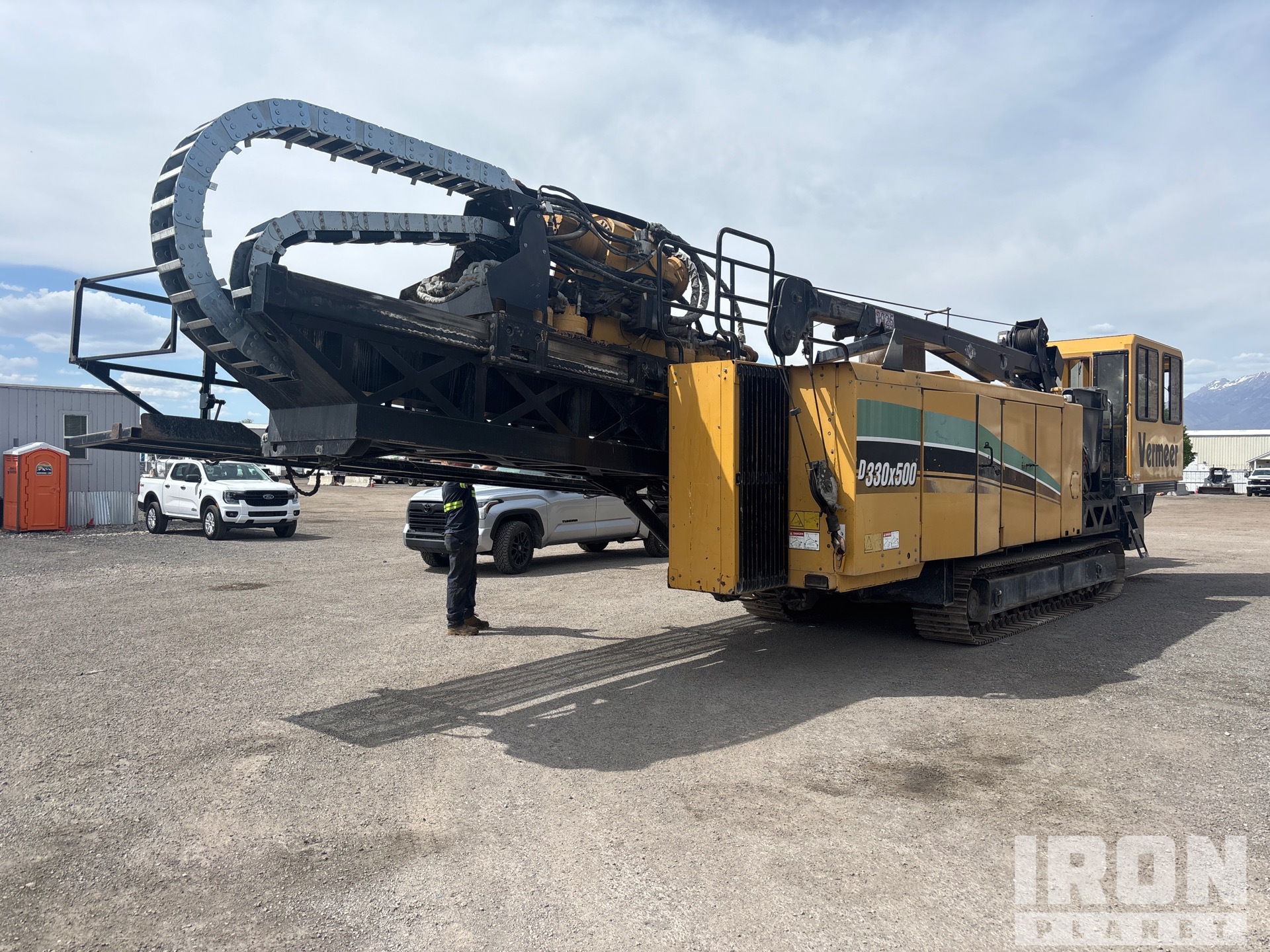

2007 Vermeer D330x500 Directional Drill w/ 1975 Twamco Trailer
Located
Springville, UT
Springville, UT
Usage
11,200 hrs
11,200 hrs
Serial number
0112575
0112575
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15073030
In yard
No
Features
Enclosed Cab, Air Conditioner, Cat 6 Cylinder Diesel Engine, Drill Rod Loading System, 20 in Triple Grouser Track Shoes, Seller Comment: C/W a Mud Technology skid mounted mud mixing system w/ Detroit Diesel engine, on a 1975 Twamco T/A equipment trailer. Also includes large qty of 5.5 In x 32 Ft drill pipe and 5.5 In x 20 Ft drill pipe (see pics) Trailer - VIN# 0112575
Notes
EQUIP VIN: 1VR45007871000106 TRAILER VIN: 0112575
General Appearance
Serial Number / VIN
0112575
Hour Meter / Odometer
11200 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Steps/Ladders
Hand Rails
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
The ambient temperature is too cold to check
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Hydraulic Motors
Not operationally checked
Swing Motor
Boom Lift Cylinder(s)
Mast Angle Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Mast Condition
Main Frame
Bottom Covers
Stake Down System
Kelly Drive Gear Box
Kelly Slide Wear Plates
Hyd. Hose Carrier System
Vices
Water / Mud Pump
Drill Rod Loading System
Operational
Drill Rod Racks
101 rod racks
Air Compressor
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Shoes
Left Grouser Height
25 mm
Left Track Links
Left Track Rollers
Left Idler
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
25 mm
Right Track Rollers
Right Idler
Right Sprocket
Trailer
Trailer VIN
0112575
Frame Rails/ Main Beams Condition
No visible damage
Cross Members
No visible damage
Tongue/ Hitch Condition
No visible damage
Axle Condition
Wheel Condition
Wheel Studs
Tire Size
All of the tires are the same size, 295/75R22.5 Front tires
Trailer Lights
Not operationally checked
Trailer Light Wiring
Not operationally checked
Springs/Hangers Condition
Trailer Brakes
Not operationally checked
