87 Photos
2023 Komatsu D61PXi-24 Crawler Dozer
Located
Fort Myers, FL
Fort Myers, FL
Usage
3,772 hrs
3,772 hrs
Serial number
KMT0D129VPBB66271
KMT0D129VPBB66271
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14788013
In yard
No
Features
Enclosed Cab, Air Conditioner, Rear View Camera, Pre-Wired for Grade Control, Intelligent Machine Control, Tier 4, US EPA Label, 143 in Wide PAT Blade, Drawbar

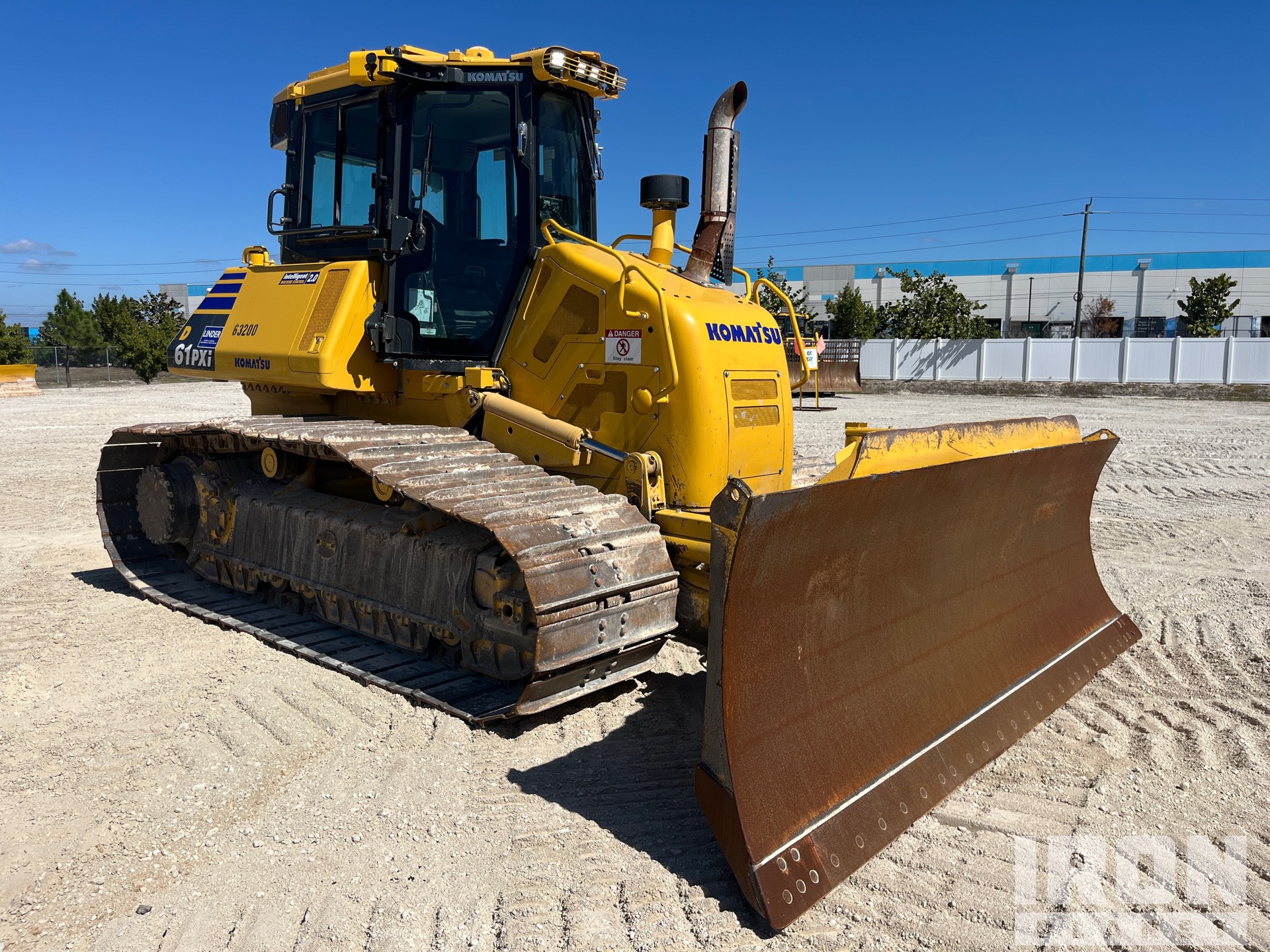

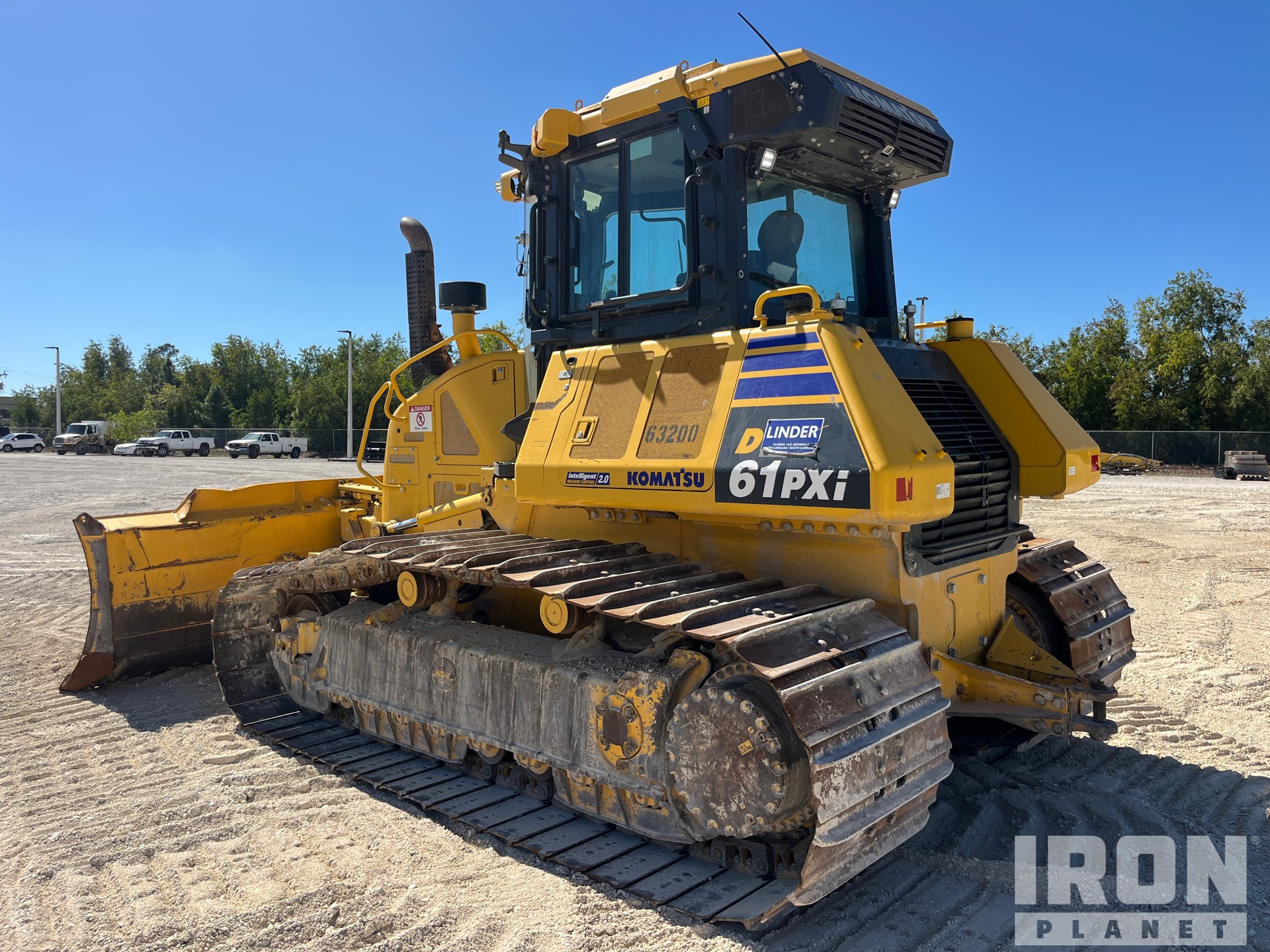

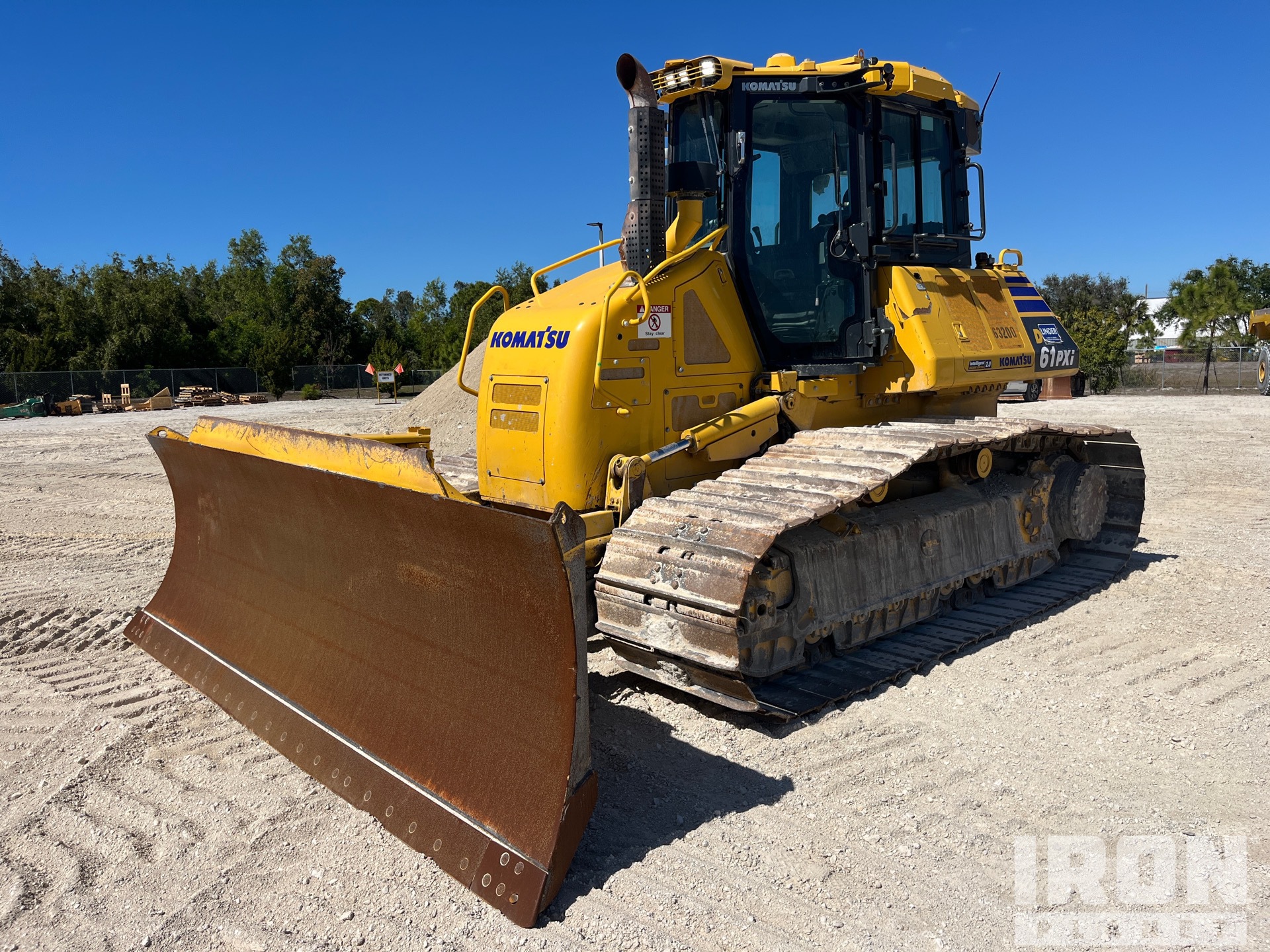

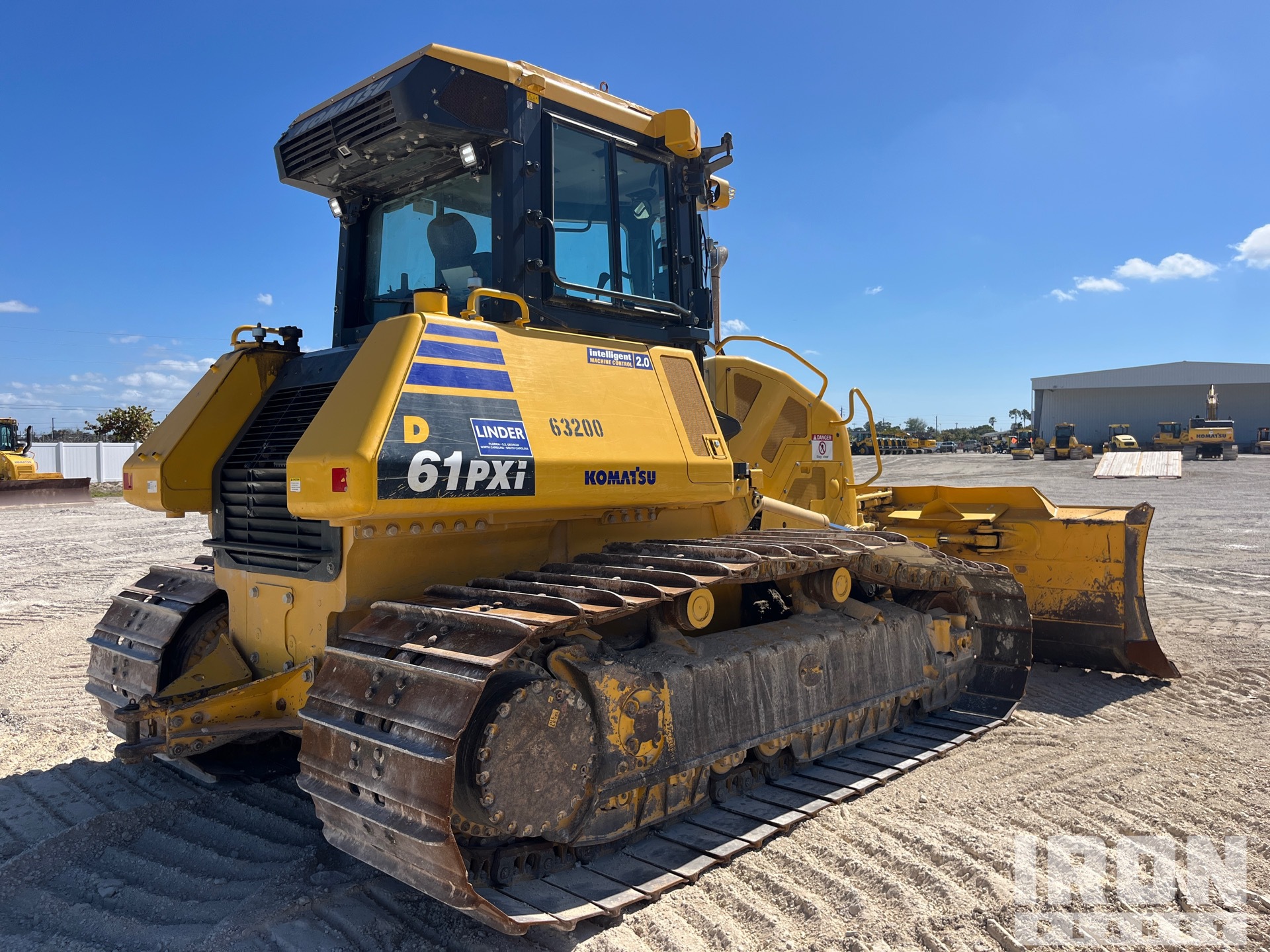

General Appearance
Serial Number / VIN
KMT0D129VPBB66271
Paint
Damage
Body Panels
Right engine door damaged
Steps/Ladders
No visible damage or missing components
Hand Rails
No visible damage or missing components
Exterior Lights
All lights operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seat/Armrests
No visible damage or missing components
Glass
No visible damage or missing components
Mirrors
Cab Doors
No visible damage or missing components
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Rear View Camera
Camera operates as intended
Grade Control Display
Missing pelican box
Grade Control Antenna
Grade control Antenna intact
Hour Meter / Odometer
3772 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
US EPA Label, Label obstructed
A/C Compressor
Operational
Starter
Operational
Exhaust System
No visible damage or missing components
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Blade Lift Cylinders
Blade Angle Cylinders
Blade Tilt Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Blade Cutting Edge Condition
Edge worn
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Tilt Linkage Pins and Bushings
Blade Trunnions/bushings
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
33.8 in Wide Single Grouser
Left Grouser Height
45 mm
Left Track Links
121 mm
Left Track Bushings
63 mm
Left Carrier Rollers
2 carrier rollers #1 170 mm #2 172 mm
Left Bottom Rollers
8 Bottom Rollers #5 195 mm #6 195 mm
Left Idler
21 mm
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
33.8 in Wide Single Grouser
Right Grouser Height
44 mm
Right Track Links
121 mm
Right Track Bushings
64 mm
Right Carrier Rollers
2 Carrier Rollers #1 173 mm #2 172 mm
Right Bottom Rollers
8 Bottom Rollers: #5 195 mm #6 195 mm
Right Idler
21 mm
Right Sprocket
