118 Photos

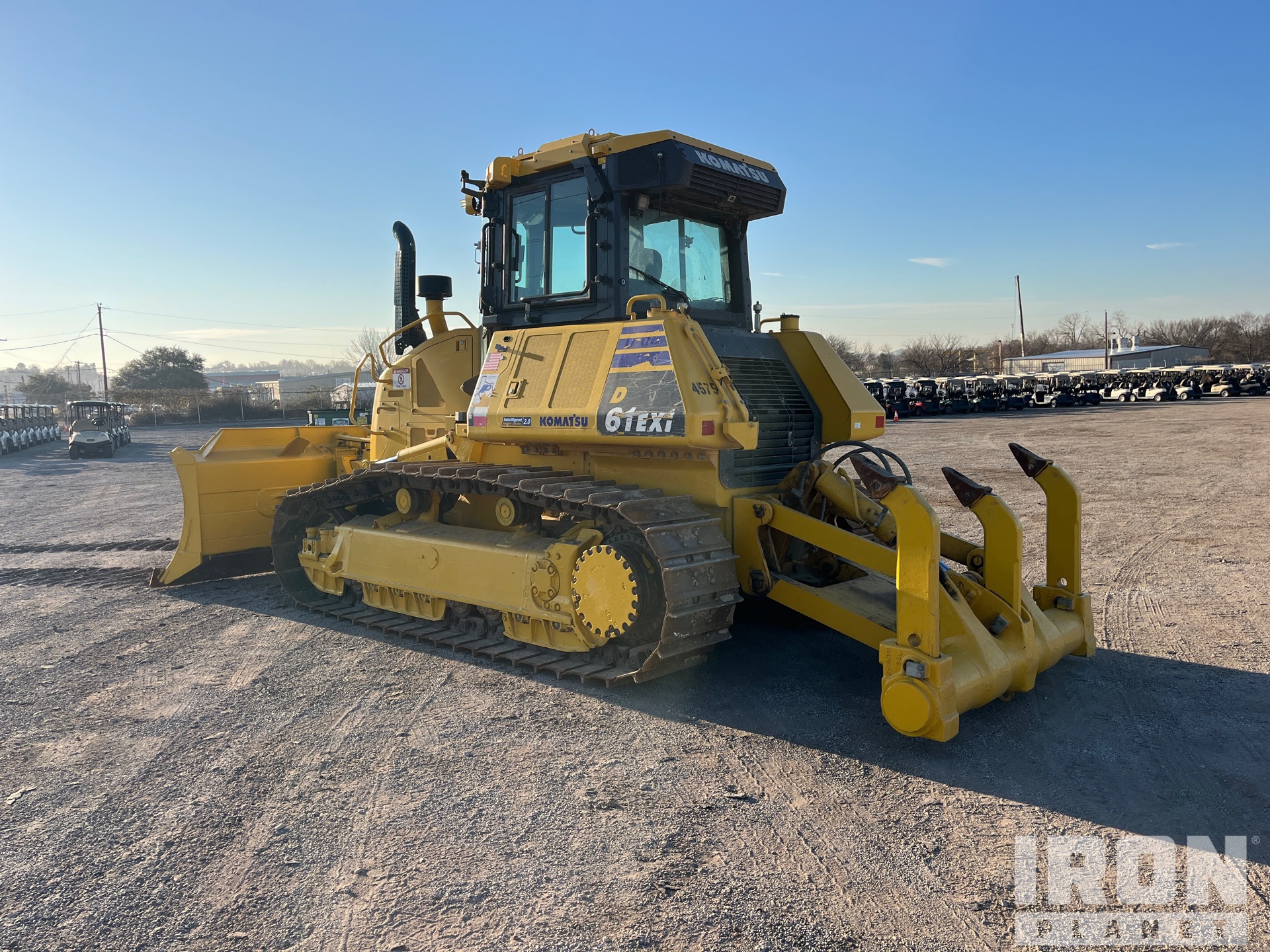

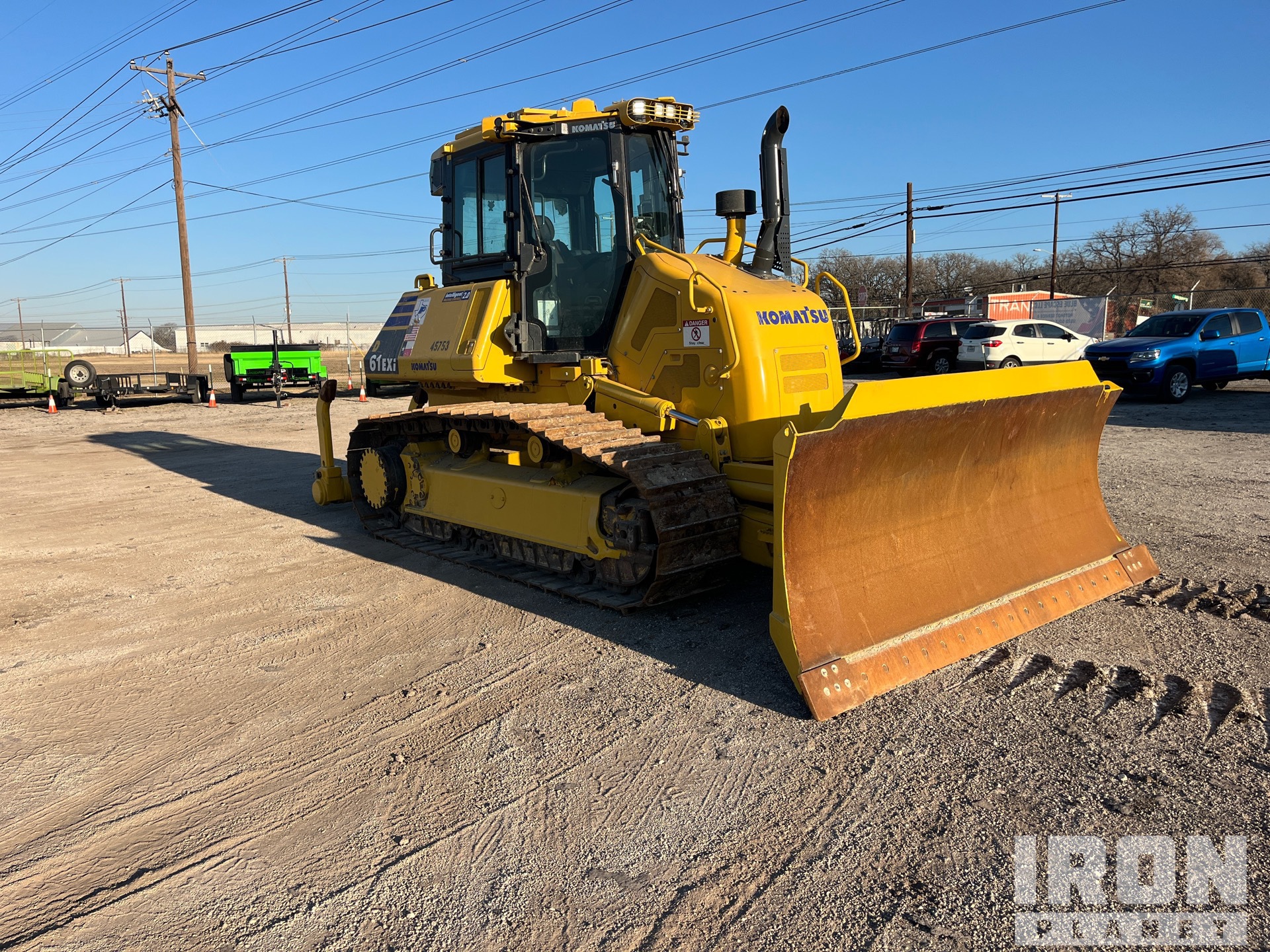

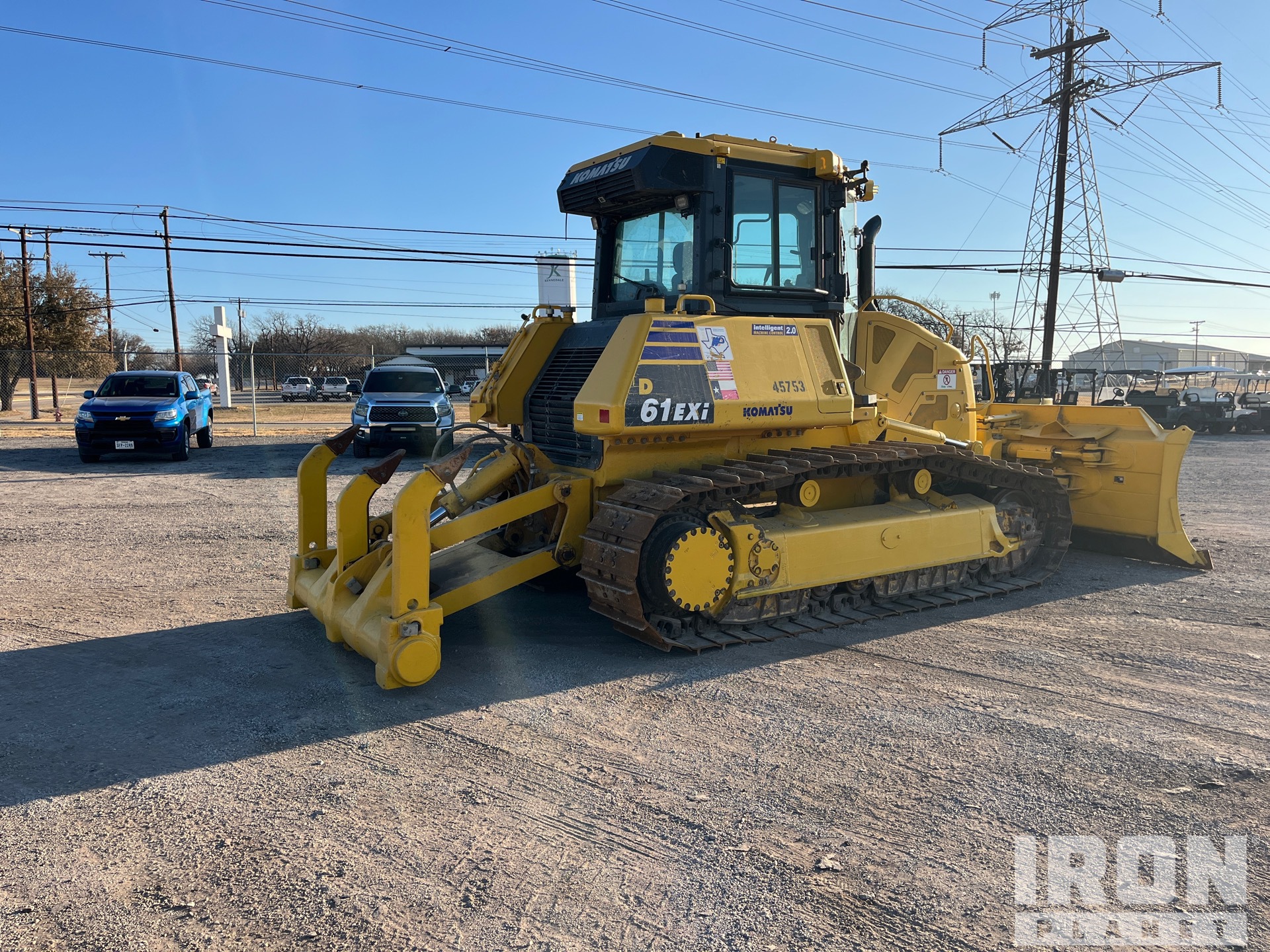

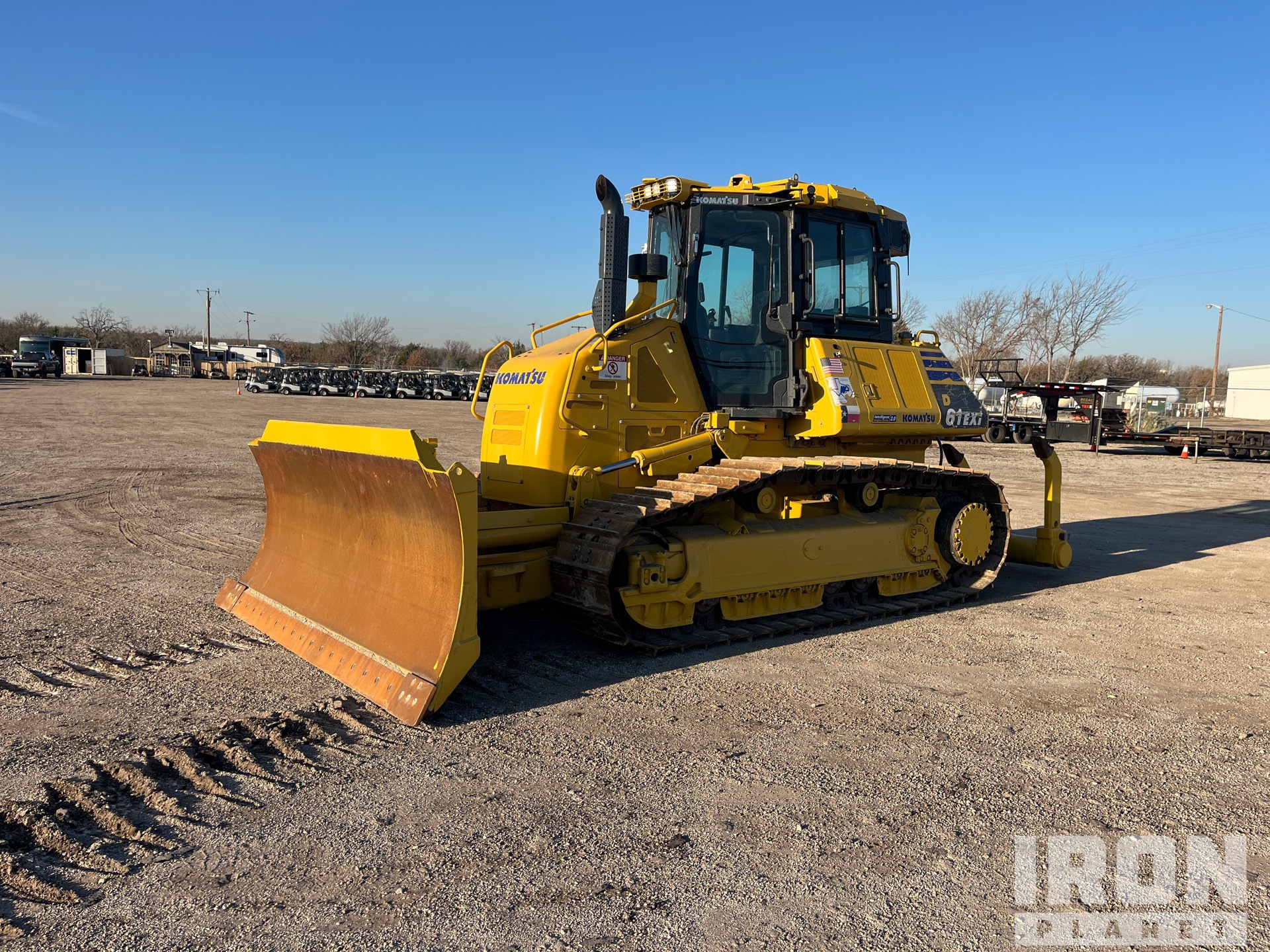

2023 Komatsu D61EXI-25 Crawler Dozer
Located
Kennedale, TX
Kennedale, TX
Usage
4,791 hrs
4,791 hrs
Serial number
KMT0D129KNA045753
KMT0D129KNA045753
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14779333
In yard
No
Features
Enclosed Cab, Air Conditioner, Rear View Camera, Pre-Wired for Grade Control, 2022 US EPA Label, Requires Diesel Exhaust Fluid, 128 in Wide PAT Blade, 1 Cylinder Multi-Shank Ripper
General Appearance
Serial Number / VIN
KMT0D129KNA045753
Paint
No visible damage
Body Panels
No visible damage or missing components
Steps/Ladders
No visible damage or missing components
Hand Rails
No visible damage or missing components
Exterior Lights
2 Inoperable / damaged / missing
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seat/Armrests
Operator seat armrest damaged
Glass
No visible damage or missing components
Mirrors
Cab Doors
No visible damage or missing components
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational, None seen
Gauges
Operational
Rear View Camera
Camera operates as intended
Grade Control Display
Grade Control display intact
Hour Meter / Odometer
4791 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Air Conditioner
The ambient temperature is too cold to check
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2022 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
No visible damage or missing components
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Service Brakes
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Auxiliary Hydraulic Plumbing
Operational, Rear
Blade Lift Cylinders
Blade Angle Cylinders
Blade Tilt Cylinders
Ripper Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Blade Cutting Edge Condition
Ripper Condition
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Tilt Linkage Pins and Bushings
Angle Linkage Pins and Bushings
Blade Trunnions/bushings
Shims remaining
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Specialty
Undercarriage
Track Link Brand
Komatsu Komatsu
Left Roller Frame
Left Track Tensioner
Left Track Pads
23.5 in Wide
Left Grouser Height
49 mm
Left Track Links
123 mm
Left Track Bushings
64 mm
Left Carrier Rollers
2 carrier rollers #1 175 mm #2 175 mm
Left Bottom Rollers
8 Bottom Rollers #1 Covered mm #2 Covered mm #3 Covered mm #4 Covered mm #5 Covered mm #6 Covered mm #7 Covered mm #8 Covered mm
Left Idler
18 mm
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
23.5 in Wide
Right Grouser Height
49 mm
Right Track Links
121 mm
Right Track Bushings
64 mm
Right Carrier Rollers
2 Carrier Rollers #1 175 mm #2 175 mm
Right Bottom Rollers
8 Bottom Rollers: #1 Covered mm #2 Covered mm #3 Covered mm #4 Covered mm #5 Covered mm #6 Covered mm #7 Covered mm #8 Covered mm
Right Idler
20 mm
Right Sprocket
