57 Photos

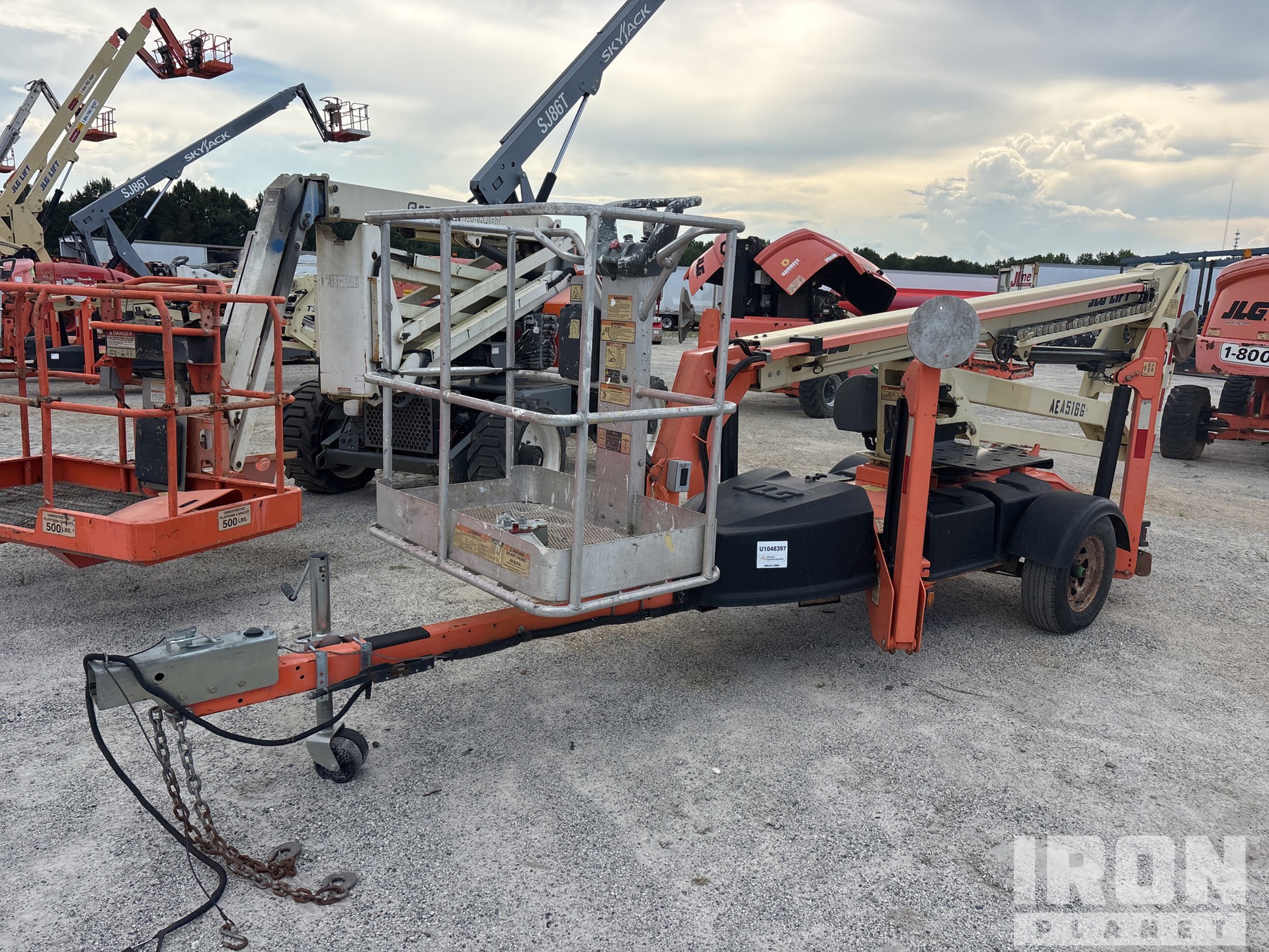

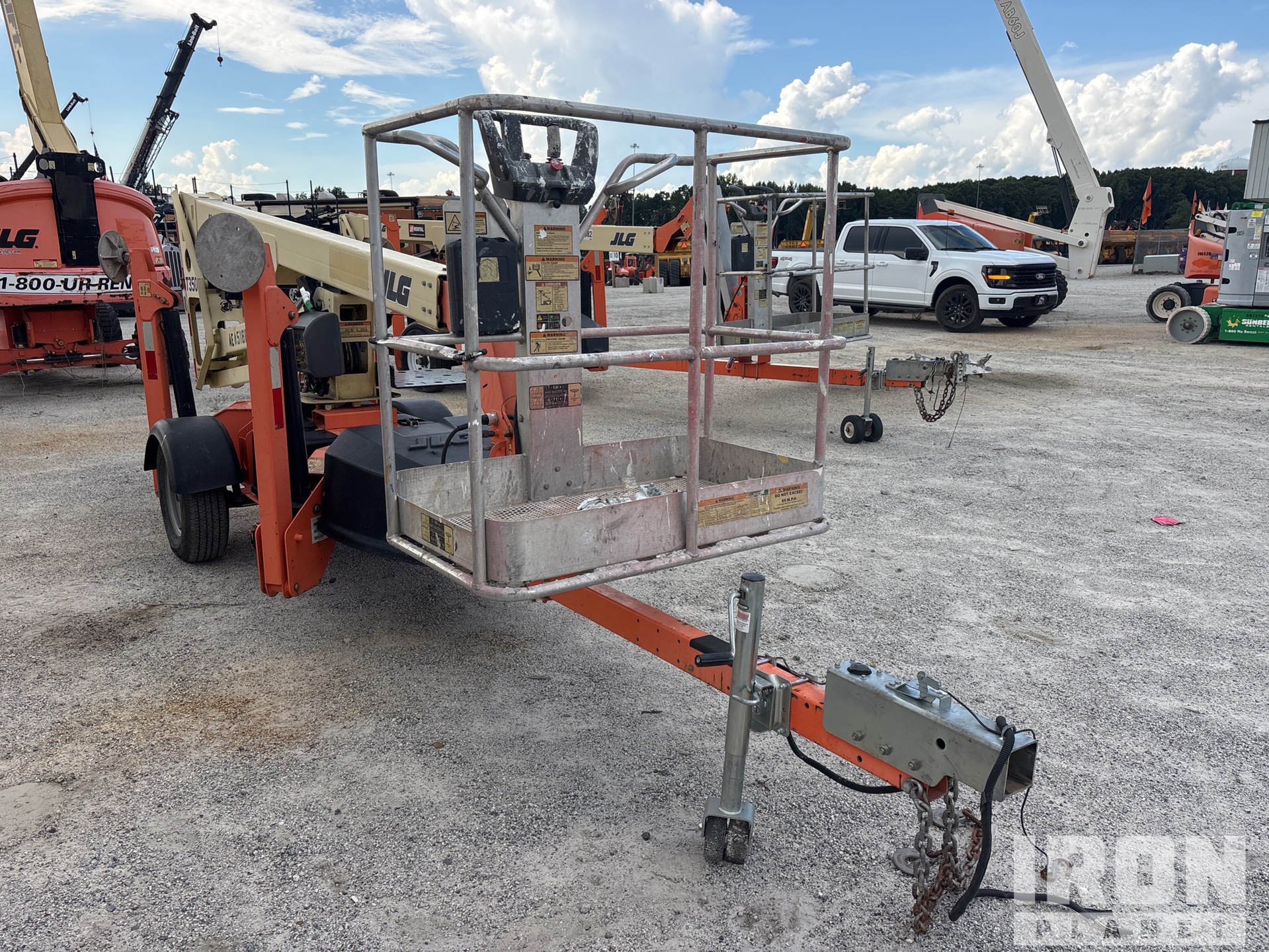

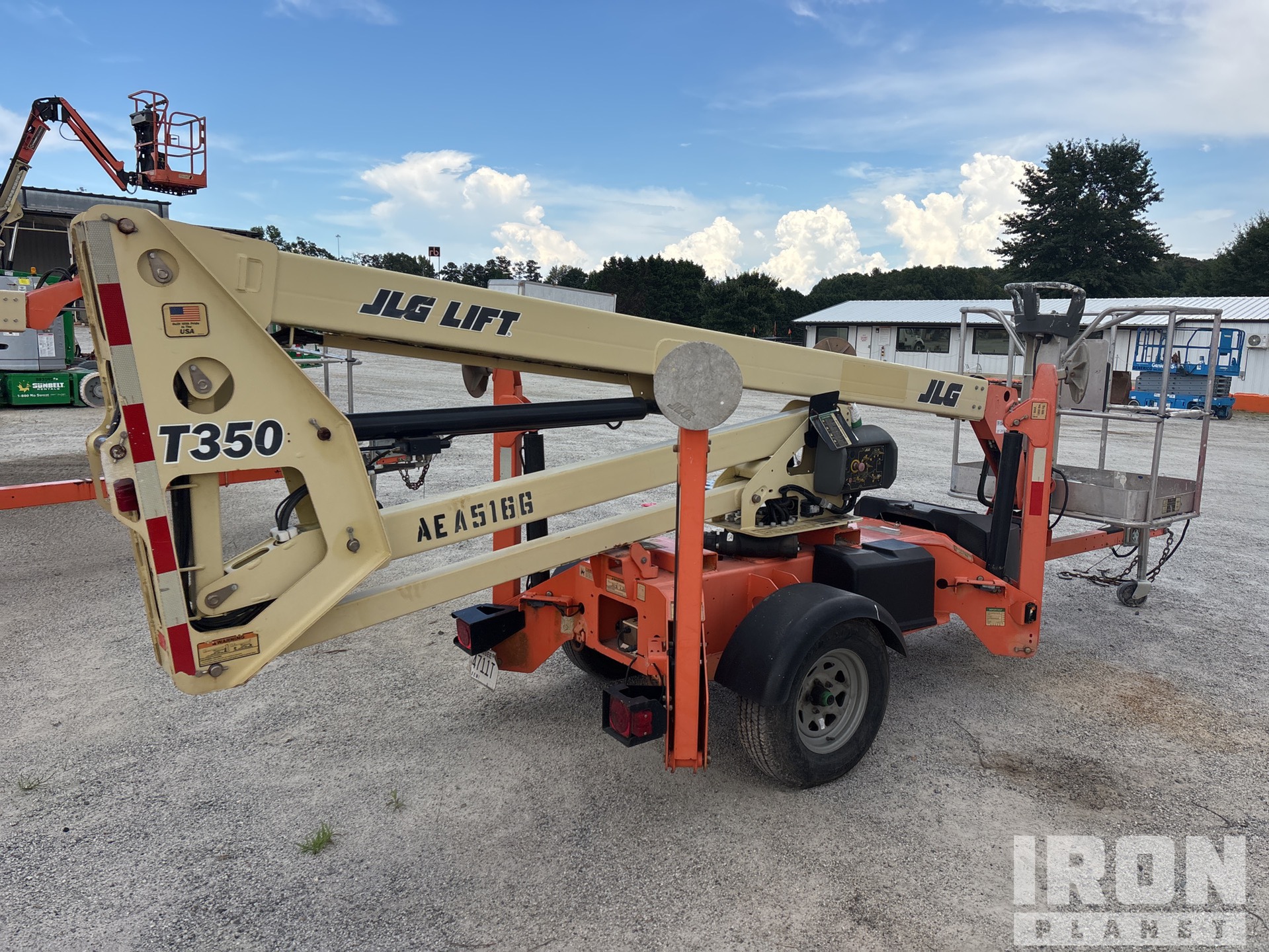

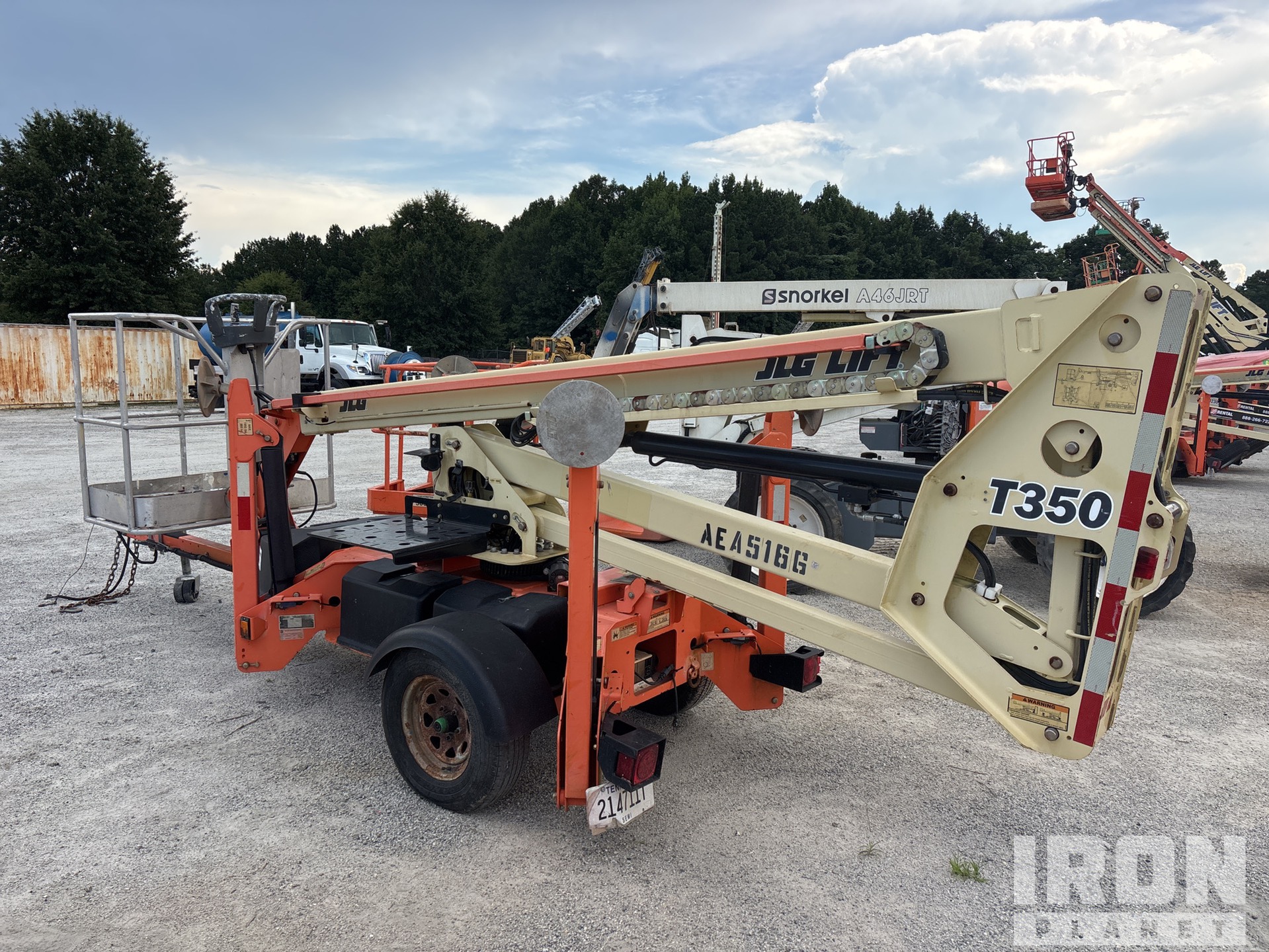

2019 JLG T-350 Towable Lift
Located
Newnan, GA
Newnan, GA
Usage
153 hrs
153 hrs
Serial number
5DYACC1J8JP010184
5DYACC1J8JP010184
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15800961
In yard
No
Features
35 ft Max Platform Height, 500 lb Max Weight Capacity, Power to Platform
General Appearance
Serial Number / VIN
5DYACC1J8JP010184
Unit Serial Number
0030010184
CE Mark
No CE mark found
Hour Meter / Odometer
153 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Safety
Current Safety Manual
No
Current Operator/Maintenance Manual
No
ANSI Guidelines
Yes
Control Station Ground
Function Controls
Limited Function Check
The main components are in place and operational as noted.
Control Station Upper
Control Console
Emergency Shut Off Switch
Operational
Safety Control Hand/Foot Switch
Operational
Function Controls
Limited Function Check
The main components are in place and operational as noted.
Electric Operating System
Operating Voltage
24 Volts
Battery Condition
Functioned during the inspection, Weak or under-charged
Cables and Connections
Battery Charger
Included Appears normal - Not operationally checked, 120 Volt, Single Phase
Limited Function Check
The electrical system was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Cracked rubber
Boom Lift Cylinder
Boom Extension Cylinder
Basket Tilt Cylinder
Frame Leveling Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Frame Condition
Left Rear Tire
Right Rear Tire
Wheel Condition
Wheel Studs, Nuts, Lugs
Turntable Bearing
Heavy movement
Swing Motor
Boom Condition
Left Side of Boom
Right Side of Boom
Boom Wear Guides
Cable Tray Ladder
Work Basket
