100 Photos

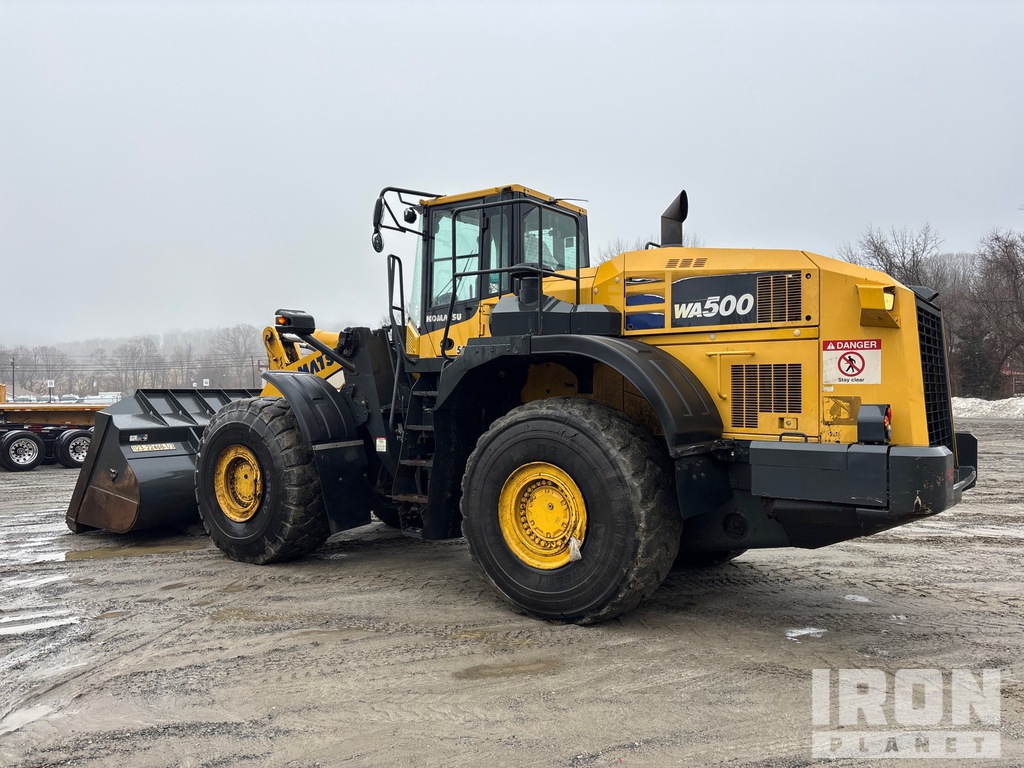

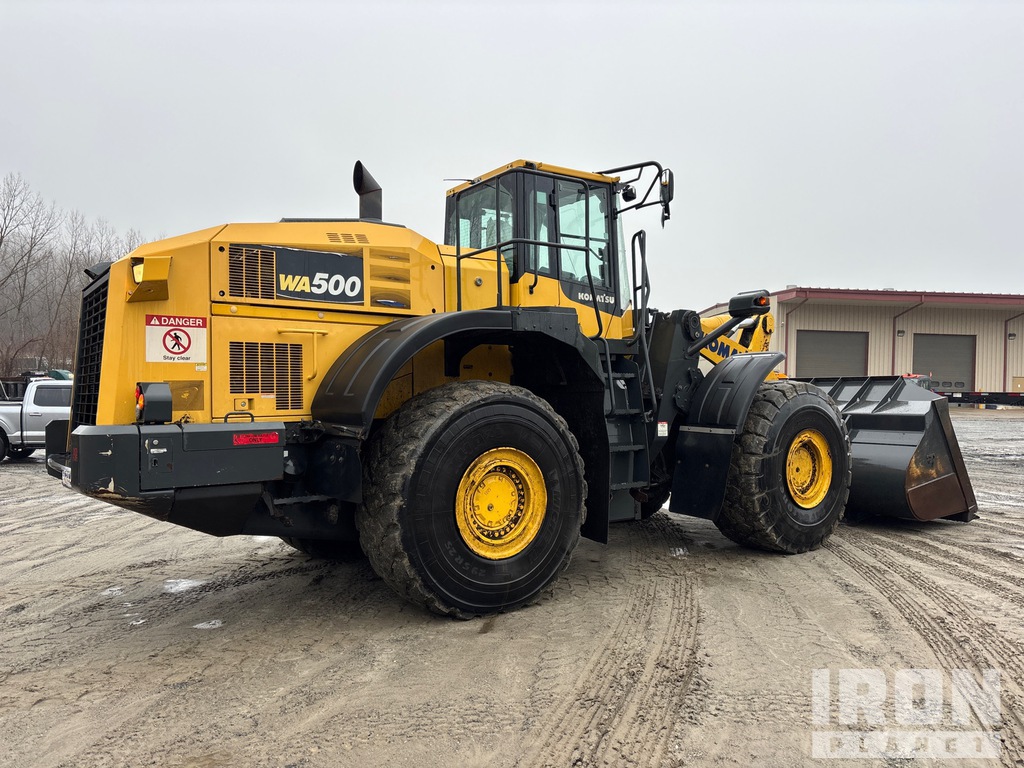

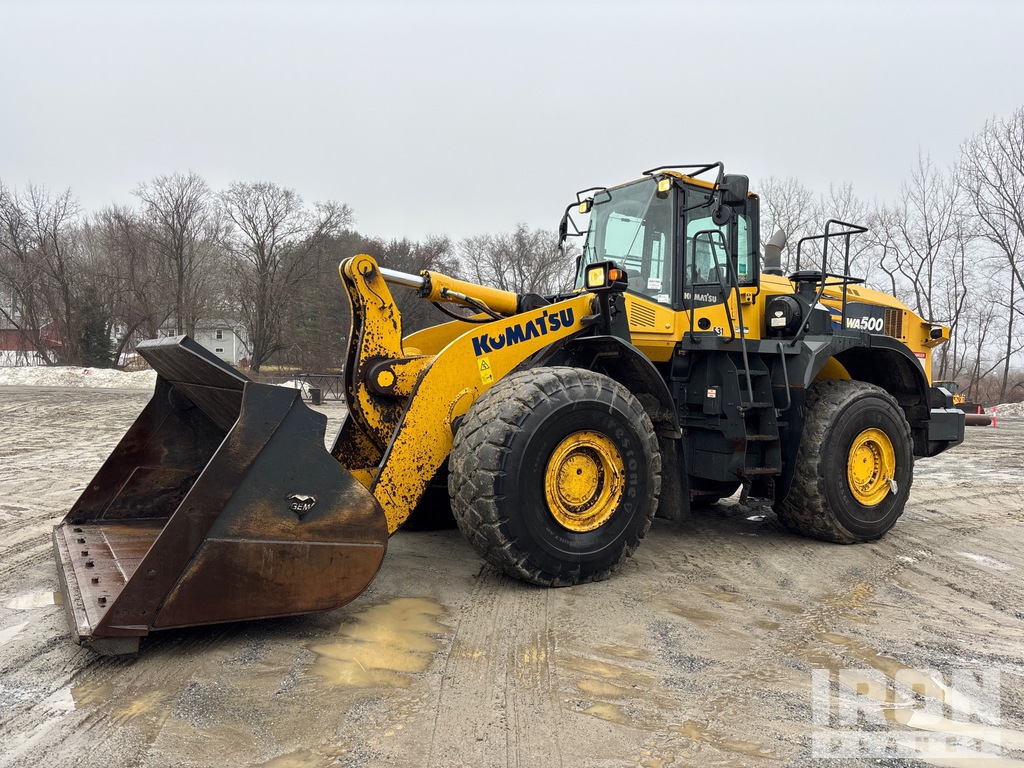

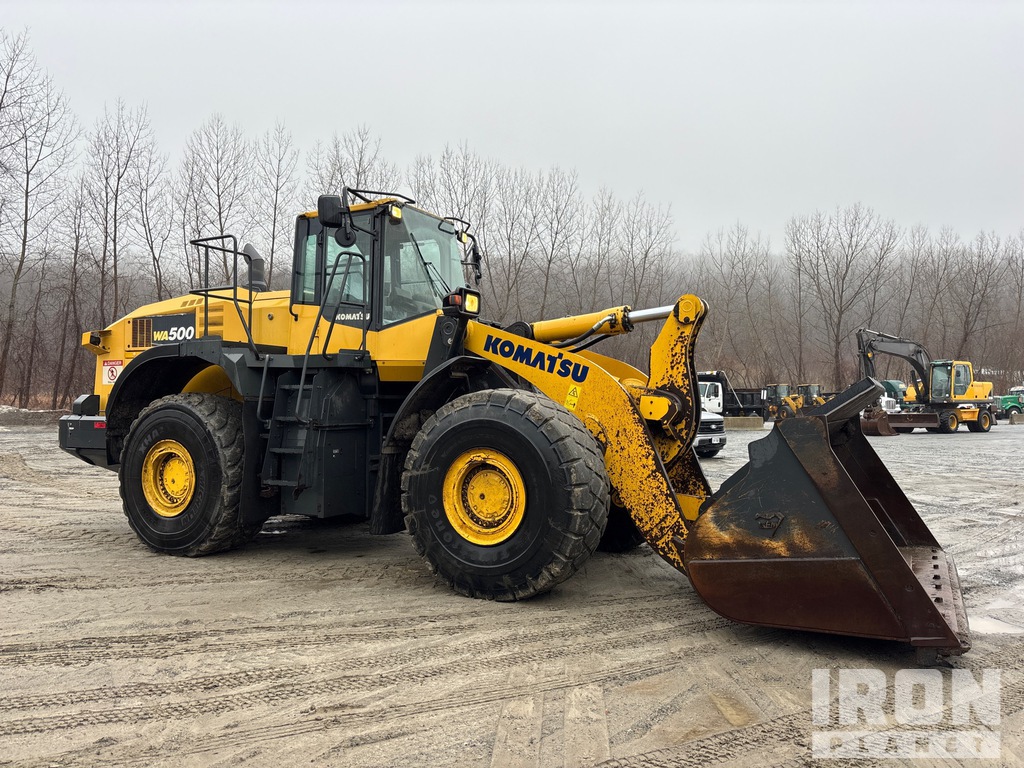

2018 Komatsu WA500-8 Wheel Loader
Located
North Franklin, CT
North Franklin, CT
Usage
17,475 hrs
17,475 hrs
Serial number
KMTWA134CJNA96631
KMTWA134CJNA96631
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15911679
In yard
No
Features
Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Joystick Steering, 2017 US EPA Label, Requires Diesel Exhaust Fluid, 29.5R25 Tires, 8 cyd 133 in Bucket
General Appearance
Serial Number / VIN
KMTWA134CJNA96631
Hour Meter / Odometer
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
The air ride controls are inoperable.
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
No oil pressure indicator
Warning Lights
Operational, L03 code warning messages and transmission light stays on
Gauges
Operational
Air Conditioner
The ambient temperature is too cold to check
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2017 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Dripping leak, There is an unusual noise from the drivetrain area. Seller Comment: The transmission has unknown issues.
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain engages in forward and reverse.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Valves
Hydraulic Tank
Low fluid level
Hoses (Hydraulics)
Loader Lift Cylinders
Bucket Tilt Cylinders
Steering Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Articulating Center Pins
Brake Type
Hydraulic
Master Cylinder
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Frame Condition
Tire Brands
Left Front: Firestone, Left Rear: Michelin, Right Rear: Michelin, Right Front: Firestone
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs, Nuts, Lugs
Lift Arm Condition
Chassis to Arm Pins
Tilt Linkage
Tilt Linkage Pins and Bushings
Bucket to Arm Pins
Limited Function Check
The main chassis components were operational in a limited check.
Specialty
Loader Bucket Condition
Loader Bucket Cutting Edge/Shanks/Teeth
The rubber edge is worn/damaged.
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | transmission | |
|---|---|---|---|
| date of analysis | Mar 25, 2026 | Mar 25, 2026 | Mar 25, 2026 |
| Silicon | 4.73 PPM | 0.77 PPM | 7.39 PPM |
| Tin | 0.45 PPM | 0.19 PPM | 0.72 PPM |
| Silver | 0 PPM | 0.02 PPM | 0 PPM |
| Aluminum | 0.59 PPM | 1.77 PPM | 0.34 PPM |
| Chromium | 0.68 PPM | 0.57 PPM | 0.16 PPM |
| Lead | 3.99 PPM | 1.17 PPM | 1.28 PPM |
| Copper | 1.59 PPM | 3.56 PPM | 157.21 PPM |
| Nickel | 0.24 PPM | 0.04 PPM | 0.03 PPM |
| Iron | 97.68 PPM | 14.03 PPM | 70.08 PPM |
| Glycol | NEG | N/A | N/A |
| Water | NEG | N/A | N/A |
| Fuel | <5% | <5% | <5% |
