104 Photos

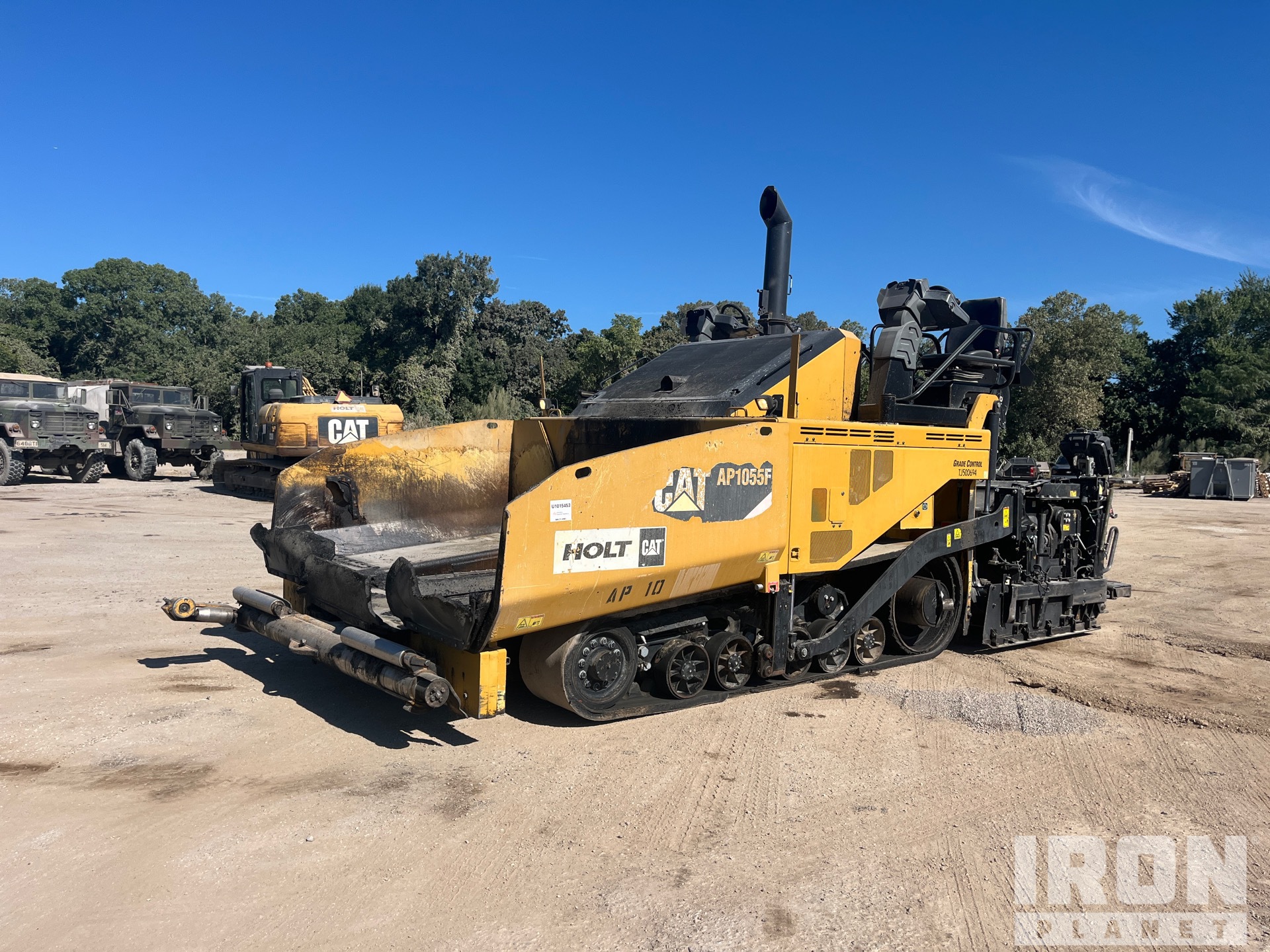

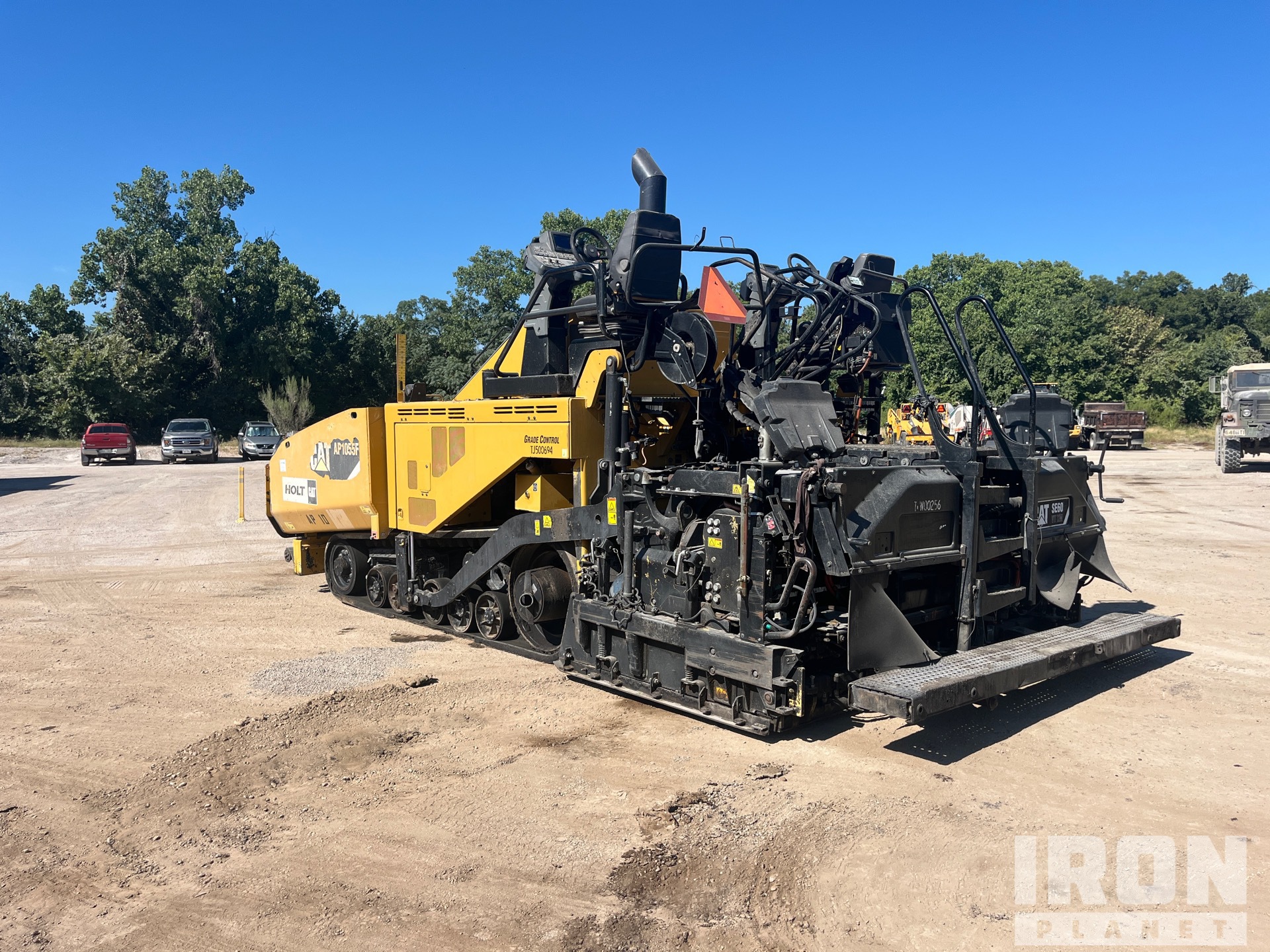

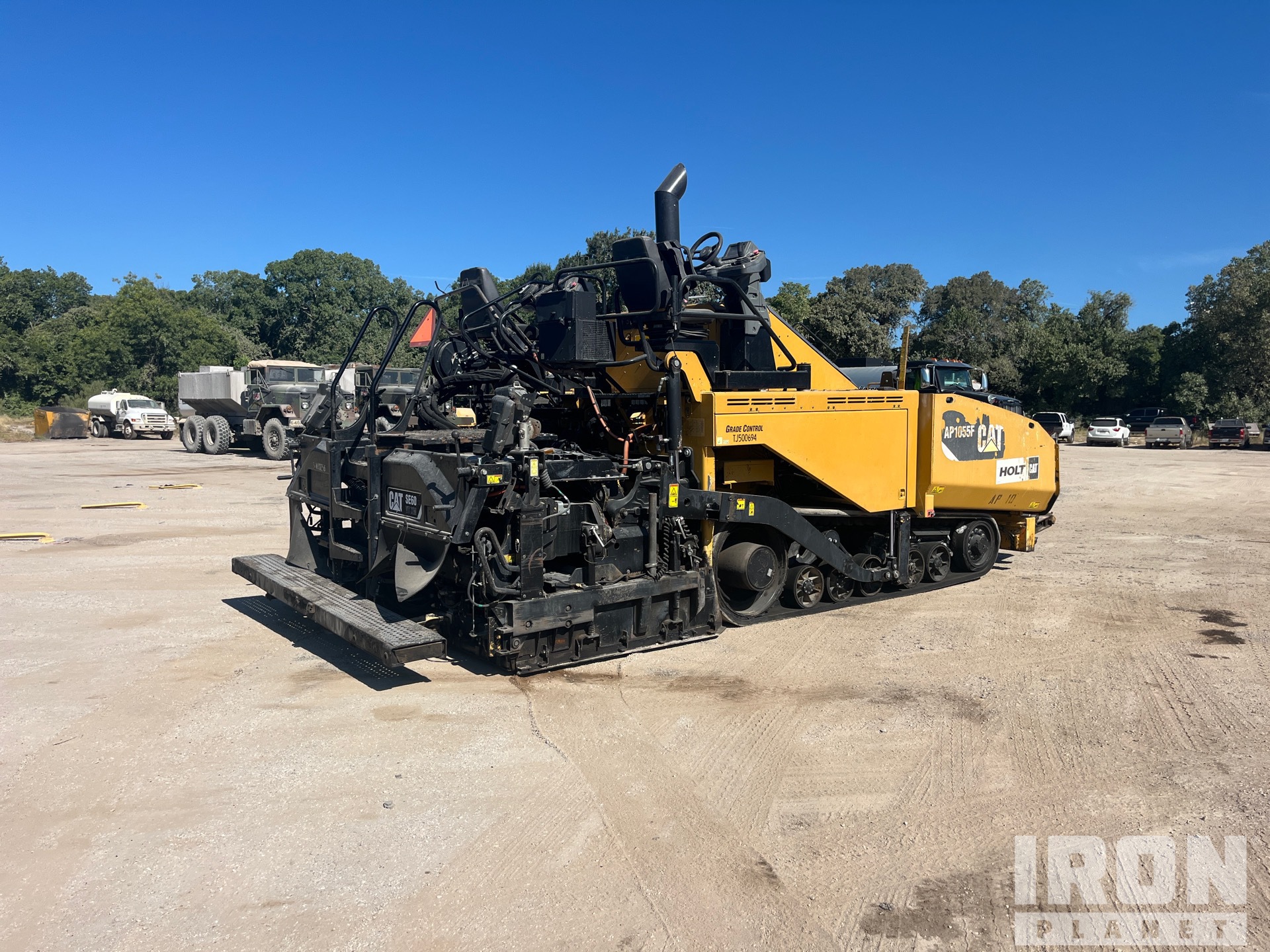

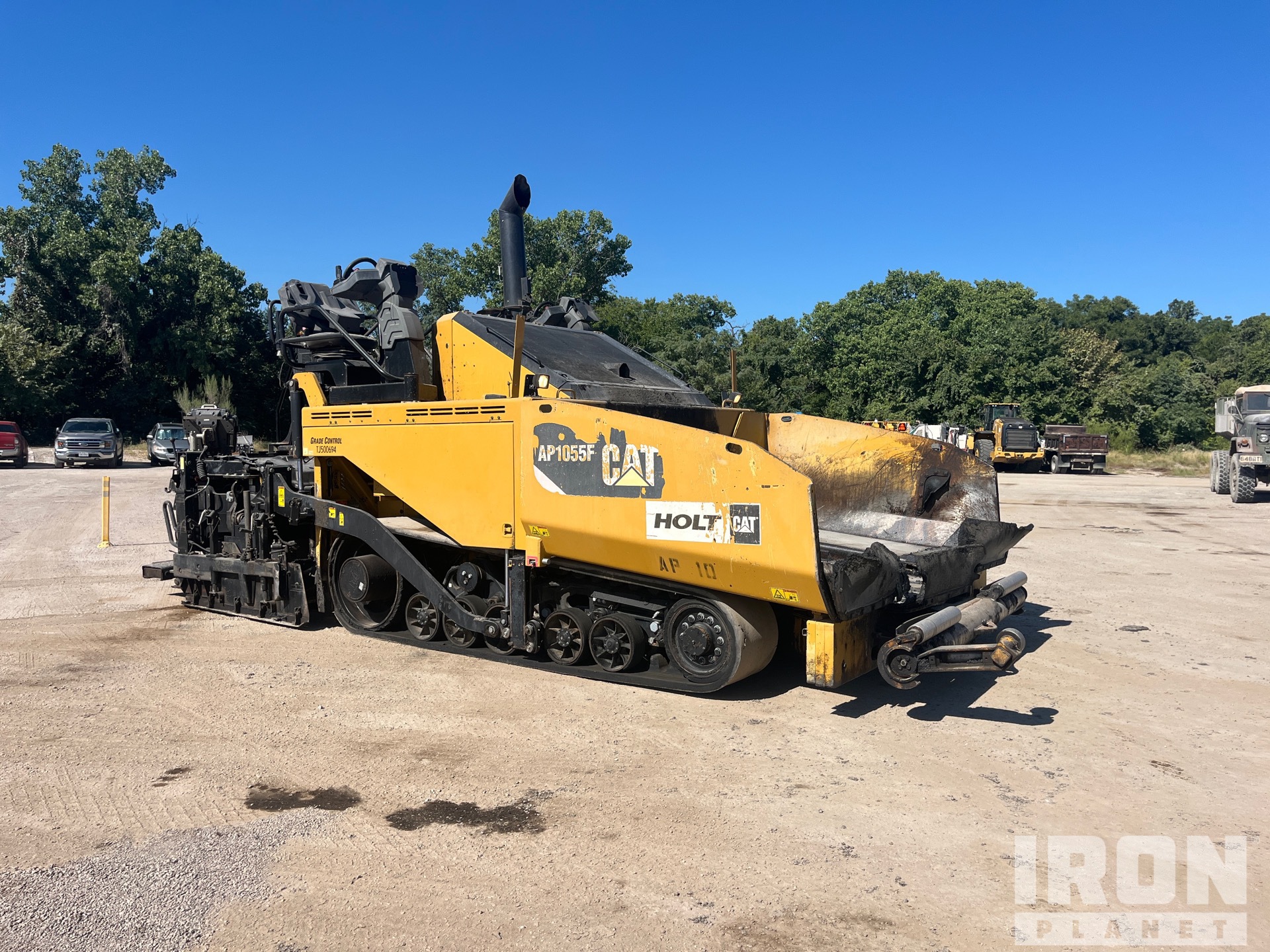

2018 Cat AP1055F Track Asphalt Paver
Located
Euless, TX
Euless, TX
Usage
11,984 hrs
11,984 hrs
Serial number
CATAP105CTJ500694
CATAP105CTJ500694
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15606476
In yard
No
Features
2017 US EPA Label, Requires Diesel Exhaust Fluid, Cat SE60VTXW Electric Heated 10 ft - 19 ft 6 in Screed, Truck Hitch, 18 in Rubber Tracks
General Appearance
Serial Number / VIN
CATAP105CTJ500694
CE Mark
No CE mark found
Hour Meter / Odometer
11984 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Operational
Safety
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Hydraulic Controls
Steering Control
Drivetrain Controls
Warning Lights
None seen
Screed Control Switches
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2017 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Left Drive Motor
Right Drive Motor
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hydraulic Motors
Hoses (Hydraulics)
Hopper Wing Cylinders
Screed Tow Point Cylinders
Screed Lift Cylinders
Screed Extension Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Screed Serial Number
Serial Number: TLW00256
Screed Tow Arms
Screed Bottom Plate
Hopper Wings
Metering Gates
Not tested
Auger/ Screw Condition
Feed Conveyors
Conveyor Drive Chains and Sprockets
Push Rollers
Truck Hitch
Not operationally checked
Screed Heaters
Not operationally checked
Screed Slope Adjustment
Powered adjustment, Not operationally checked
Screed Crown Adjustment
Powered adjustment, Not operationally checked
Screed Tow Point Adjustment
Powered adjustment
Mat Thickness Adjusters
Powered adjustment, Not operationally checked
Extension Tubes
End Gates
Spray Down System
Not operationally checked
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Grouser Height
. mm
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Grouser Height
. mm
Right Track Rollers
Right Idler
Right Sprocket
