71 Photos
2017 Snorkel 660SJ 4WD Diesel Telescopic Boom Lift
Located
Newnan, GA
Newnan, GA
Usage
2,776 hrs
2,776 hrs
Serial number
660SJ11170200023
660SJ11170200023
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15768788
In yard
Yes
Features
66 ft Max Platform Height, 600 lb Max Weight Capacity, Jib, Power to Platform, 2015 US EPA Label, Kubota V2403-M-T-ET05 4 Cylinder 44.0 kW 2.4 L Diesel Engine, 355/55D625 Tires
Notes
Please be aware that these aerial units require proper safety harness and PPE to function test as well as load - Buyer is responsible for loading and removal of this item

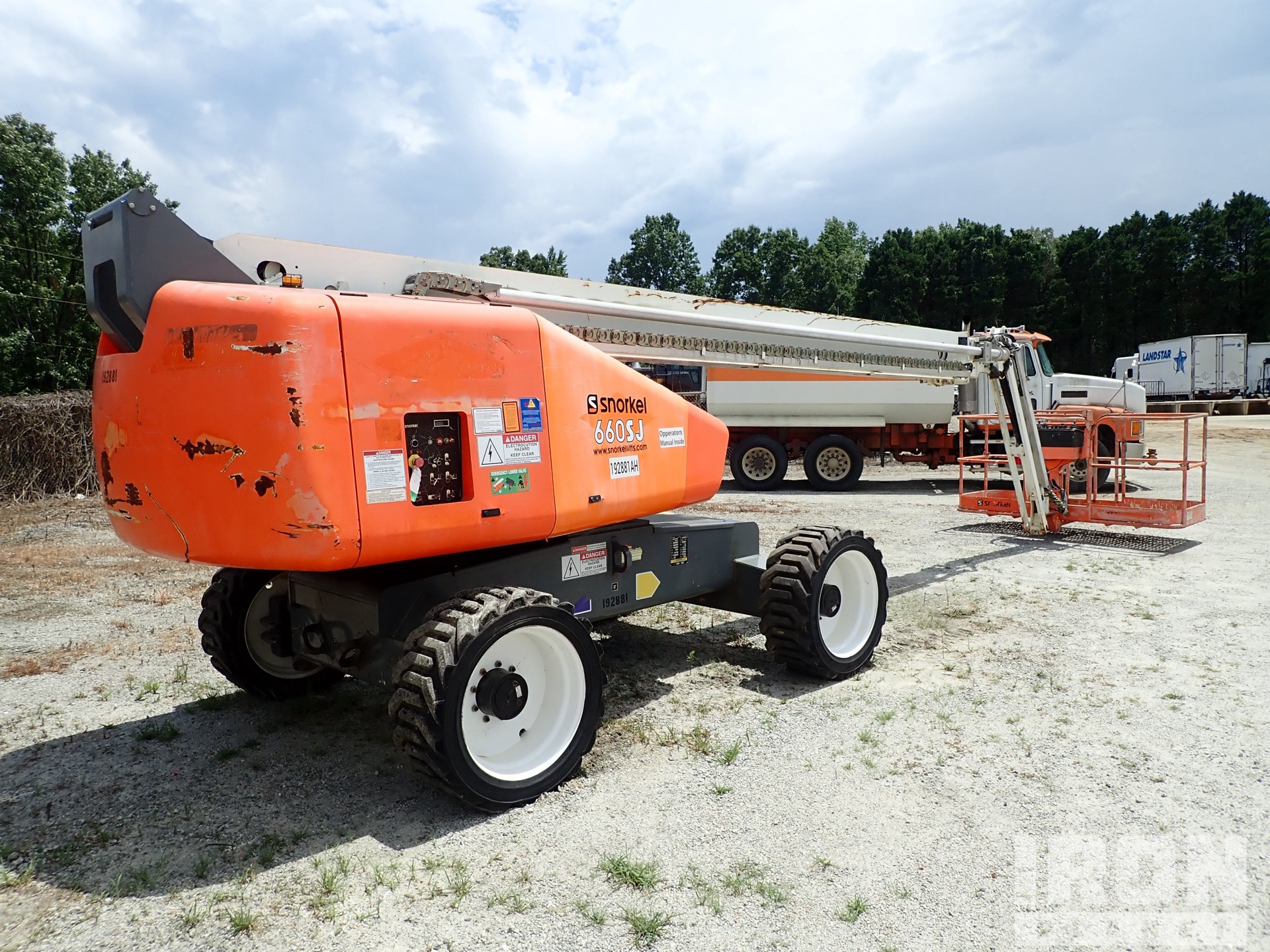

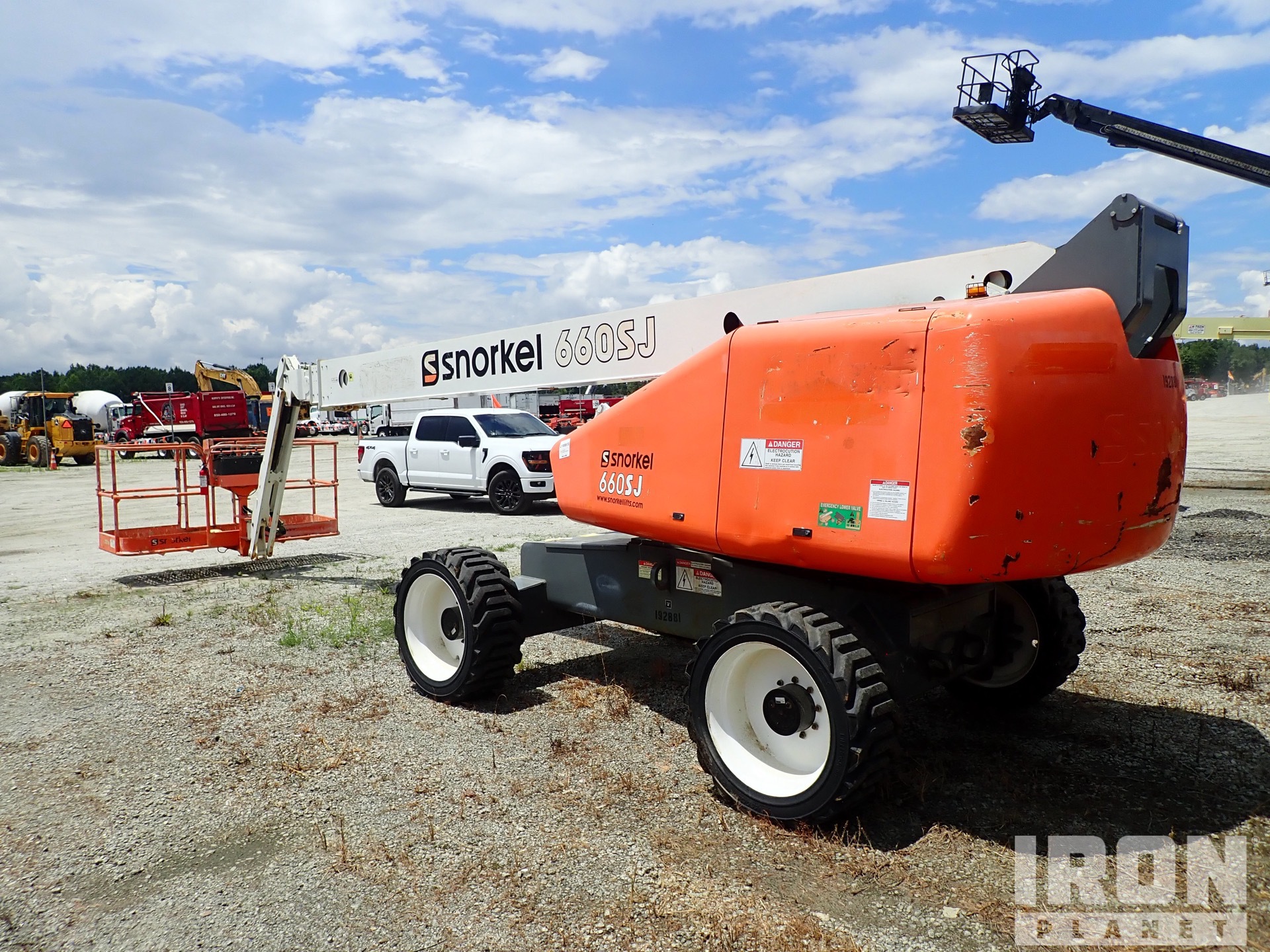

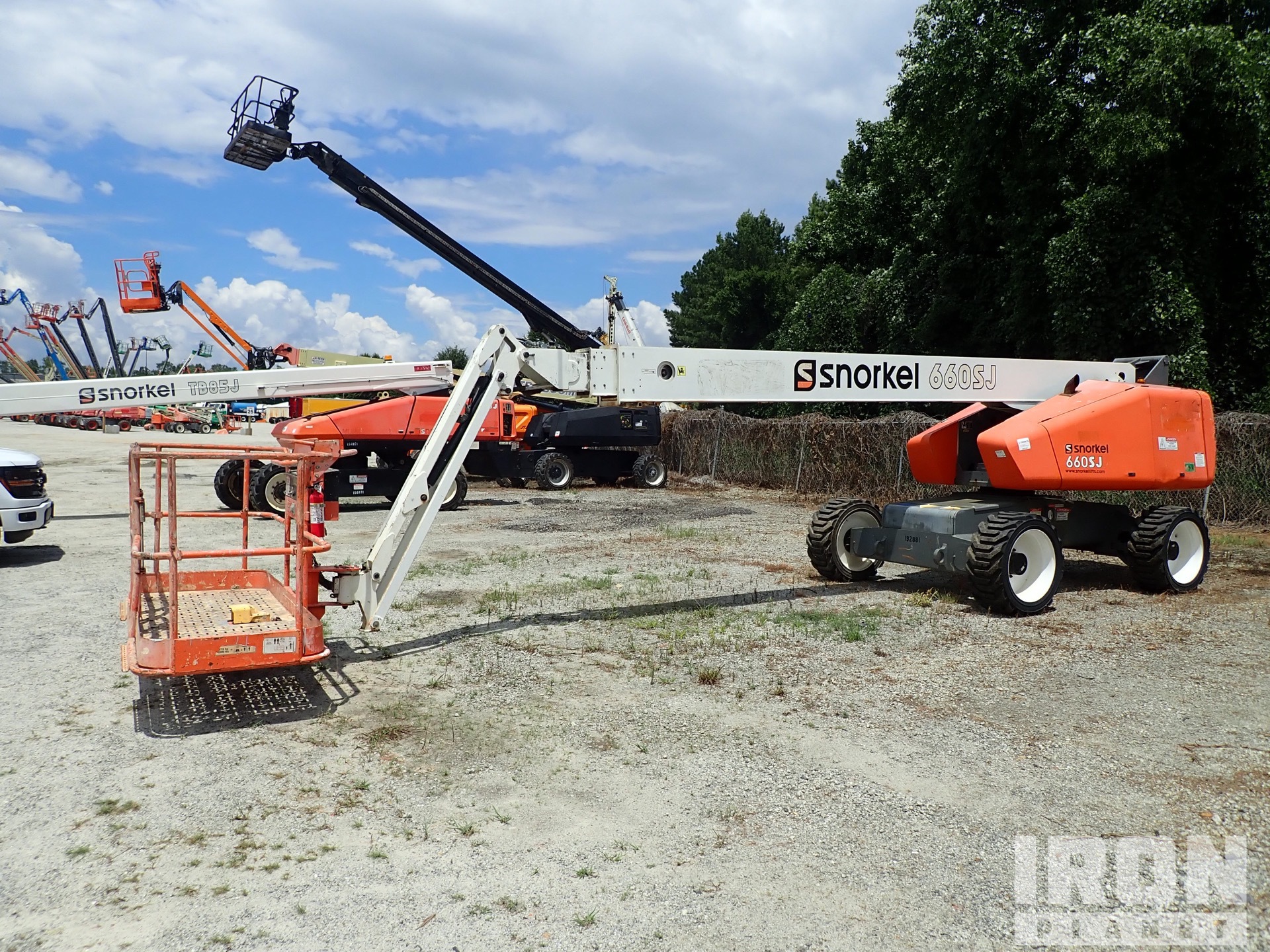

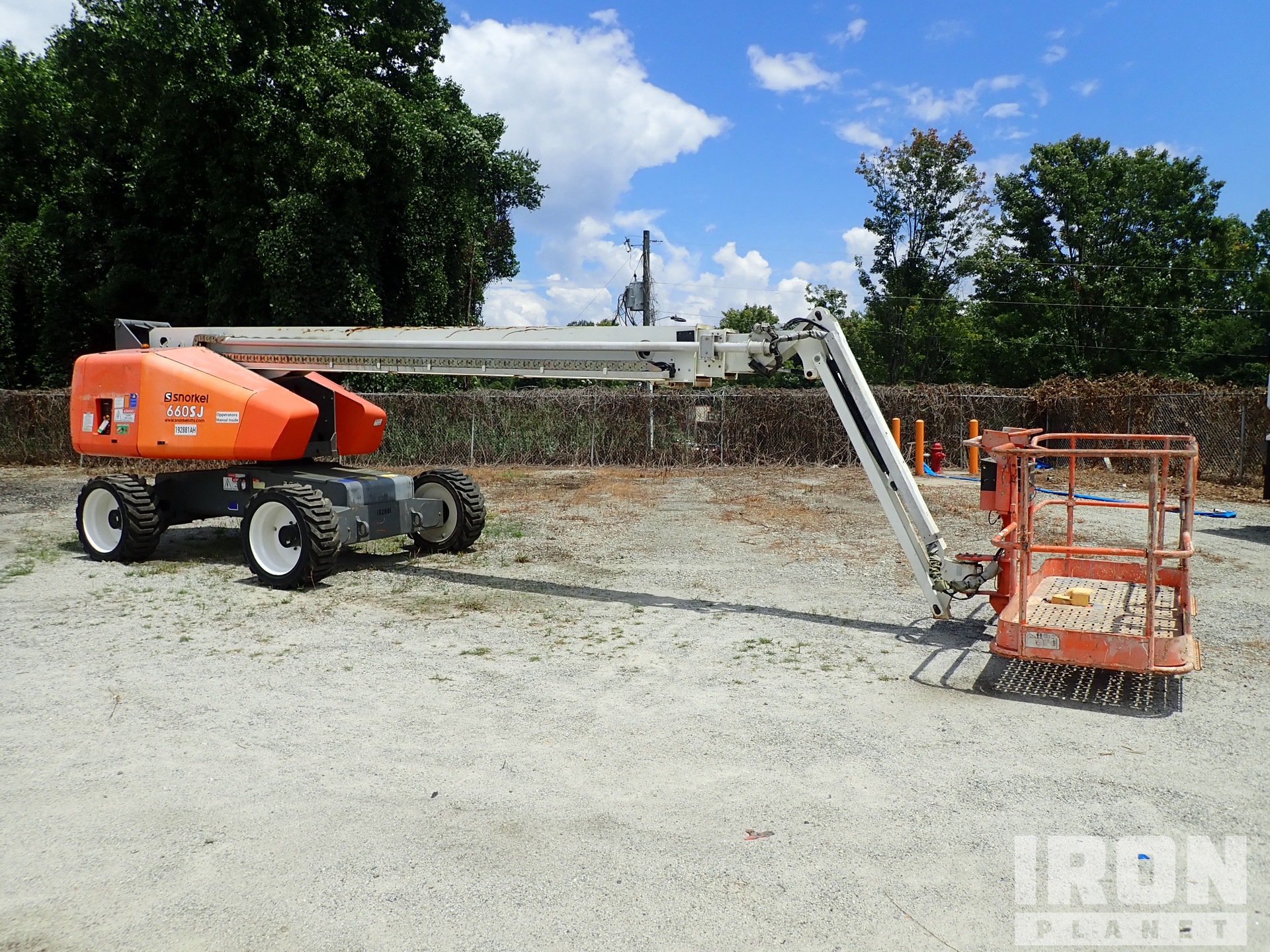

General Appearance
Serial Number / VIN
660SJ11170200023
CE Mark
No CE mark found
Hour Meter / Odometer
2776 hrs, Hour meter digits are distorted and difficult to read.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Swing Brake
Operational
Current Safety Manual
Yes
Current Operator/Maintenance Manual
Yes
ANSI Guidelines
Yes
Control Station Ground
Function Controls
Jib switch inoperable
Limited Function Check
The main components are in place and operational as noted.
Control Station Upper
Control Console
Emergency Shut Off Switch
Operational
Safety Control Hand/Foot Switch
Operational
Function Controls
Limited Function Check
The main components are in place and operational as noted. Key switch gets stuck
Engine
Emissions Status
2015 US EPA Label
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Fuel System
Operational
Exhaust System
No visible damage or missing components
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Left Front Final Drive
Left Front Drive Motor
Left Rear Final Drive
Left Rear Drive Motor
Right Rear Final Drive
Right Rear Drive Motor
Right Front Final Drive
Right Front Drive Motor
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Steering Cylinders
Boom Lift Cylinder
Secondary Boom Cylinder
Boom Extension Cylinder
Jib Cylinder
Basket Tilt Cylinder
Dripping leak
Basket Rotator Motor
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Frame Condition
Brake System
The brake system functioned, stopping and holding the machine.
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs, Nuts, Lugs
Turntable Bearing
Swing Motor
Hydraulic Center Swivel
Boom Condition
Left Side of Boom
Right Side of Boom
Boom Wear Guides
Jib Condition
Cable Tray Ladder
Work Basket
Undercarriage
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jul 22, 2026 | Jul 22, 2026 |
| Silicon | 0 PPM | 0.76 PPM |
| Tin | 1.57 PPM | 1.31 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0.23 PPM | 0.67 PPM |
| Chromium | 0.25 PPM | 0.23 PPM |
| Lead | 0.32 PPM | 1.1 PPM |
| Copper | 0.87 PPM | 7.7 PPM |
| Nickel | 0.15 PPM | 0.03 PPM |
| Iron | 8.7 PPM | 3.22 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
