86 Photos
2017 Ditch Witch JT40 Directional Drill
Located
Stanley, ND
Stanley, ND
Usage
2,892 hrs
2,892 hrs
Serial number
DWPJT40XJH0000035
DWPJT40XJH0000035
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15309595
In yard
No
Features
Enclosed Cab, Air Conditioner, E-Stops, Drill Guidance System, 2017 US EPA Label, Cummins QSB4.5 4 Cylinder 160 hp 4.5 L Diesel Engine, Mud Mixing System, Drill Rod Loading System, 40 Rods Drill Rods, 15 in Rubber Tracks

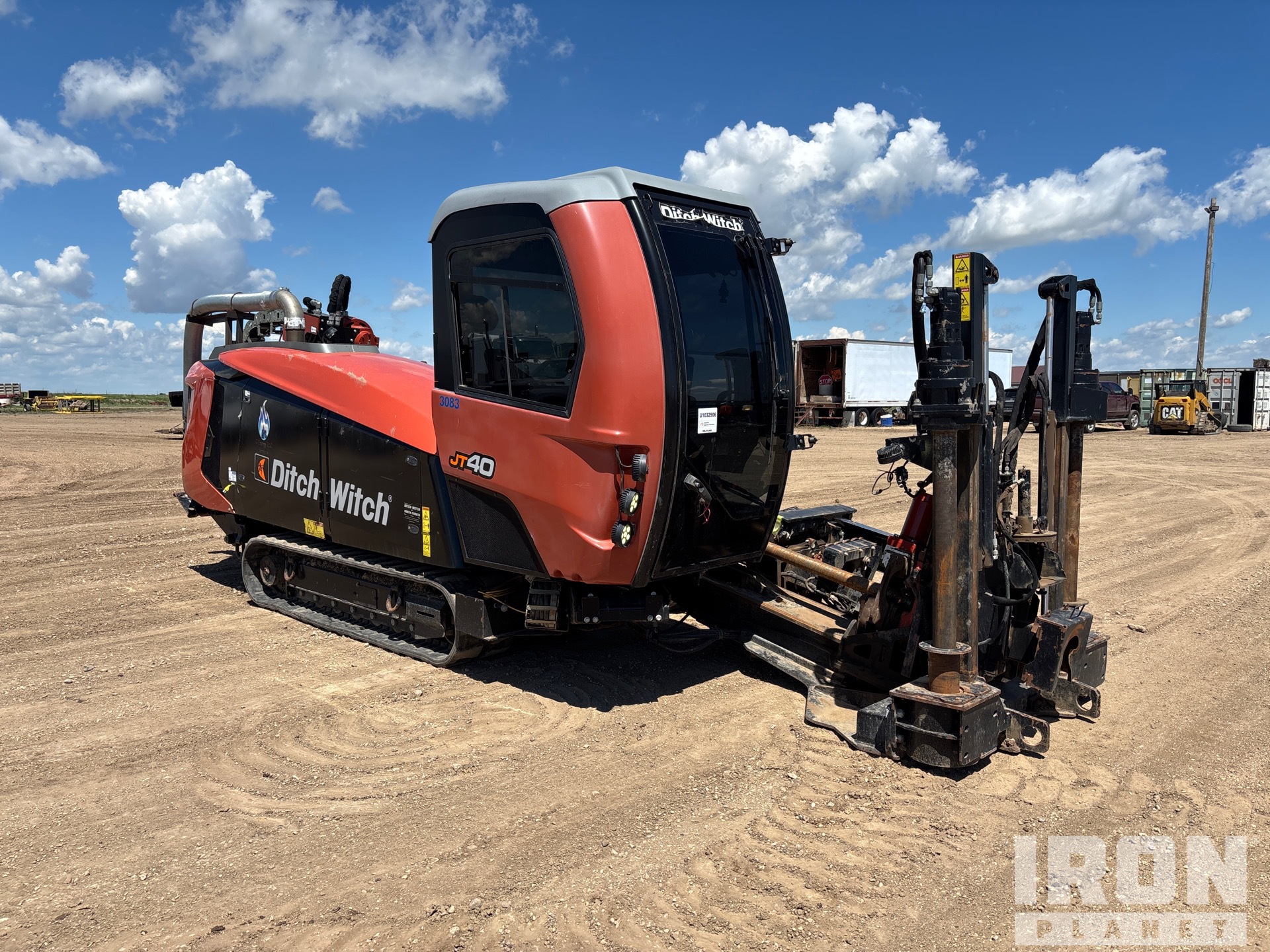

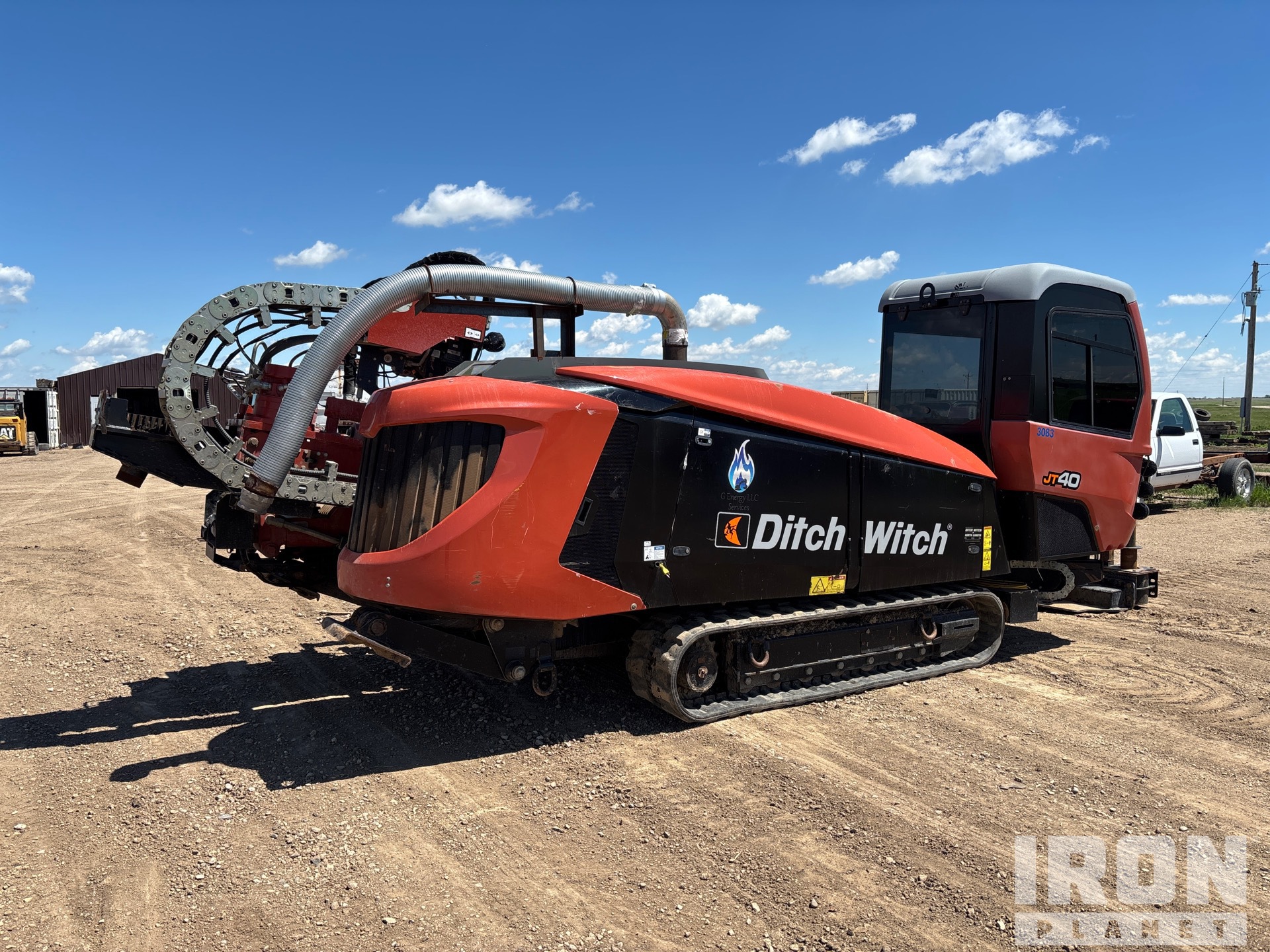

General Appearance

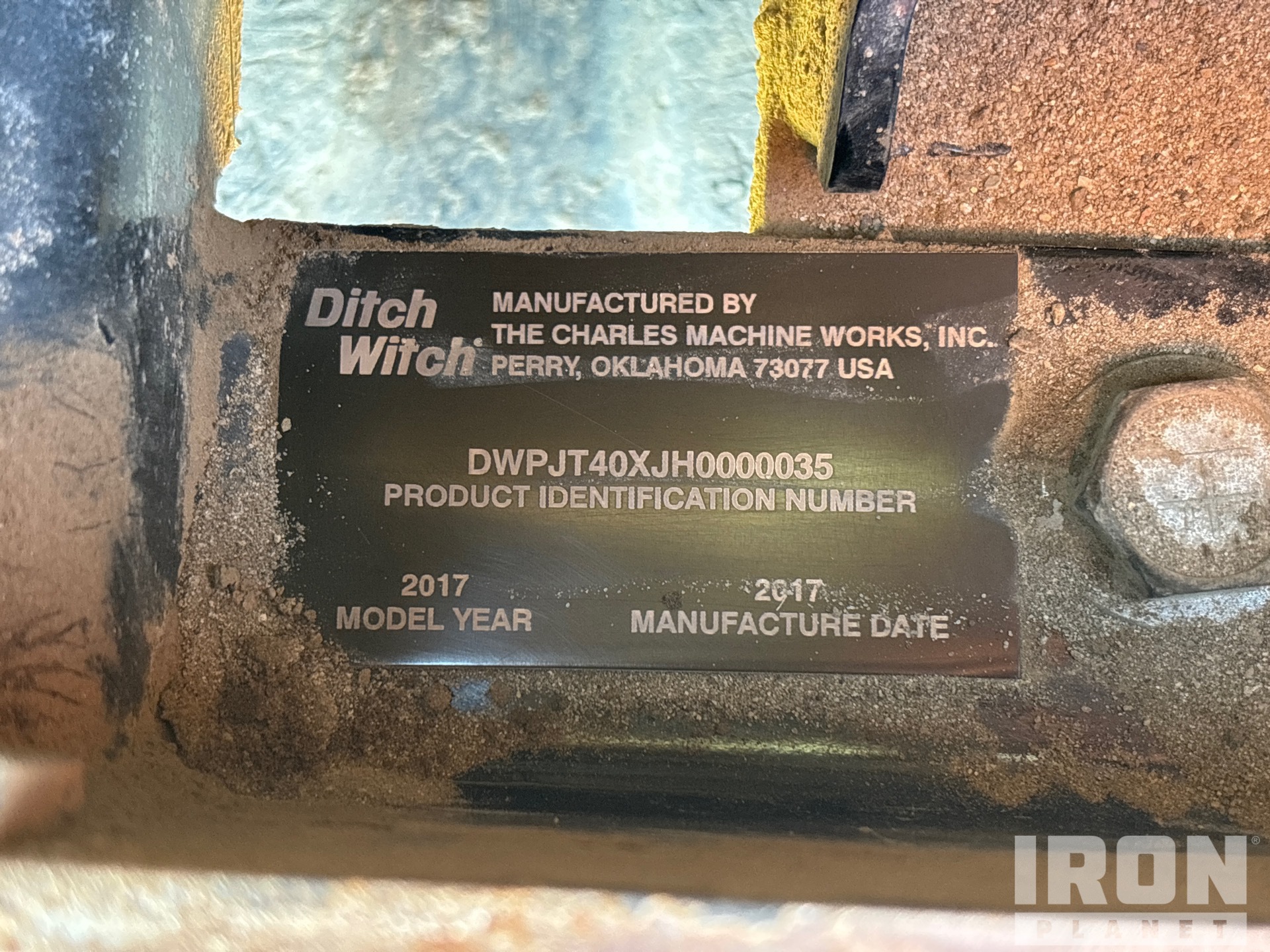

Serial Number / VIN
DWPJT40XJH0000035
Hour Meter / Odometer
2892 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational, Voltage limiter light stays on
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2017 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Low fluid level
Hoses (Hydraulics)
Hydraulic Motors
Hydraulic Center Swivel
Boom Lift Cylinder(s)
Stabilizer Cylinders
Mast Angle Cylinders
Drifter Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Mast Condition
Main Frame
Bottom Covers
Turntable Bearing
Stake Down System
Thrust Chain / Sprockets
Kelly Drive Gear Box
Kelly Slide Wear Plates
Hyd. Hose Carrier System
Vices
Water / Mud Pump
Drill Rod Loading System
Operational
Drill Rod Racks
1 rod racks
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Grouser Height
20 mm
Left Track Rollers
Left Idler
Right Grouser Height
20 mm
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jun 26, 2026 |
| Silicon | 1.21 PPM |
| Tin | 2.04 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0.2 PPM |
| Lead | 1.22 PPM |
| Copper | 0.38 PPM |
| Nickel | 0.07 PPM |
| Iron | 8.16 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
