104 Photos
2015 Powerscreen Trakpactor 320 Tracked Impact Crusher Plant
Located
Louisville, KY
Louisville, KY
Usage
5,978 hrs
5,978 hrs
Serial number
PIDTP320JOMF20009
PIDTP320JOMF20009
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12960614
In yard
No
Features
Scania Diesel Engine, Requires Diesel Exhaust Fluid, Vibratory Pan Feeder w/Hydraulic Fold Hopper Wings, Terex CP027 Impact Crusher, 39 in Wide End Discharge Conveyor, 30 in x 5 ft 4 in Cross Belt Magnet, Cable Remote Control, 16 in Triple Grouser Track Shoes
General Appearance

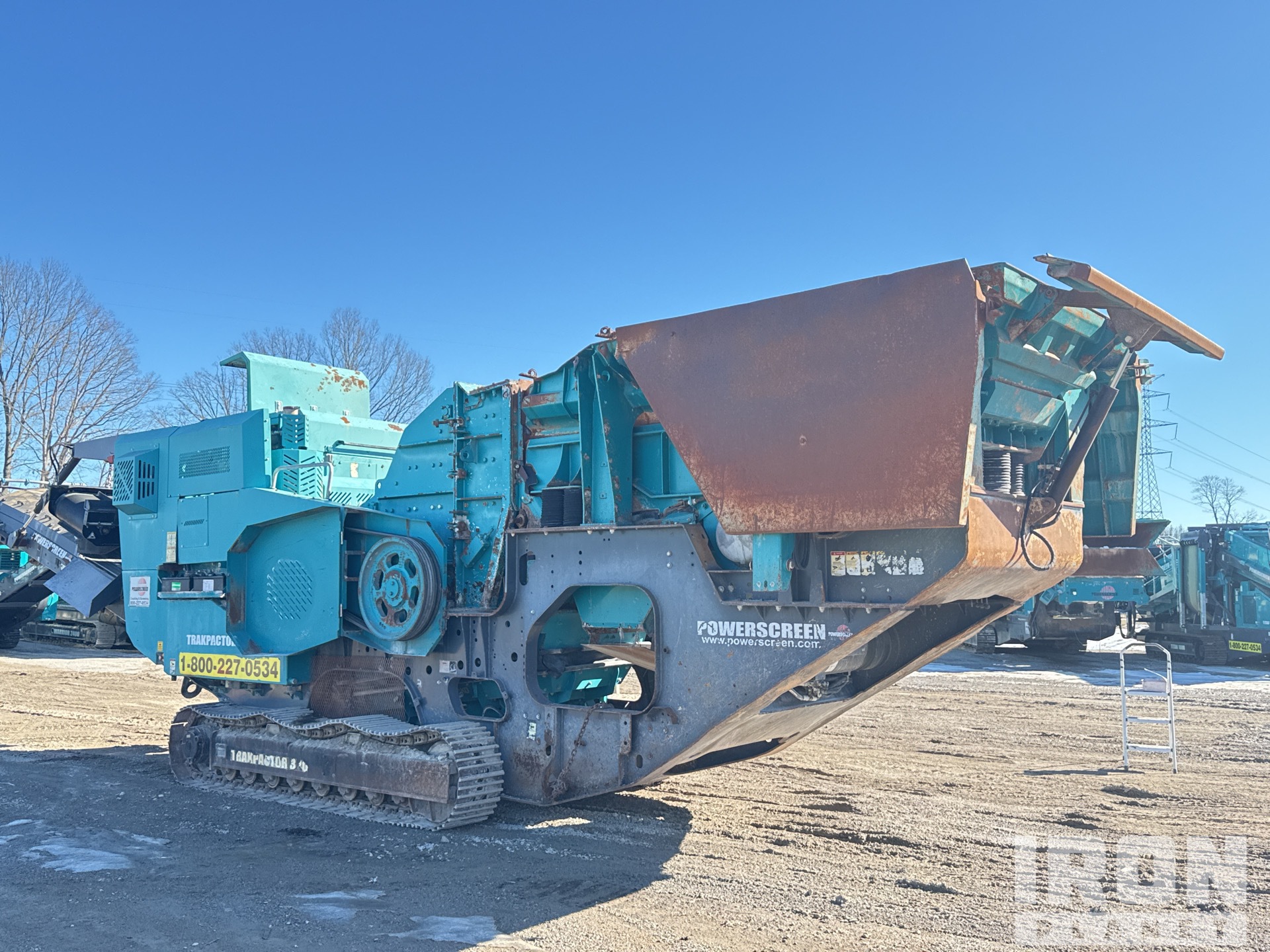

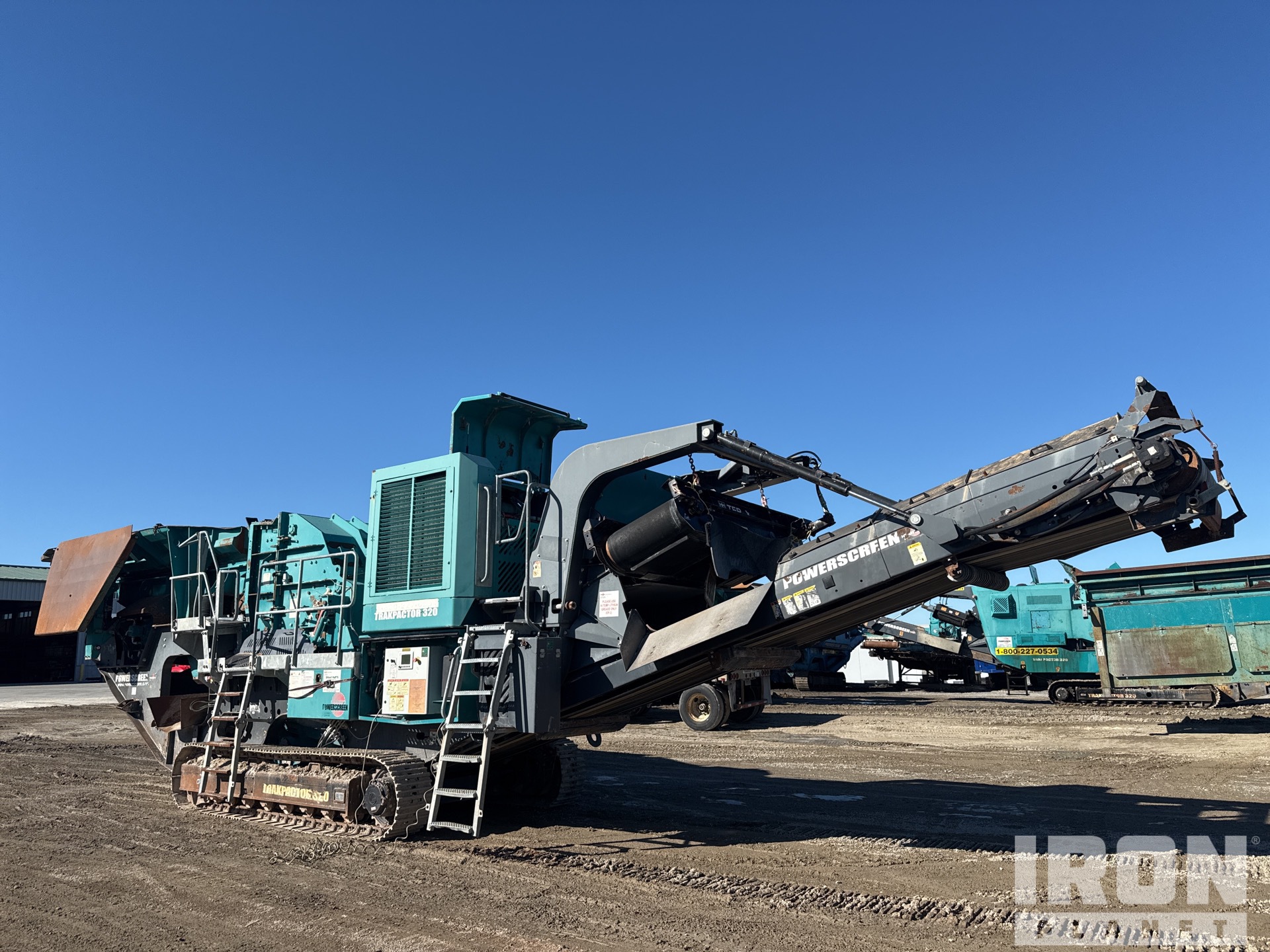

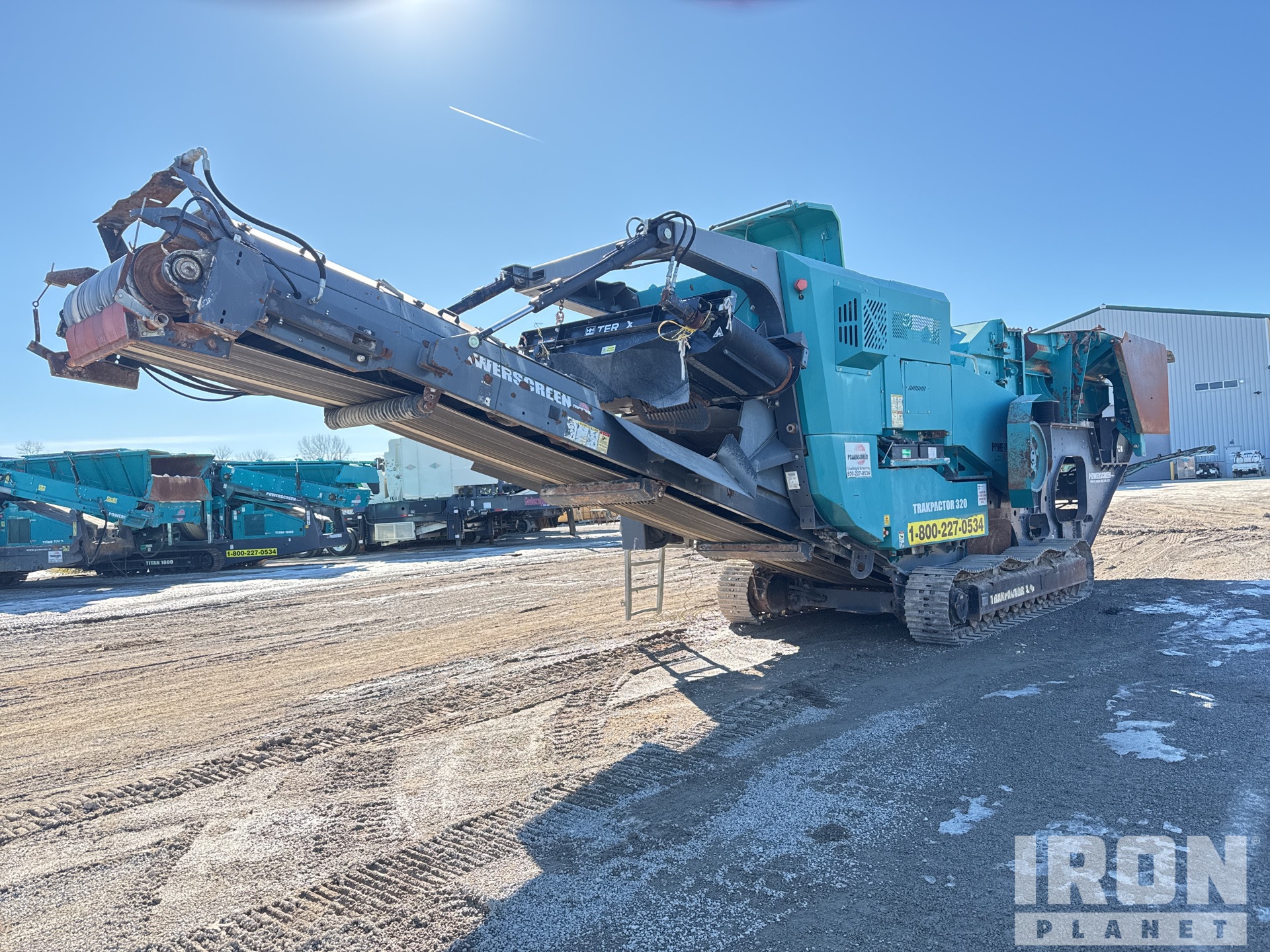

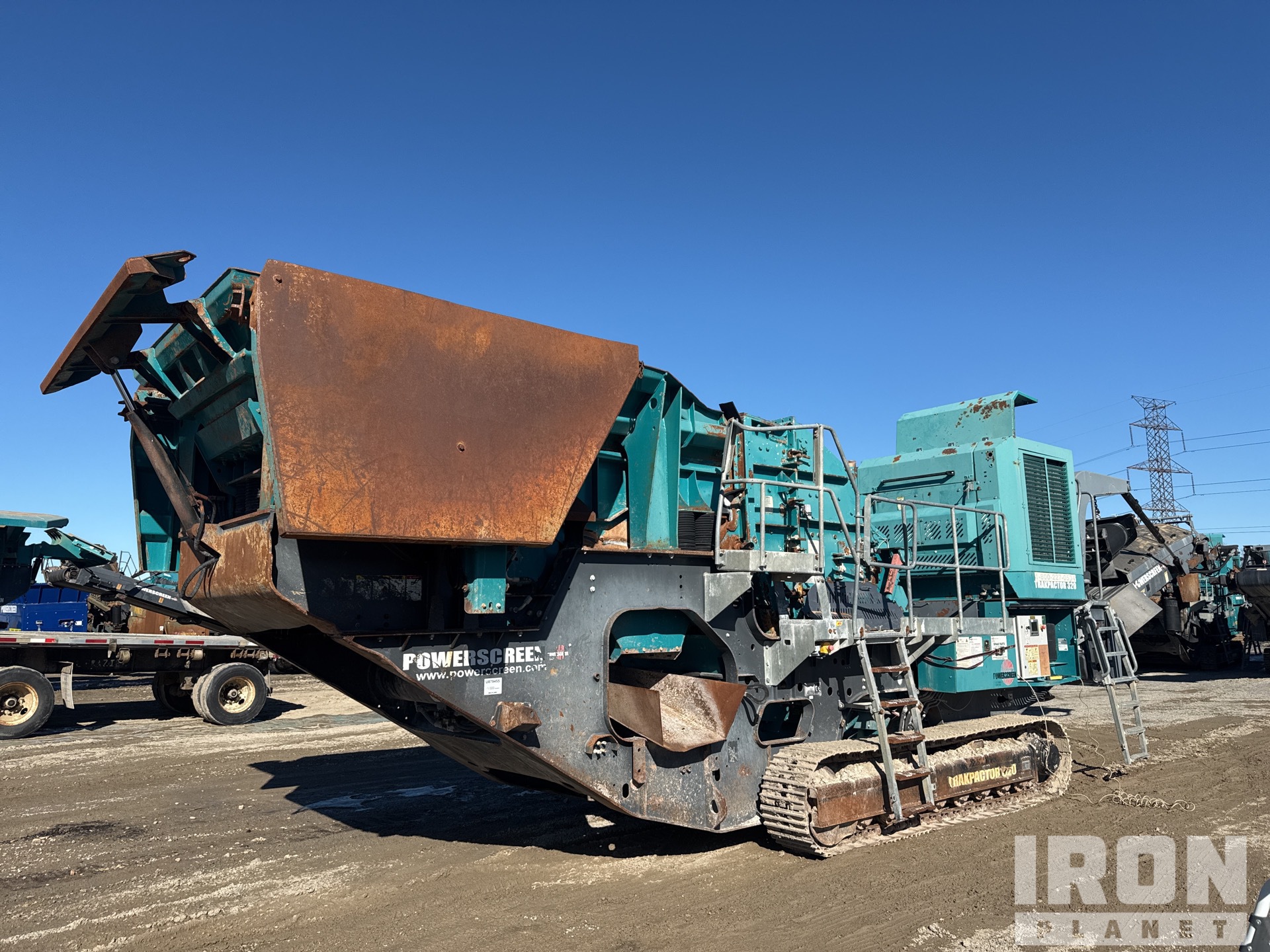

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
PIDTP320JOMF20009
CE Mark
CE Marked
Hour Meter / Odometer
5978 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Electrical
Disconnect Switch
Functional
Cables and Connections
Engine
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Power Travel Drive System
Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 13’3”, Width @ top: 6’11”
Crusher Base Frame
Crusher Chamber Frame
Crusher Drive System
Chute Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
21 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
21 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Feb 12, 2025 |
| Silicon | 3.32 PPM |
| Tin | 1.94 PPM |
| Silver | 0 PPM |
| Aluminum | 1.33 PPM |
| Chromium | 0.35 PPM |
| Lead | 1.57 PPM |
| Copper | 7.3 PPM |
| Nickel | 1.34 PPM |
| Iron | 24.64 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
