88 Photos

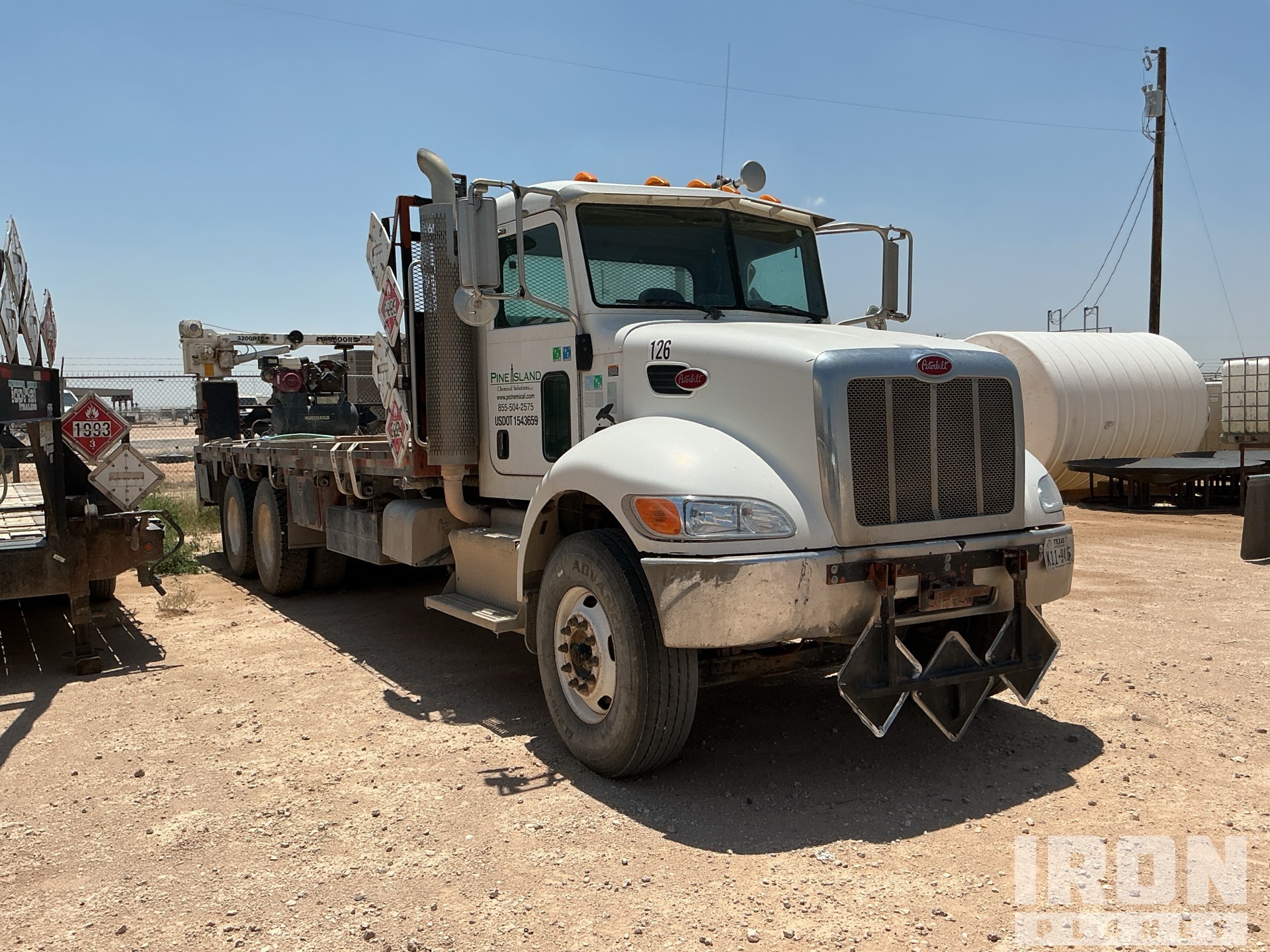

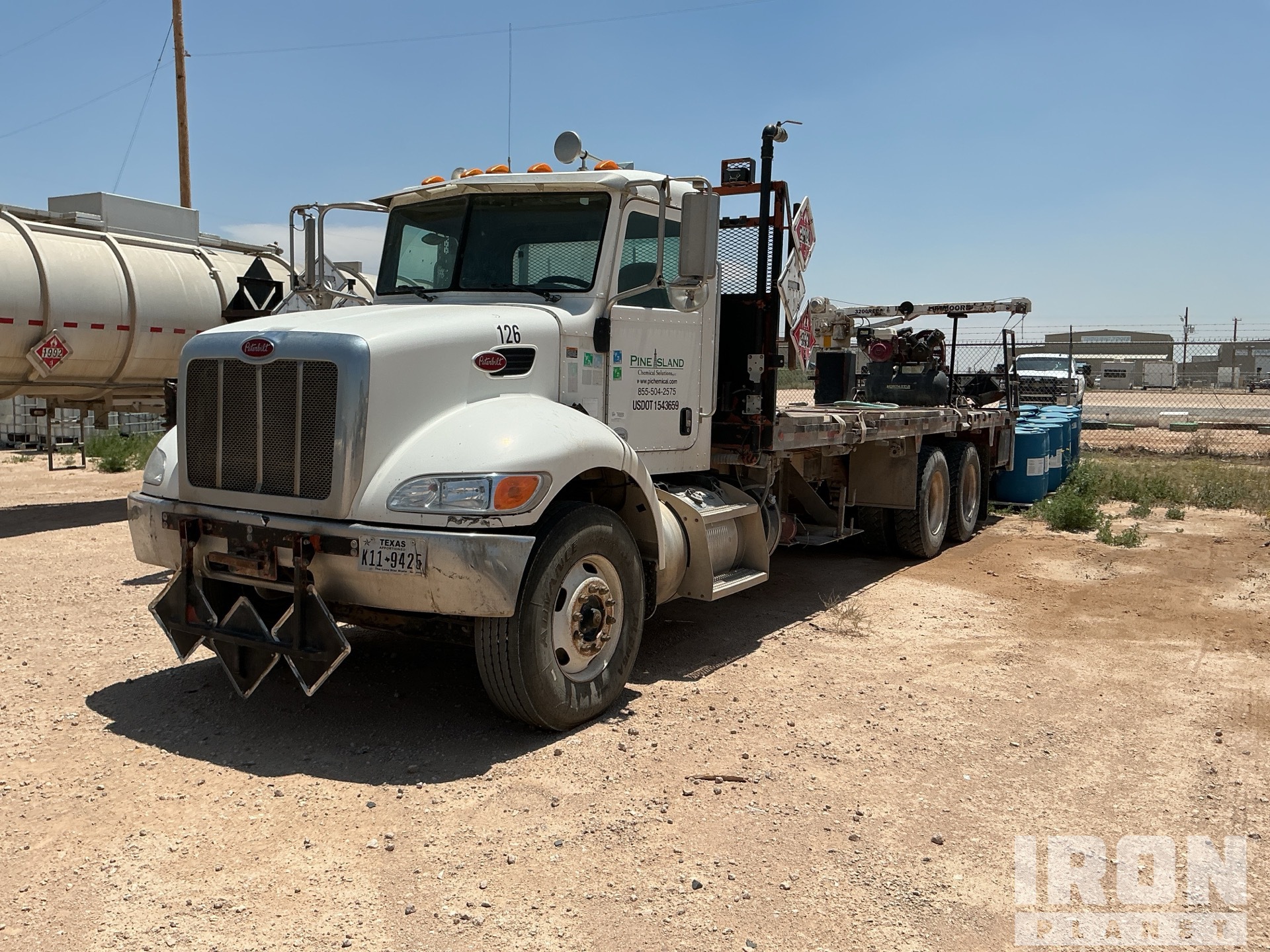

2011 Peterbilt 348 6x4 Flatbed Truck
Located
Midland, TX
Midland, TX
Usage
264,984 mi
264,984 mi
Serial number
2NP3LN9X3BM119855
2NP3LN9X3BM119855
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15307954
In yard
No
Features

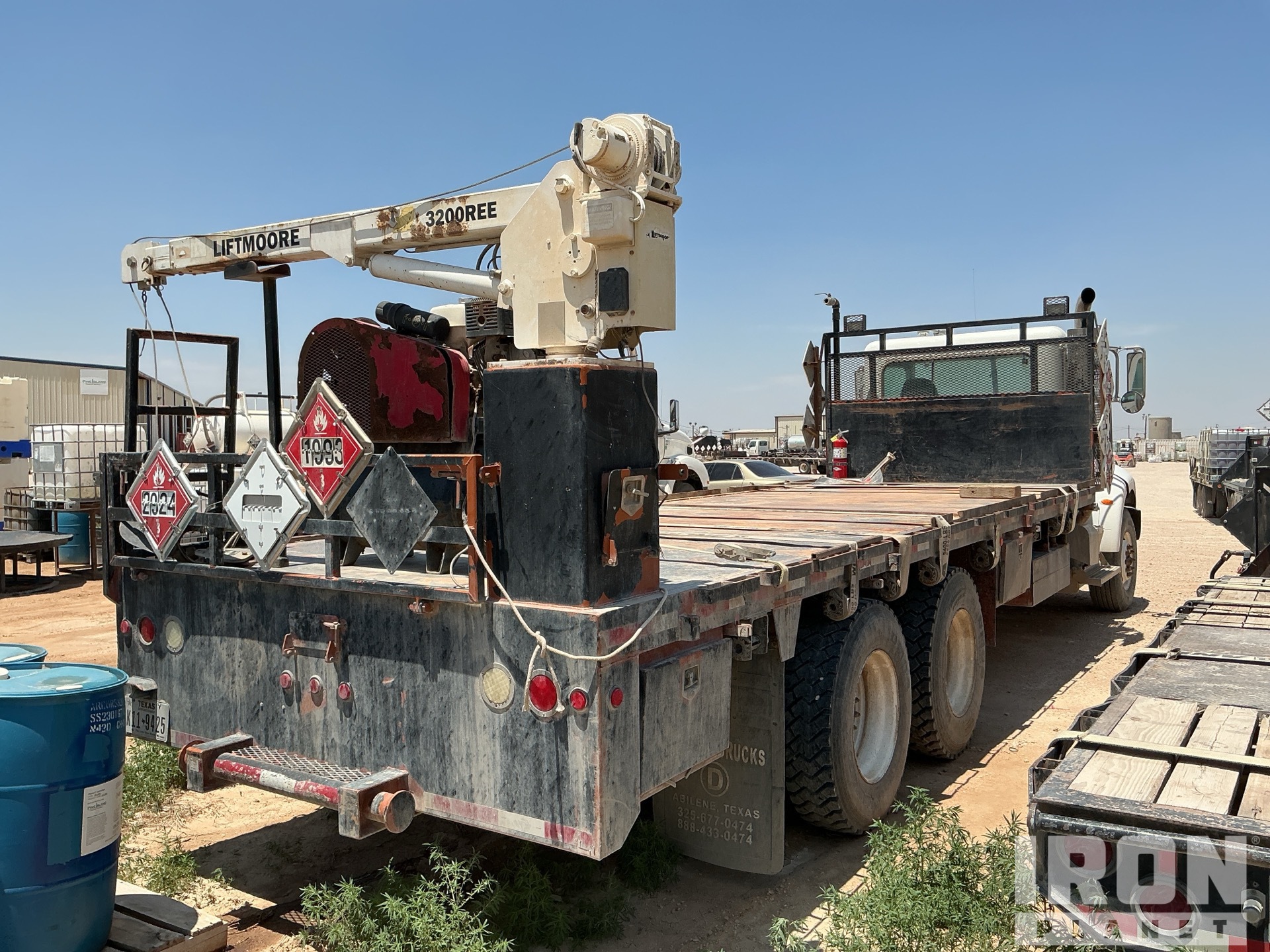

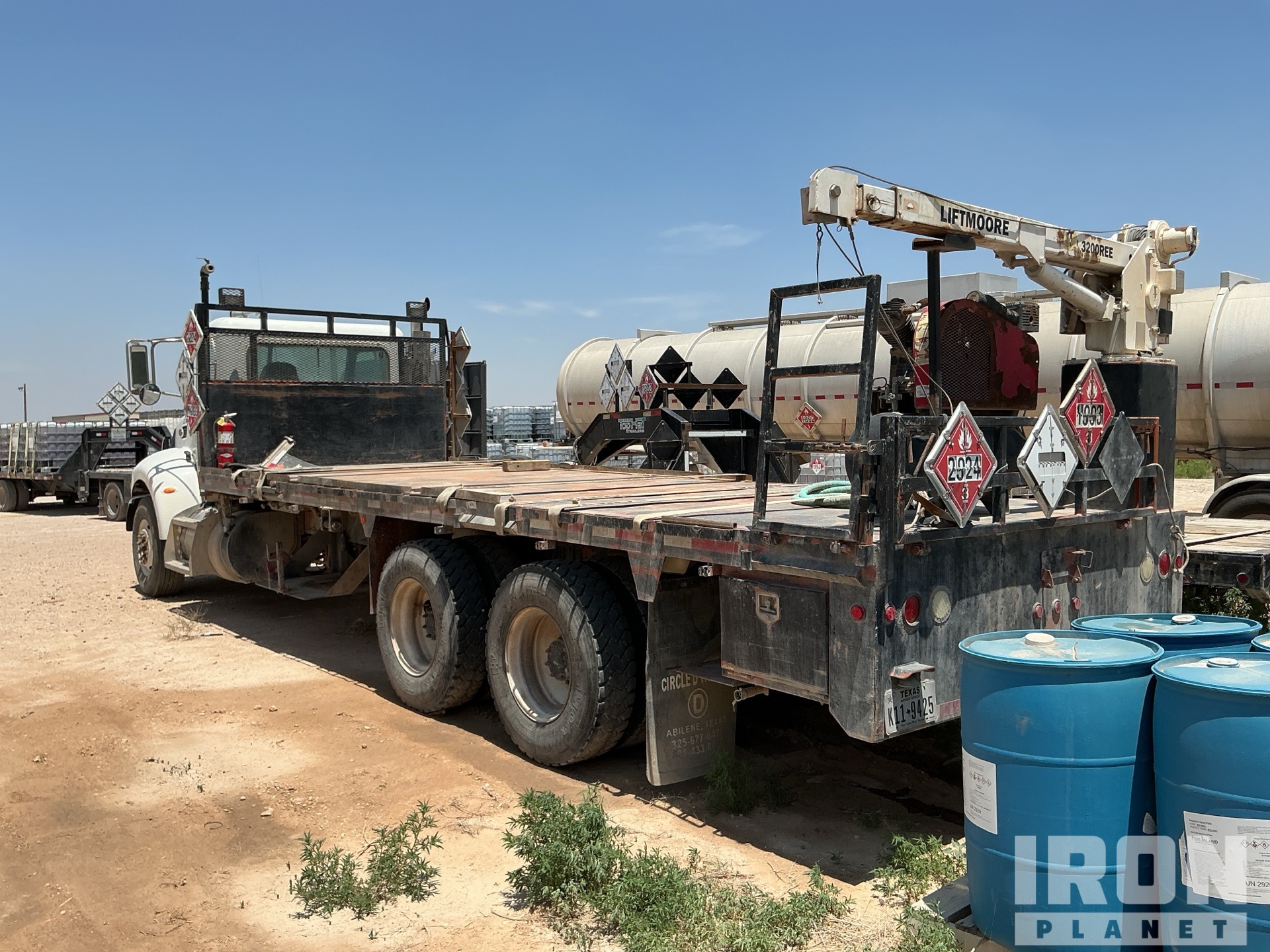

Paccar PX-8 6 Cylinder Diesel Engine, Requires Diesel Exhaust Fluid, 17644 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton Fuller Manual Transmission, 54600 lb GVWR, 315/80R22.5 Front Tires, 11R22.5 Rear Tires, Air Ride Suspension, 230 in Wheelbase, PTO, Liftmoore 3200REE 3200 lb 2 Section Electric Crane, 24 ft x 102 in Bed
General Appearance
Serial Number / VIN
2NP3LN9X3BM119855
Hour Meter / Odometer
264984 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 17/32" Steel
- Drum
- Drum
- 18/32" Steel
Rear Axle
- 18/32" Steel
- 16/32" Steel
- Drum
- Drum
- 15/32" Steel
- 27/32" Steel
Rear Axle
- 17/32" Steel
- 8/32" Steel
- Drum
- Drum
- 23/32" Steel
- 20/32" Steel
Engine
Emissions Information
No US EPA Label Present Requires Diesel Exhaust Fluid
A/C Compressor
Starter
Operational
Air Compressor
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine would crank but would not run.
Cab
Engine Hours
17644 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn inoperable
Warning Lights
Operational
Gauges
Engine Brake
Not operationally checked
PTO Control
Air engaged, Not operationally checked
ECM Miles
Unable to get ECM reading
Air Conditioner
Not operationally checked
Heater
Not operationally checked
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Underbody
Steering Components
Steer Axle
Transmission
Power Take Off
PTO Pump
Not operationally checked
Frame Condition
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain could not be operationally checked.
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Not operationally checked
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The brakes were not operationally checked
Configuration
Flat Bed Body
Support Frame
