107 Photos

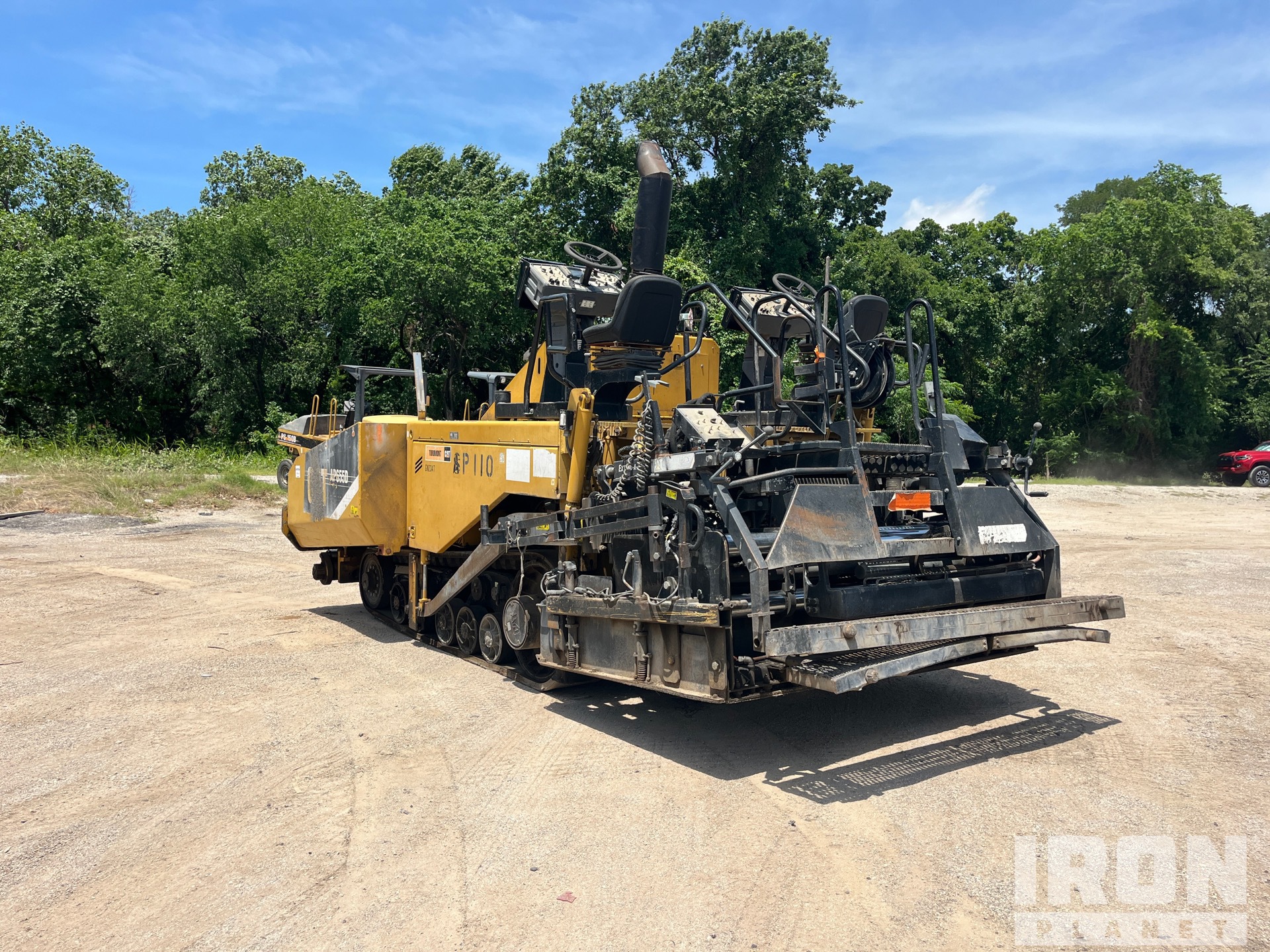

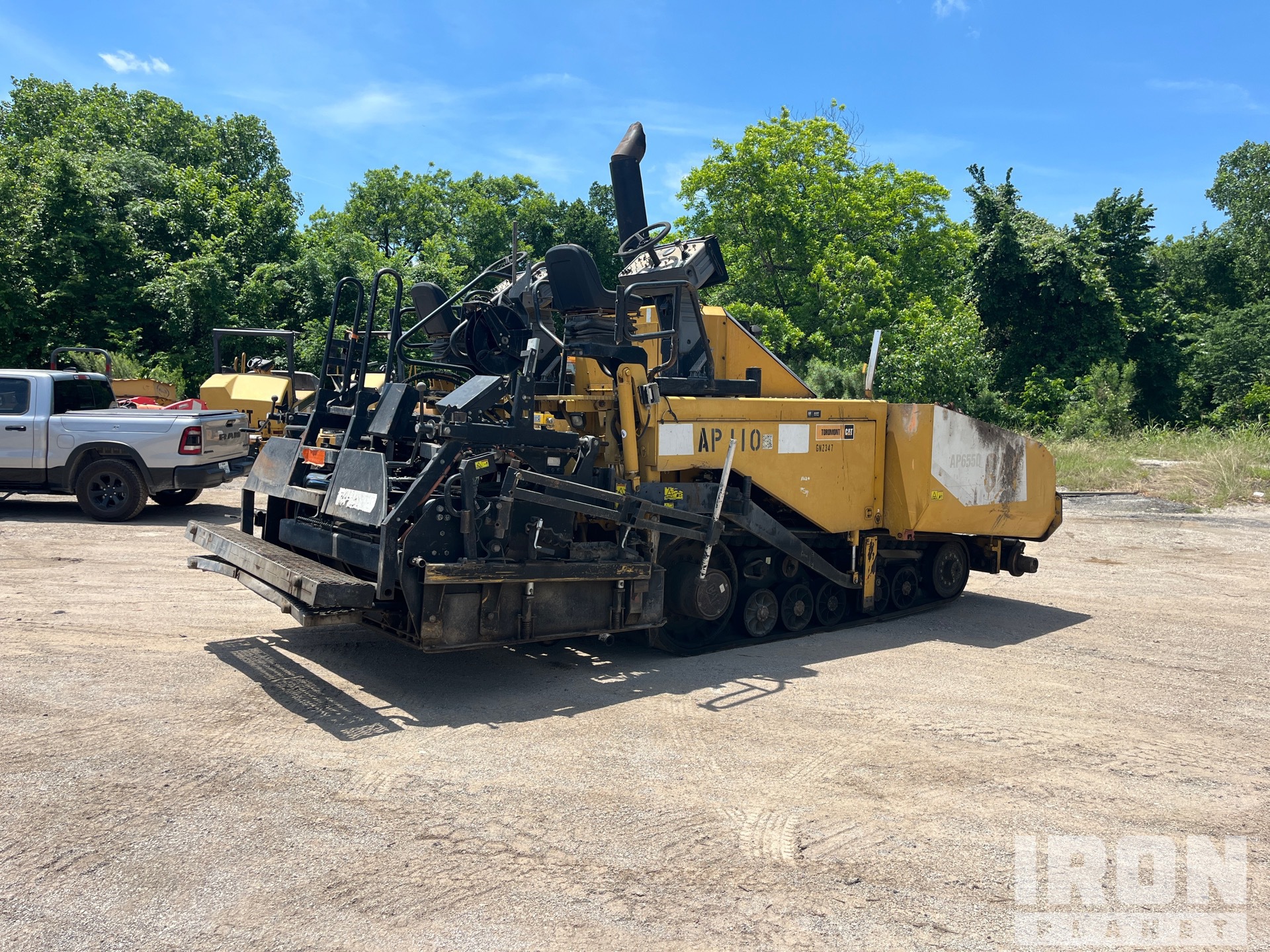

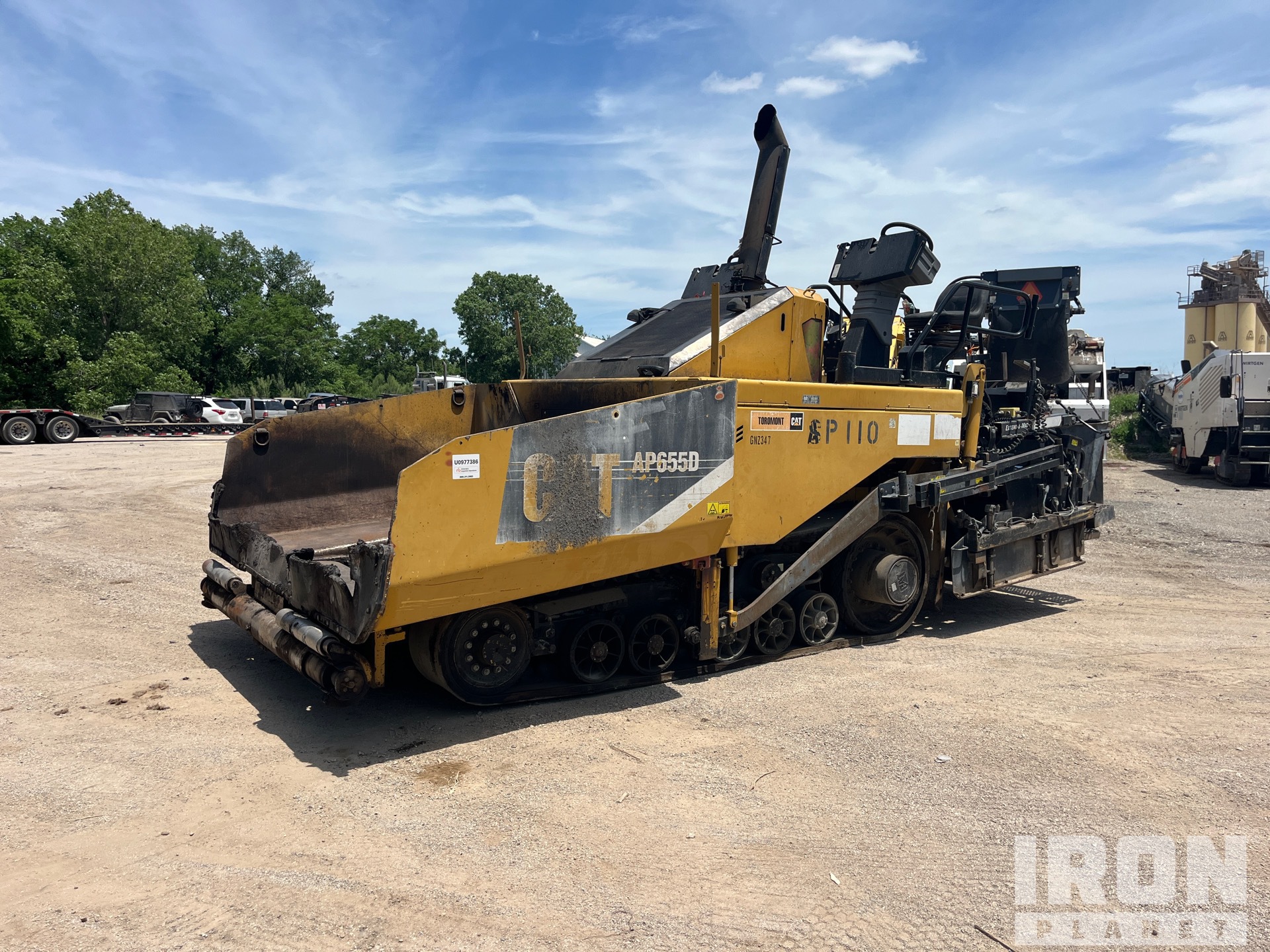

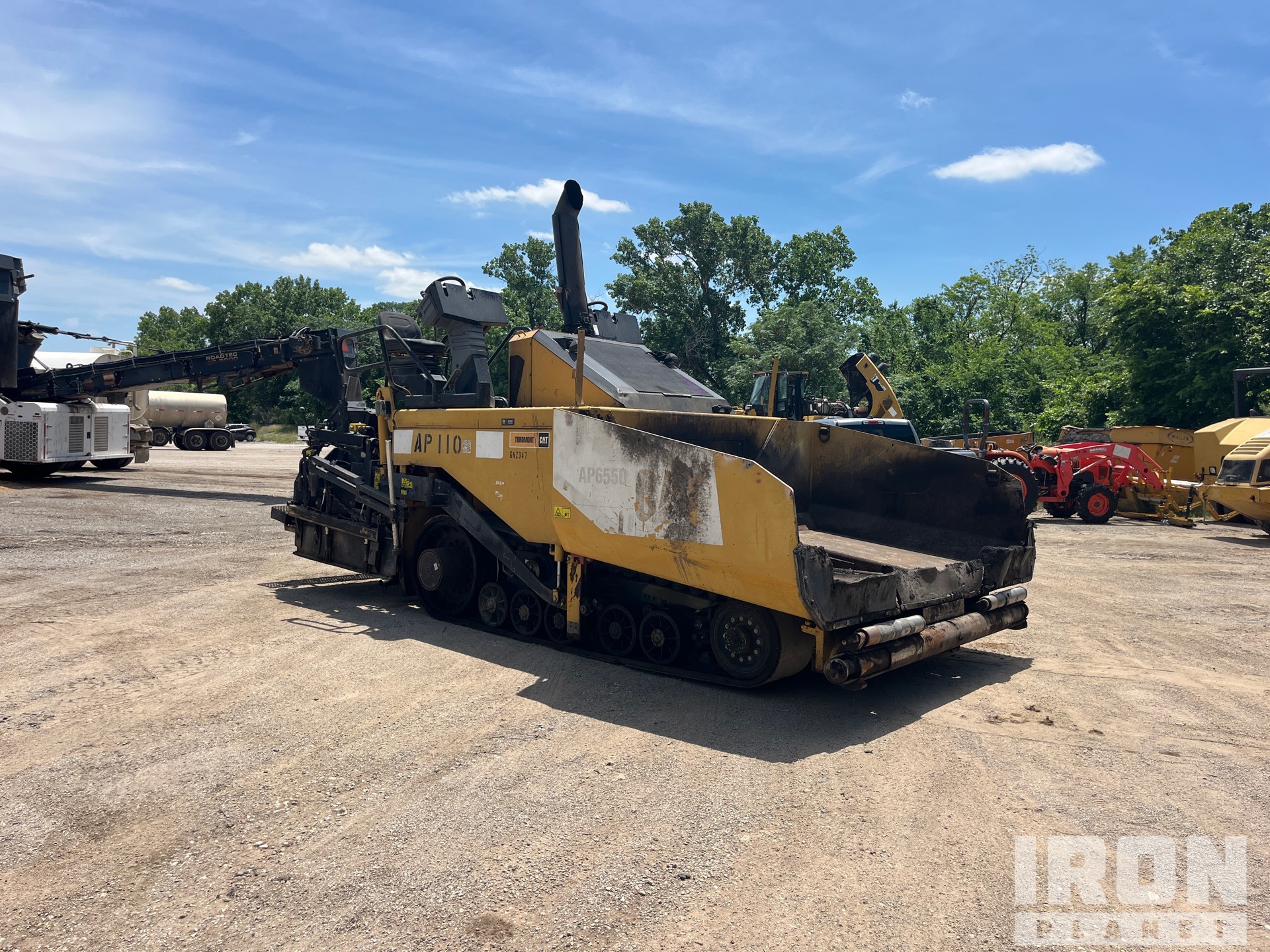

2010 Cat AP-655D Track Asphalt Paver
Located
Euless, TX
Euless, TX
Usage
15,613 hrs
15,613 hrs
Serial number
CATAP655CGNZ00347
CATAP655CGNZ00347
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15161576
In yard
No
Features
Dual Controls, Cat AS3251C Electric Heated 8 ft - 20 ft 6 in Screed, On Board Generator, 16 in Rubber Tracks
General Appearance
Serial Number / VIN
CATAP655CGNZ00347
CE Mark
No CE mark found
Hour Meter / Odometer
15613 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Not operational
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Hydraulic Controls
Steering Control
Drivetrain Controls
Oil Pressure
No oil pressure indicator
Warning Lights
Operational, Dead batteries
Screed Control Switches
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted. The batteries appear to be dead.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting. NOTE: When pulling it out for the corners photos, it shut down and would not restart.
Drivetrain
Left Drive Motor
Right Drive Motor
Left Final Drive
Right Final Drive
Drive Chains/Sprockets
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hydraulic Motors
Hoses (Hydraulics)
Hopper Wing Cylinders
Screed Tow Point Cylinders
Screed Lift Cylinders
Screed Extension Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Screed Serial Number
Serial Number: JJN00283
Screed Tow Arms
Screed Bottom Plate
Hopper Wings
Metering Gates
Powered
Auger/ Screw Condition
Feed Conveyors
Conveyor Drive Chains and Sprockets
Push Rollers
Truck Hitch
Not operationally checked
Screed Heaters
Not operationally checked
Screed Slope Adjustment
Powered adjustment, Operational
Screed Crown Adjustment
Powered adjustment, Operational
Screed Tow Point Adjustment
Powered adjustment, Operational
Mat Thickness Adjusters
Not operationally checked
Extension Tubes
End Gates
Spray Down System
Not operationally checked
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 07, 2026 |
| Silicon | 0.68 PPM |
| Tin | 0.8 PPM |
| Silver | 0 PPM |
| Aluminum | 0.44 PPM |
| Chromium | 0.12 PPM |
| Lead | 0.9 PPM |
| Copper | 2.7 PPM |
| Nickel | 0.68 PPM |
| Iron | 10.79 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
