82 Photos
1978 Cat D8K Crawler Dozer
Located
Plummer, MN
Plummer, MN
Usage
7,425 hrs
7,425 hrs
Serial number
77V9646
77V9646
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15380860
In yard
No
Features
Enclosed Cab, 156 in Wide Semi-U Blade w/ Single Tilt, Drawbar, 28 in Single Grouser Track Shoes

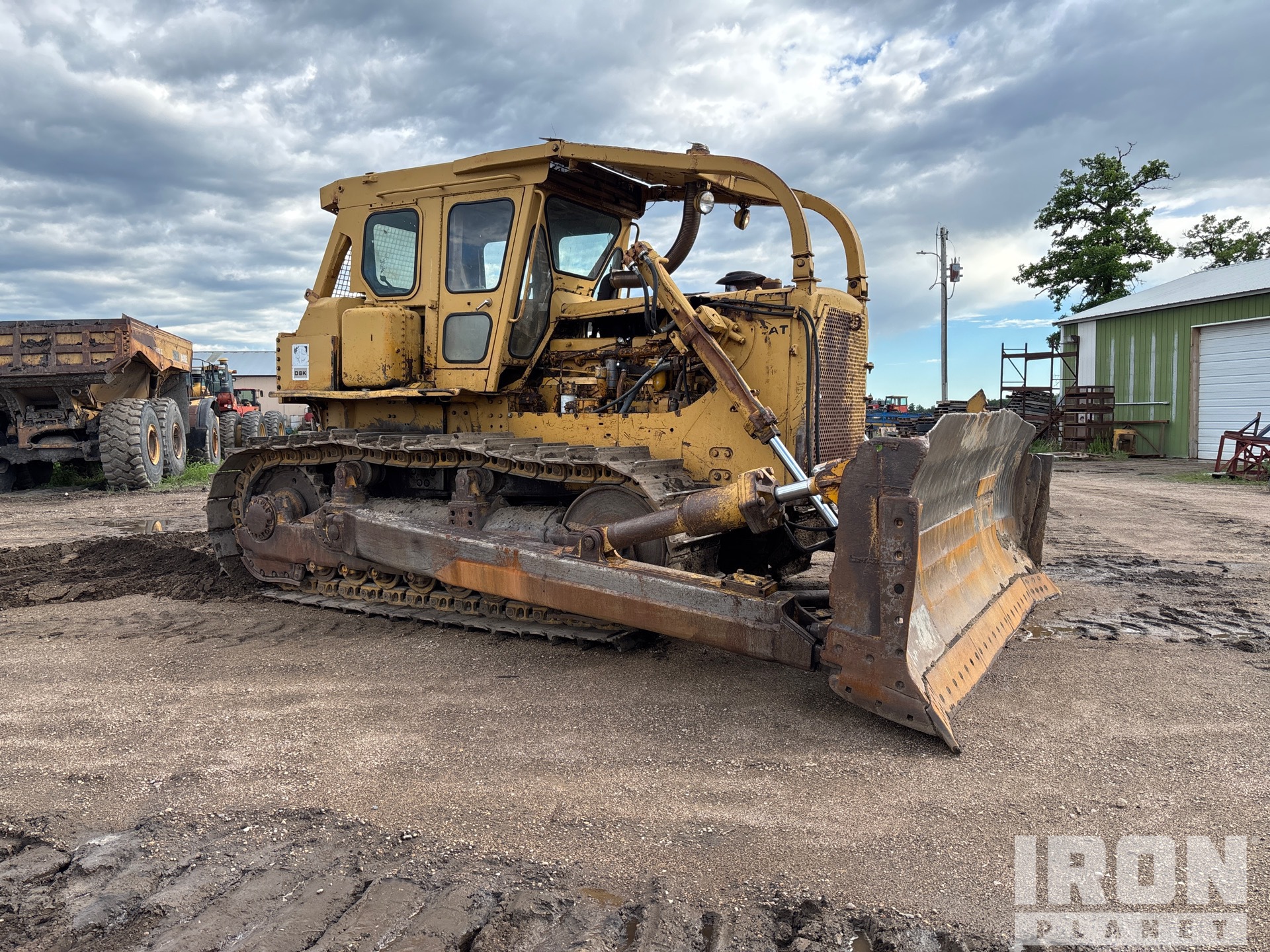

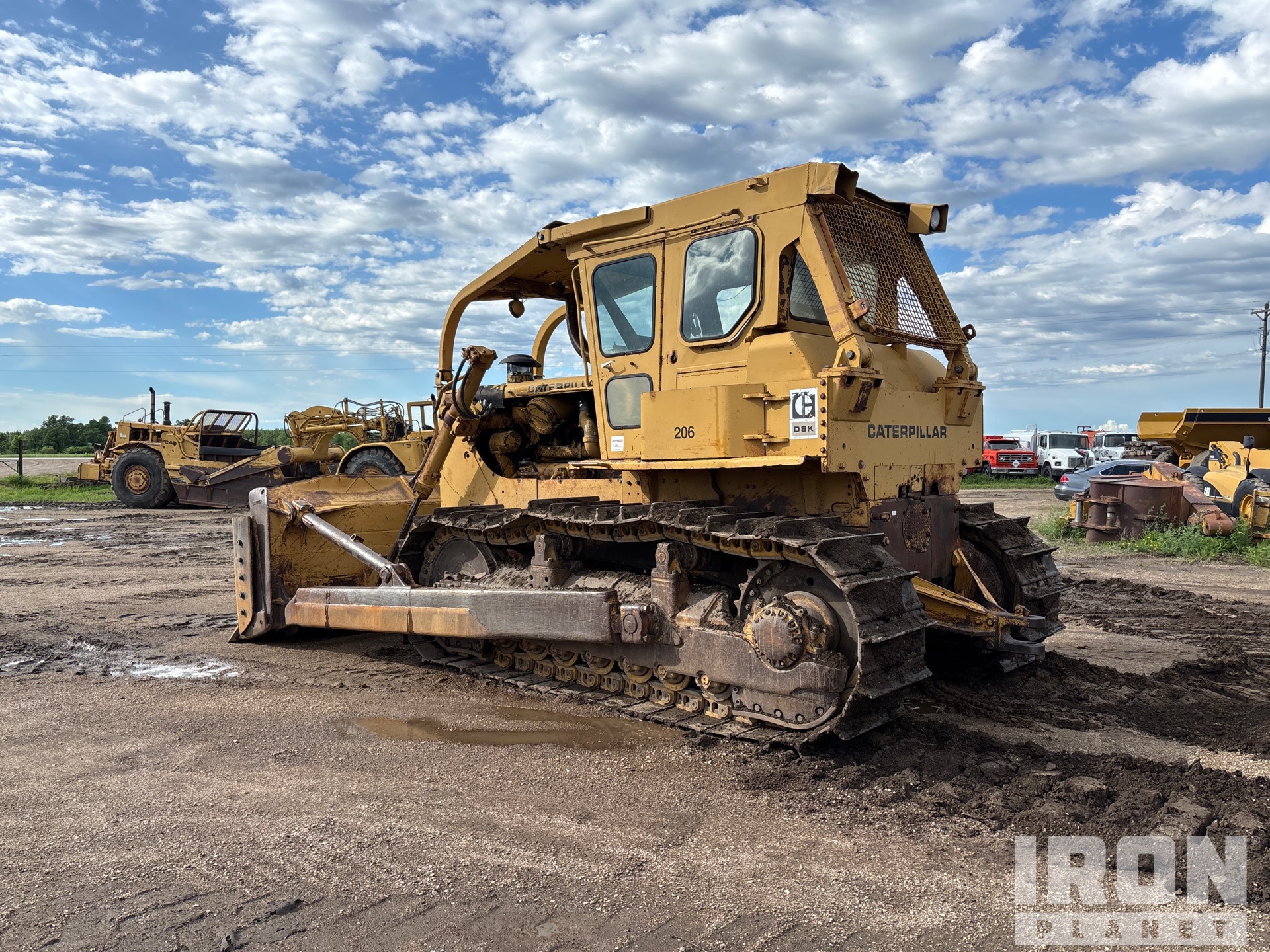

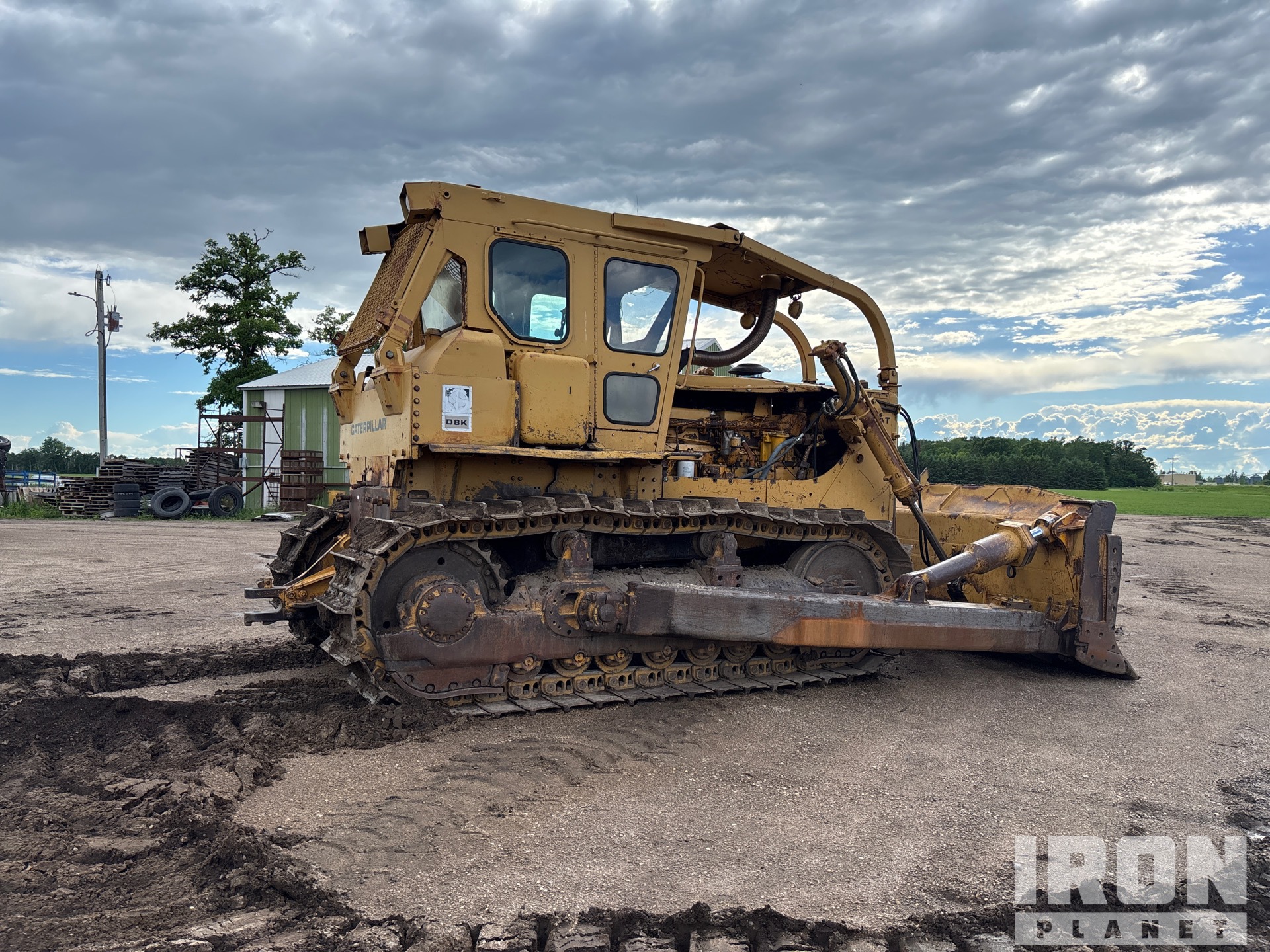

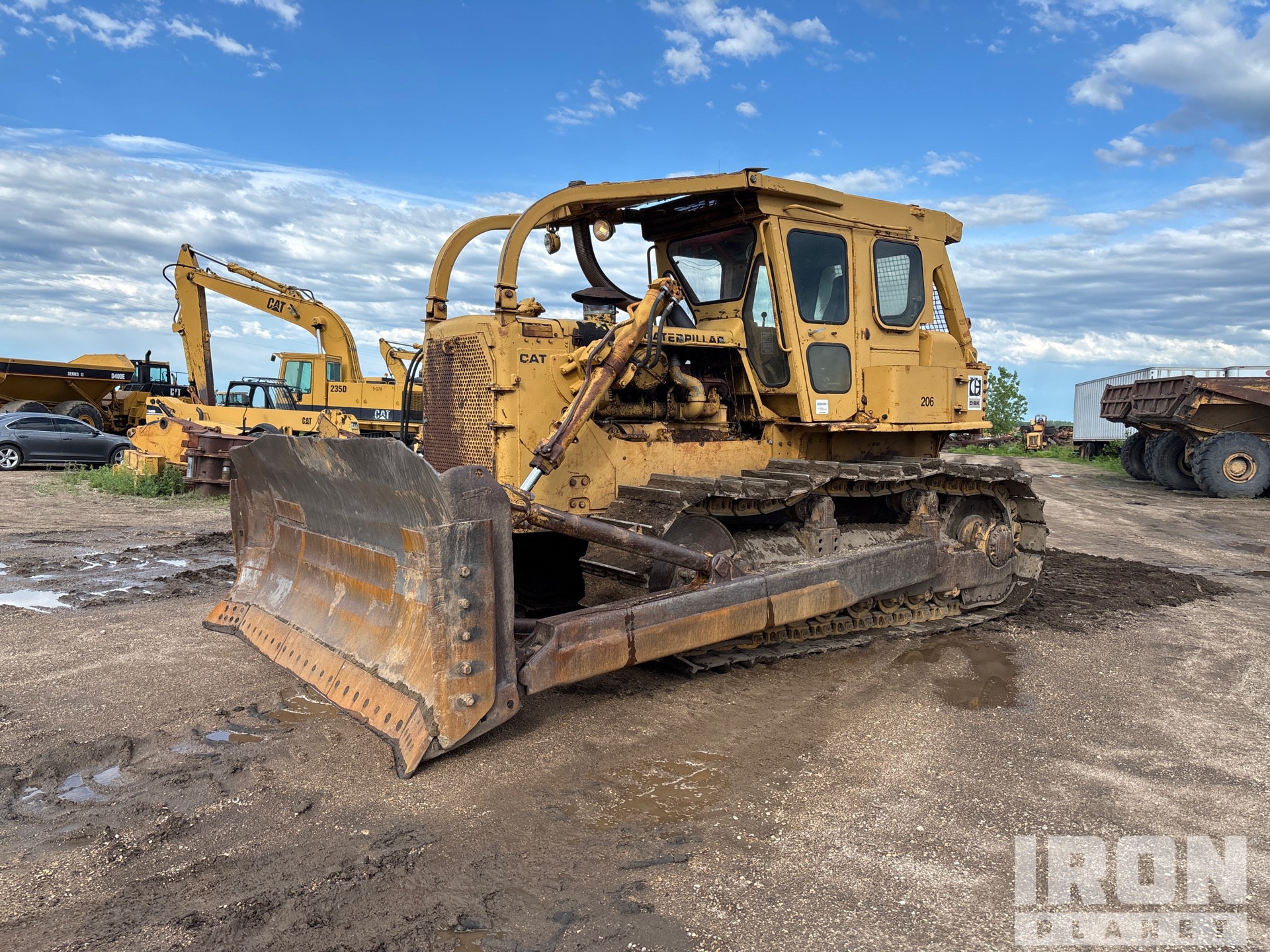

General Appearance
Serial Number / VIN
77V9646
Hour Meter / Odometer
7425 hrs, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Steps/Ladders
Glass
Exterior Lights
Some not operational, Work lights are not operational
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Front of engine, Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational, Dripping leak
Service Brakes
Final Drives
Dripping Leak
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Blade Lift Cylinders
Dripping leak on the left cylinder, Dripping leak on the right cylinder
Blade Tilt Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
Weld repair
Blade Cutting Edge Condition
Push Arm/C-Frame Condition
Push Arm Pivot/C-FrameTrunnions
Heavy movement
Tilt Linkage Pins and Bushings
Heavy movement
Blade Trunnions/bushings
Heavy movement
Limited Function Check (dozer)
The main components were operational in a limited check.
Frame Condition
Belly Pans
Signs of oil leaks
Specialty
Undercarriage
Pivot Shafts
Equalizer Bar Pivot Points
Left Roller Frame
Left Grouser Height
90 mm
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Front Idler
Left Sprocket
Right Grouser Height
90 mm
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Front Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jun 29, 2026 |
| Silicon | 0.11 PPM |
| Tin | 1.45 PPM |
| Silver | 0.57 PPM |
| Aluminum | 0.72 PPM |
| Chromium | 2.78 PPM |
| Lead | 2.49 PPM |
| Copper | 24.13 PPM |
| Nickel | 0.21 PPM |
| Iron | 45.11 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
